What Is a Speaker Crossover?

A speaker crossover is an internal circuit that divides an audio signal into separate frequency ranges and directs each range to the appropriate speaker driver. In essence, it’s the traffic director for sound inside your speaker. Most high-fidelity speakers use multiple drivers (woofers for bass, tweeters for treble, and sometimes midrange drivers) because no single driver can perfectly reproduce the entire 20 Hz–20 kHz audible spectrum on its own. For example, a 2-way speaker uses a woofer for low frequencies and a tweeter for high frequencies, while a 3-way speaker adds a midrange driver to handle the middle frequencies. The crossover network makes this possible by splitting the full-range audio into dedicated bands: low tones to the woofer, midrange content to the mid driver, and high notes to the tweeter.

Physically, the crossover is usually hidden on a circuit board inside the speaker cabinet (hence the “hidden heart” nickname). A basic passive crossover circuit is built from just a few components - inductors (coils of wire), capacitors, and resistors – arranged in a specific configuration. These parts act as frequency filters: inductors allow low frequencies to pass but block highs, while capacitors do the opposite (passing the high frequencies and blocking the lows). Resistors are often added to fine-tune the output level of certain drivers (for instance, taming a tweeter that might be louder than the woofer). Together, this network splits the incoming amplifier signal and sends each portion of the audio spectrum to the driver best suited for it. Because this all happens within the speaker cabinet, you don’t see the crossover at work - but it’s constantly managing the signal behind the scenes.

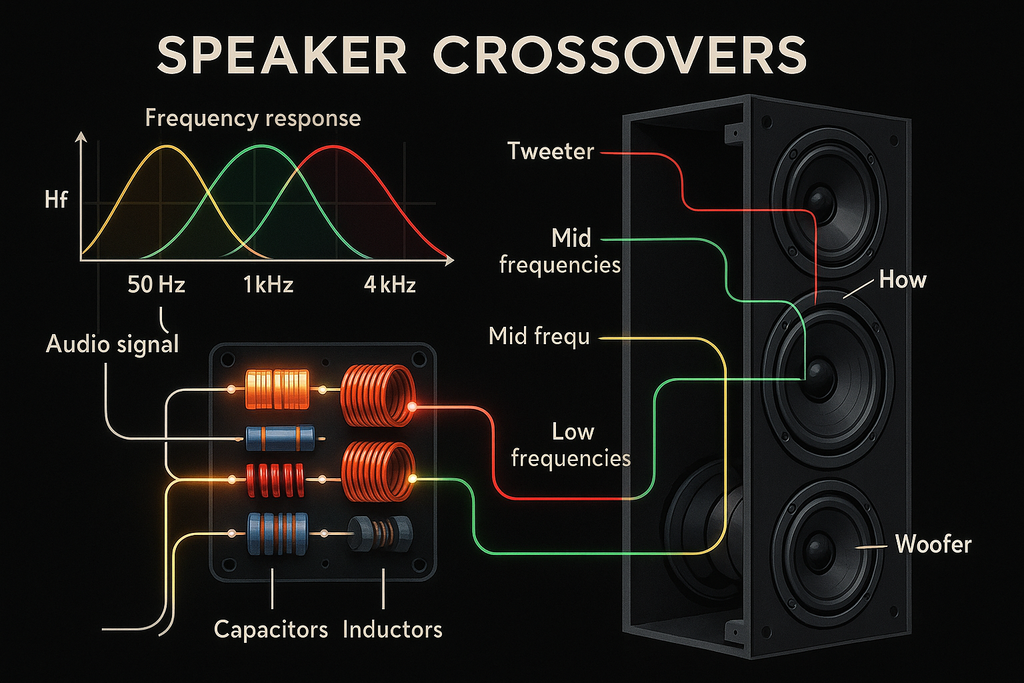

An internal look at a high-fidelity loudspeaker reveals its crossover network (the circuit board with coils, capacitors, and other components). This “hidden heart” filters the audio signal by frequency, sending bass tones to the woofer (large driver) and treble tones to the tweeter (small driver). By doing so, the crossover ensures each driver only reproduces its intended range, preventing distortion and allowing multiple drivers to work together seamlessly.

How Does a Crossover Work?

The crossover uses electrical filters to separate the frequency bands. Each filter has a cutoff point - known as the crossover frequency - where it transitions the output from one driver to another. For instance, imagine a two-way speaker with a crossover frequency around 2,500 Hz: frequencies below that point are gradually routed to the woofer, and frequencies above it are sent to the tweeter. The handoff isn’t an abrupt on/off switch; instead, the crossover introduces a slope (roll-off) so that the woofer and tweeter both play a small range around 2,500 Hz at reduced levels. This overlap creates a smooth transition, ensuring you don’t hear a gap or a sudden change where one driver stops playing and another starts. The result is a more uniform response through the crossover region - the speaker sounds cohesive across its entire range, with no obvious “hole” or spike in the sound. The precise crossover frequency and slope are carefully chosen based on the drivers’ capabilities (each driver is asked to play only the frequencies it handles best) and the speaker’s design.

Passive vs. Active Crossover Designs

Passive crossovers are by far the most common in home audio speakers. A passive crossover is the type we’ve been discussing - it’s built into the speaker and connected after the amplifier output. The amplifier sends a full-range, high-level signal into the speaker, and the passive network of inductors, capacitors, and resistors splits that signal among the drivers. Passive crossovers require no external power and are fixed in design; you simply hook up your speakers to your amp, and the internal circuitry does the rest. Virtually all passive HiFi speakers (including those showcased at SoundTrails) are engineered with custom crossover networks optimized for their specific drivers and cabinet.

Active crossovers, on the other hand, divide the audio signal before power amplification. An active crossover is usually an electronic unit (it can be analog or digital/DSP-based) that takes a low-level audio signal and splits it into multiple frequency-banded outputs. Each of those outputs then feeds its own power amplifier channel, which in turn drives each speaker driver directly. For example, in an active two-way setup, the active crossover might output a “low-frequency band” signal to feed a dedicated amplifier for the woofer, and a “high-frequency band” signal to a separate amp for the tweeter. Active crossovers allow for greater control and steeper filtering (and often offer adjustability), but they require more complex setups (multiple amplifiers or specialized powered speakers). They are commonly used in professional audio, studio monitors, subwoofer systems, and some high-end home setups. Many audiophiles stick with traditional passive crossover speakers for simplicity, but active designs are the hidden engine behind many advanced speaker systems (for instance, some high-end powered speakers incorporate digital active crossovers to achieve precision tuning).

Why Crossovers Matter in Speaker Design

The design of the crossover is absolutely critical to how a speaker performs. A well-chosen crossover allows each driver to operate within its optimal range, which means lower distortion and better overall fidelity. Conversely, a poorly designed crossover can make even excellent drivers sound mediocre. Speaker engineers devote a great deal of time to crossover design because it must mesh the drivers’ outputs into a single, balanced sound. The crossover not only divides frequencies but also often shapes the speaker’s tonal balance and ensures the drivers are in phase (aligned in time), so their sound waves reinforce rather than cancel each other around the crossover region. In short, the crossover plays a huge role in determining a speaker’s sonic character and accuracy.

In fact, if a crossover is designed incorrectly or with cheap components, several problems can occur:

• Frequency Overlap or Gaps: Improper crossover settings might cause two drivers to reproduce the same frequency range, resulting in a bloated or peaky response, or leave a gap where no driver covers a portion of the spectrum. The speaker would then sound uneven, with some notes far louder or softer than intended.
• Distortion and Driver Strain: Without the crossover filtering out unwanted frequencies, drivers can be forced to play outside their comfort zone. For example, asking a tweeter to handle bass frequencies will quickly cause distortion or even damage. A woofer trying to reproduce very high frequencies will beam and breakup, hurting clarity. A good crossover prevents this by ensuring each driver only gets the content it can cleanly reproduce.
• Imbalanced Sound: Simplistic or cost-cutting crossover designs often yield an uneven frequency response. You might hear certain frequency bands emphasized or recessed, meaning the speaker isn’t faithfully reproducing the input signal. This imbalance can make music sound “off” – perhaps too harsh in the treble or lacking midrange warmth – all because the crossover isn’t properly blending the drivers.
• Poor Imaging and Soundstage: The crossover affects how well multiple drivers blend into a single point source. If the drivers don’t integrate coherently, you may perceive the sound as coming from separate woofer and tweeter locations rather than one unified source. This harms the imaging (the precise placement of voices and instruments in space) and narrows the soundstage (the sense of width and depth in the audio). Phase misalignment from a bad crossover can blur the stereo image and make the speaker sound less immersive.

Speaker designers avoid these pitfalls by carefully engineering the crossover network. They select high-quality components and fine-tune the crossover frequencies and slopes through extensive testing and listening. The crossover design is often iterated multiple times to achieve a smooth blend between drivers. Additionally, the crossover provides a form of protection: it keeps low bass out of the fragile tweeter, and excessive treble out of the woofer, improving reliability and power handling. In summary, the crossover allows each driver to play to its strengths, and a well-designed one ensures the whole speaker system sounds like a cohesive, accurate source of music rather than a collection of separate drivers.

Impact on Sound Quality

For the listener, the quality of a speaker’s crossover is apparent in the sound quality. A superb crossover design results in a speaker that sounds natural and transparent. When you listen to a well-integrated speaker, you shouldn’t be able to tell where the woofer hands off to the tweeter – the transition is seamless. The bass, midrange, and treble all arrive in sync, creating the impression of a single full-range source. This coherence contributes to a wide soundstage and precise imaging, meaning instruments and vocals are well-defined and correctly positioned as they were in the recording. Music has a clarity and balance that lets you pick out fine details without any part of the audio spectrum jumping out harshly.

By contrast, if a crossover is subpar, you might notice the sound is less cohesive. Perhaps certain frequencies will stick out (a honky midrange or sibilant high-end), or the stereo image might feel fuzzy and indistinct. You may hear the tweeter calling attention to itself separately from the woofer, which is a sign the drivers aren’t blending properly. These issues can make listening fatiguing. High-quality crossover components and design help avoid such problems by preserving the purity of the audio signal. Many high-end speaker manufacturers use expensive, tight-tolerance capacitors and inductors in their crossovers specifically to improve transient response and reduce distortion, thereby cleaning up the sound. The end goal is that the crossover becomes sonically “invisible” – you simply hear a beautiful, balanced reproduction of the music, without being aware of the crossover’s operation at all. In a well-designed speaker, even at high volume levels the sound remains composed and distortion-free, which is a testament to a crossover doing its job effectively.

Crossovers in High-End HiFi Speakers

In the realm of high-end audio, crossover design is often treated as a fine art. Premium loudspeaker brands such as McIntosh, Sonus Faber, Fyne Audio (and many more which you can experience at SoundTrails) invest heavily in bespoke crossover networks for their products. These brands understand that the crossover is integral to achieving a signature sound. High-end speakers frequently utilize elaborate crossover circuits with high-grade components - for example, polypropelene film capacitors, air-core or oversized inductors, and precision resistors – chosen for their superior electrical characteristics and low signal loss. The crossovers might be hand-assembled or tuned by ear in the final design stages to perfect the speaker’s sonic balance. This attention to detail yields speakers that exhibit exceptional coherence across all frequencies: the bass flows into the mids and highs effortlessly, with no audible discontinuities.

Advanced crossover techniques are also a hallmark of high-end speakers. Some designs use higher-order filters (steep slopes) to tightly control which driver handles what frequencies, while others may use simpler filters chosen for their phase behavior to preserve a natural sound. There are trade-offs either way, and the designers choose what best complements their drivers and house sound. Many audiophile speakers provide dual binding posts for bi-wiring or bi-amping, effectively splitting the low-frequency and high-frequency sections of the crossover. This allows passionate enthusiasts to drive the woofers and tweeters with separate amplifier channels if they wish, potentially improving control and reducing intermodulation between frequency bands. Even if you use a single amplifier, the presence of bi-wire terminals is a clue that the crossover itself is segmented into low and high parts – another example of thoughtful design in high-end models.

Ultimately, all the exotic components and complex schematics serve one purpose: to make the listening experience as immersive and accurate as possible. The difference is something you can hear. High-end speakers with expertly crafted crossovers tend to present music with a certain effortlessness and spatial realism, even on challenging material. It’s no coincidence that audiophiles describe their favorite speakers with terms like “holographic imaging,” “smooth integration,” or “balanced response” – these are exactly the qualities a top-tier crossover helps to deliver.

Conclusion: The Hidden Heart of Your Speakers

It’s clear that the crossover network truly is the hidden heart of a loudspeaker. Tucked away inside the cabinet, it works quietly to ensure each driver blends into one cohesive voice. When you next audition a pair of quality hi-fi speakers – be it a bookshelf model or towering floor-stander – take a moment to appreciate the engineering behind the scenes. The rich, detailed sound that captivates you is a result not just of excellent drivers, but also of an excellent crossover making everything gel together.
