WiiM Ultra Networked Streamer

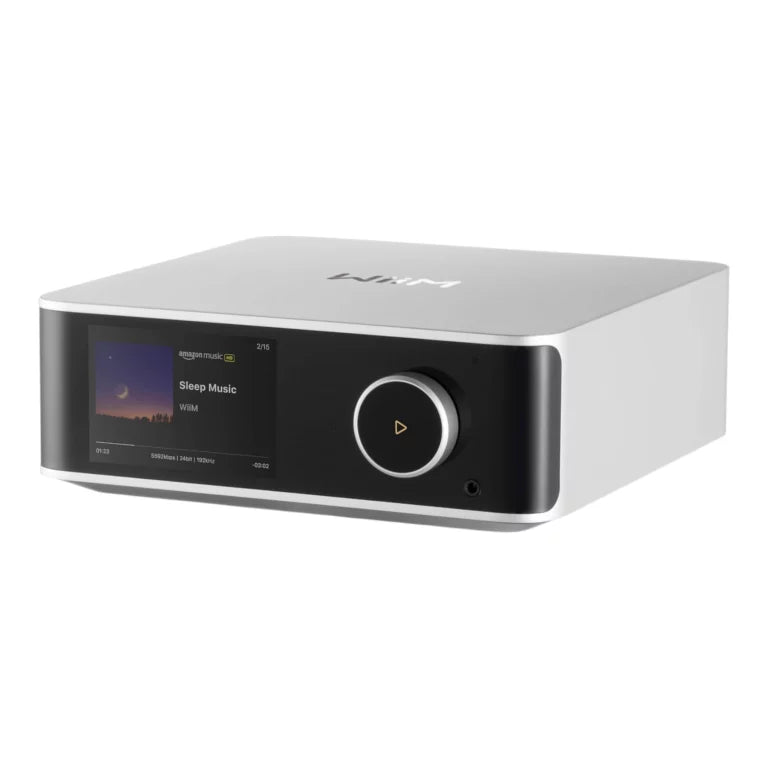

Sleek Design, Superior Build

Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5" glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.

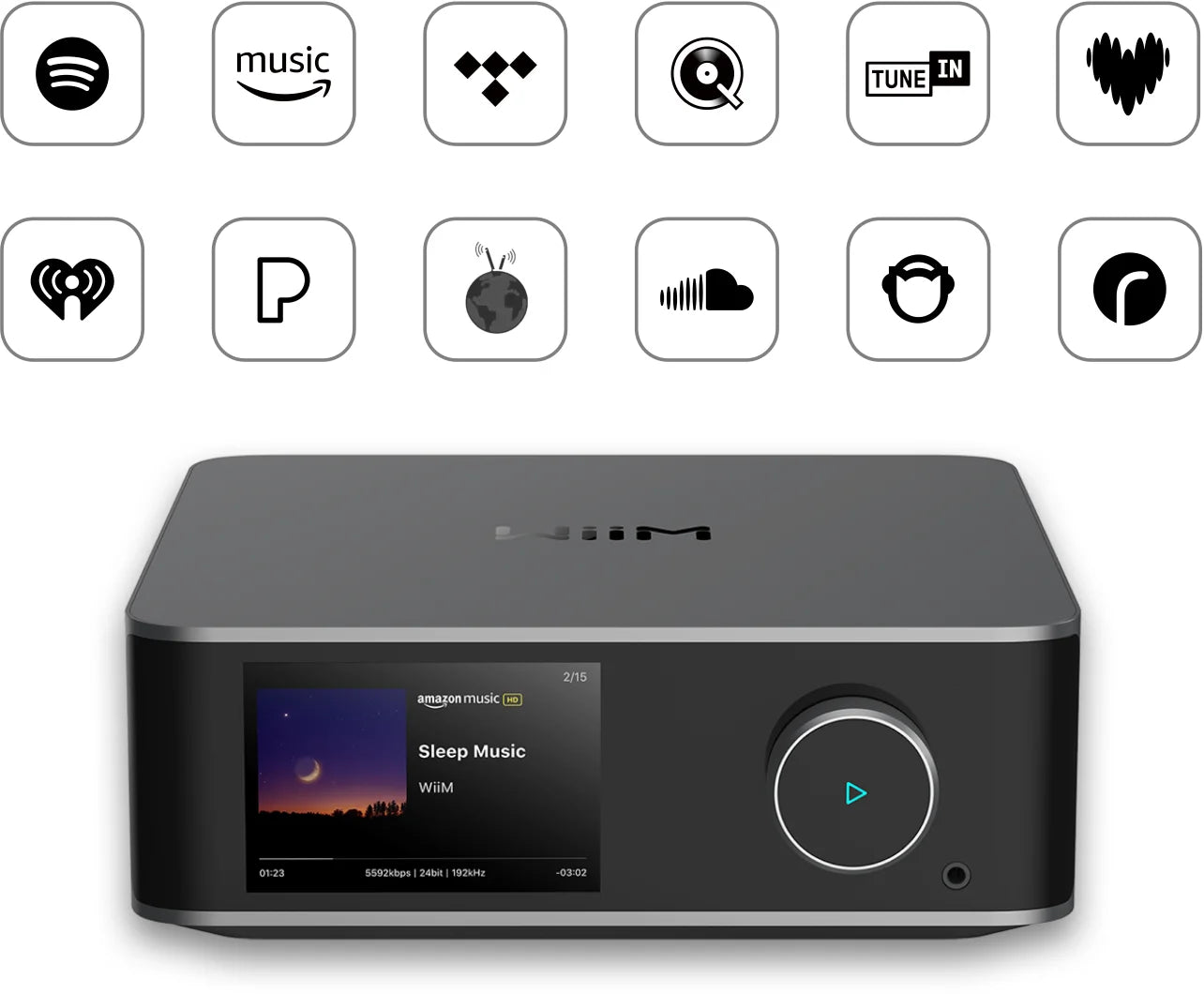

Stream Everything You Love

Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.

Superior Sound Quality

Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

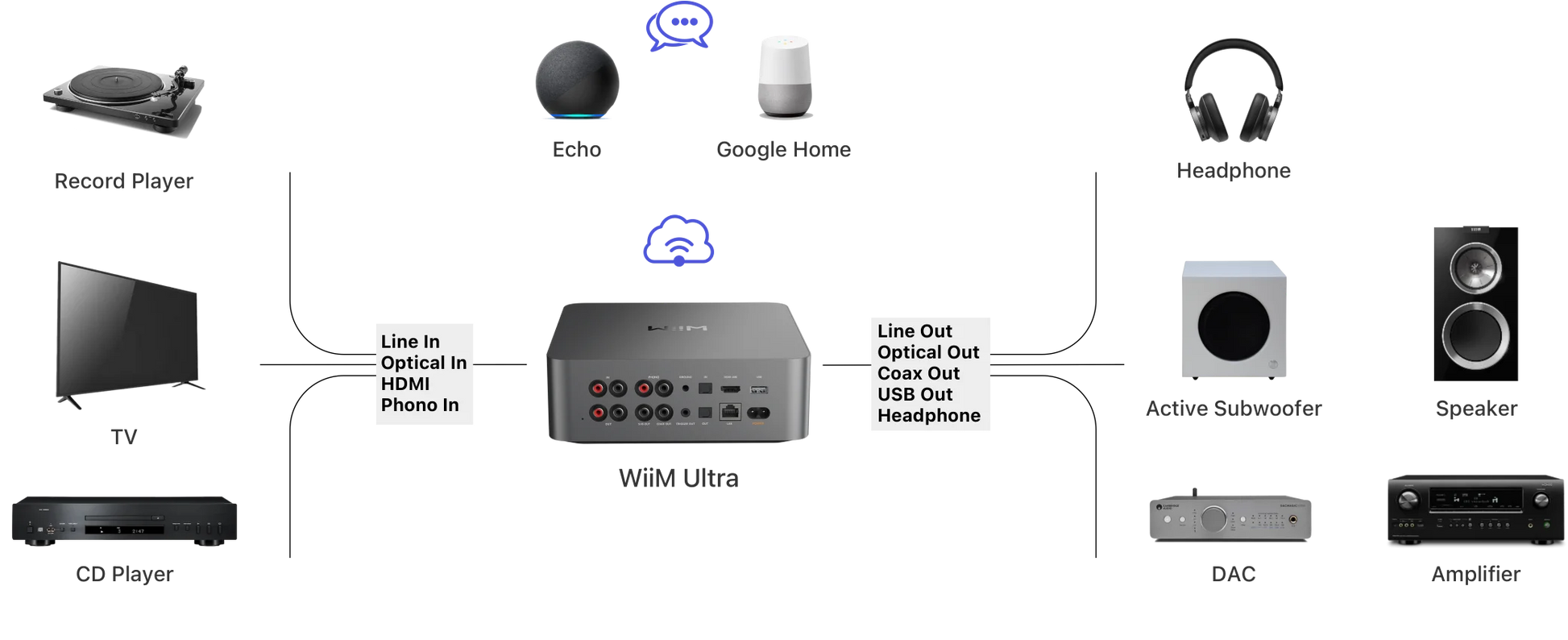

Connect with Ease

WiiM Ultra’s comprehensive connectivity suite offers USB, Optical, Coaxial, RCA outputs, and HDMI ARC, plus multiple inputs including RCA, Phono, and Optical. It’s designed to flawlessly integrate with both digital and analog systems, enhancing any audio setup with versatility and superior sound.

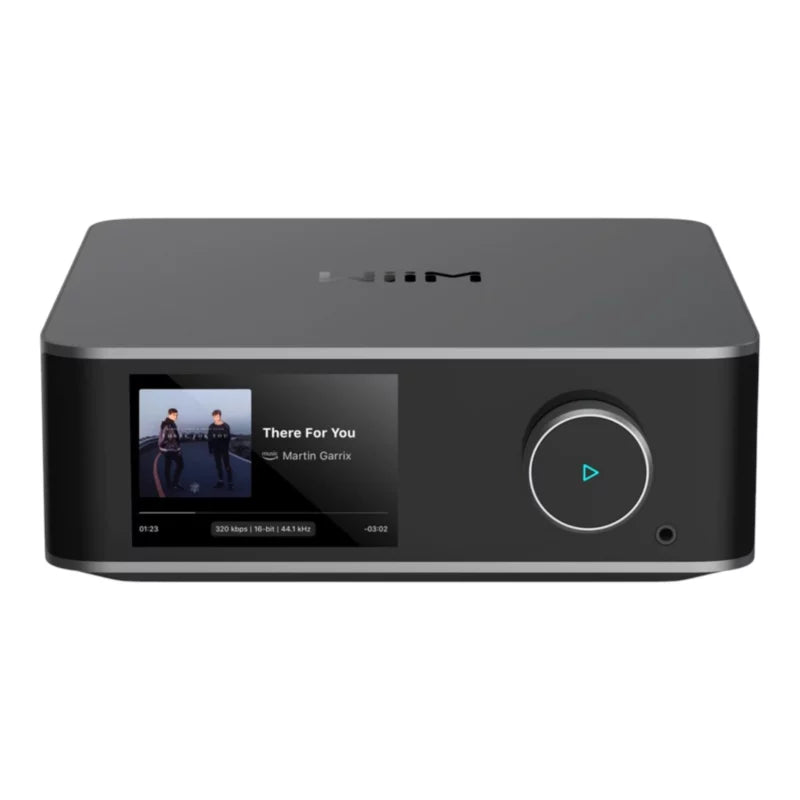

Your Music Looks Great

Features a 3.5" vibrant touch screen, displaying large album art, VU meter, instant feedback, music playback, and other customizable displays. This makes navigating through inputs, outputs, and settings a smoother and more user-friendly experience, also provides immediate visual feedback to the user's actions.

Seamless Multiroom Audio

Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central

Specifications

• Main Purpose -Connected to amplifier or powered speaker for streaming

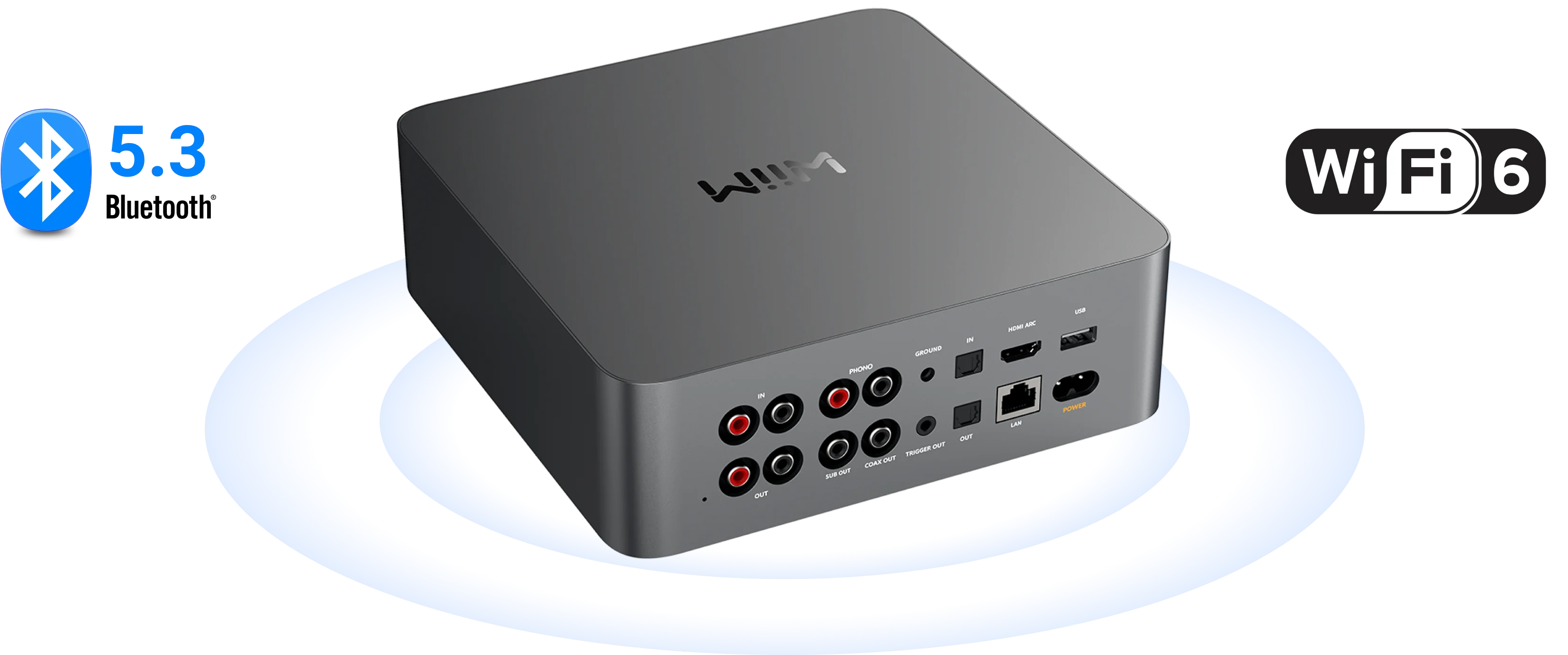

• Wireless Connectivity -Wi-Fi 6, BT 5.3,(Will be upgraded to Wi-Fi 6E via software update.)

Input Options

Analog Inputs:

• Line-In (RCA): Connects to external audio sources like CD players or PCs

• Phono Input: Dedicated input for turntables without a built-in preamp

Digital Inputs:

• Optical (TOSLINK): Supports 2-channel PCM stereo up to 24-bit/192kHz

• HDMI ARC: Receives audio from TVs; supports PCM and Dolby Digital 5.1 formats

Wireless Connectivity:

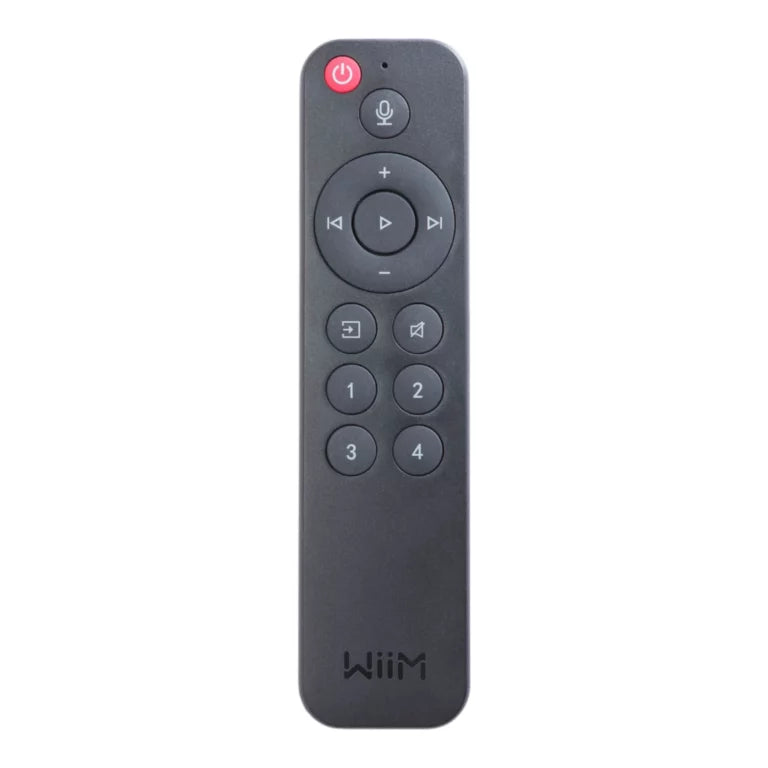

•  Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote

• • Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming

• USB Port: For connecting USB storage devices (formatted in FAT32, NTFS, or EXT4)

Output Options

Analog Inputs:

• Line-Out (RCA):Maximum output of 2.1V RMS

• Headphone Out:3.5mm jack for connecting headphones

Digital Outputs:

• Optical (TOSLINK): Supports up to 24-bit/192kHz

• Coaxial (S/PDIF): Supports up to 24-bit/192kHz

• USB Audio Out: Supports up to 24-bit/192kHz; UAC 2.0 compliant

• Subwoofer Output: Dedicated output for powered subwoofers

• 12V Trigger Out: Allows automatic power control of connected devices

Audio Performance

Line out：

• DAC: ESS ES9038Q2M SABRE DAC

• Analog Output SNR: 121 dB (A-weighted)

• THD+N (Analog Out): -115 dB (0.00018%)

• Supported Audio Formats: AAC, ALAC, FLAC, MP3, WAV, WMA, and more

• Maximum Sampling Rate: Up to 192kHz/24-bit

Headphone out：

• 300 ohms: SNR (119 dB), THD+N (-99 dB)

• 32 ohms: SNR (119 dB), THD+N (-92 dB)

• Package  -ContentsUser Guide *1 ,Power Cable *1,RCA Cable *1 ,HDMI Cable *1

Optical Cable *1 ,Remote Control *1 ,Phono Ground Adapter*1

In The Box

·         WiiM Ultra Networked Streamer

·         Limited 1-Year Manufacturer Warranty
