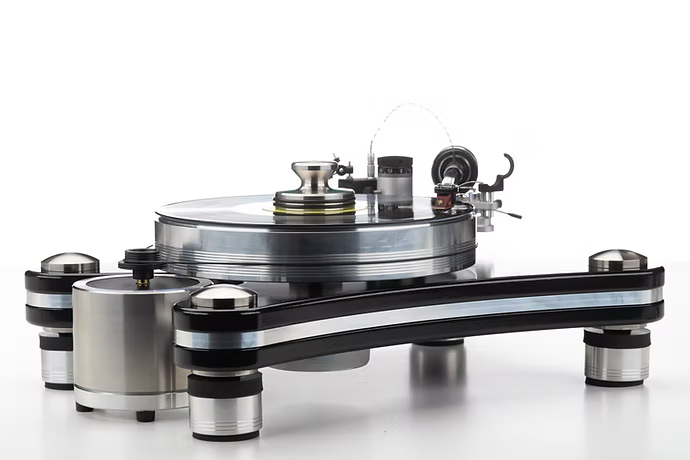

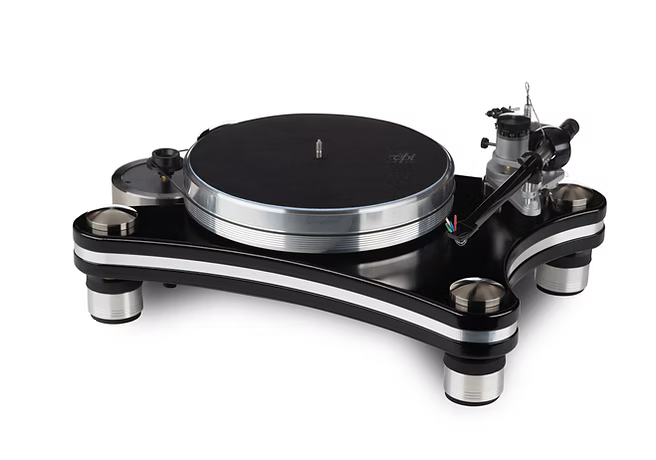

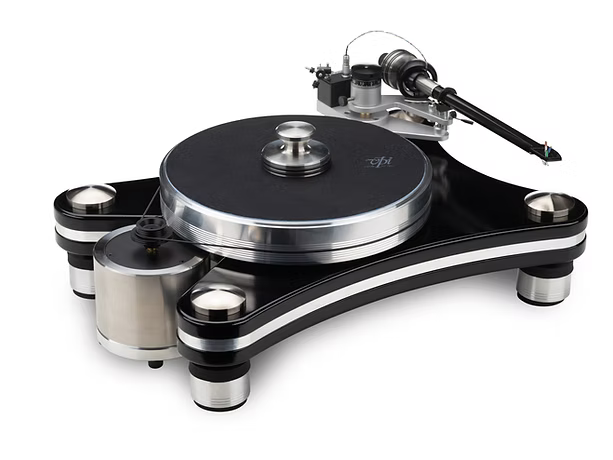

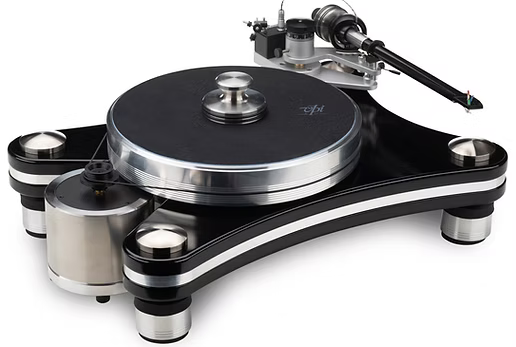

VPI Signature 21 Turntable

Luxury High-End Turntable With Fatboy Gimbal 10-3d Tonearm

The VPI Signature 21 is a high-end analogue turntable combining substantial mechanical construction, advanced tonearm technology and carefully engineered vibration control. It brings together aluminum, stainless steel and 3D-printed technology in a platform developed through more than four decades of VPI engineering refinement.

The Signature 21 is equipped with VPI's Fatboy Gimbal 10-3D tonearm, a 12-inch, 20 lb aluminum platter and a rigid vinyl-wrapped MDF and steel chassis. The result is a substantial platform designed for precise, low-noise vinyl playback and long-term system development.

Key Features

• VPI Fatboy Gimbal 10-3D tonearm

• Full Gimbal bearing design

• Nordost Reference internal tonearm wiring

• 12-inch, 20 lb aluminum platter

• Vinyl MDF and steel chassis construction

• 300 RPM motor

• Precision motor pulley with ±0.0005" accuracy

• VTA adjustment

• Azimuth side-weight adjustment

• Adjustable counterweight

• Lemo connection

• High-mass mechanical platform

• Available in multiple finishes, including limited-edition Rosewood

• Upgradeable platform

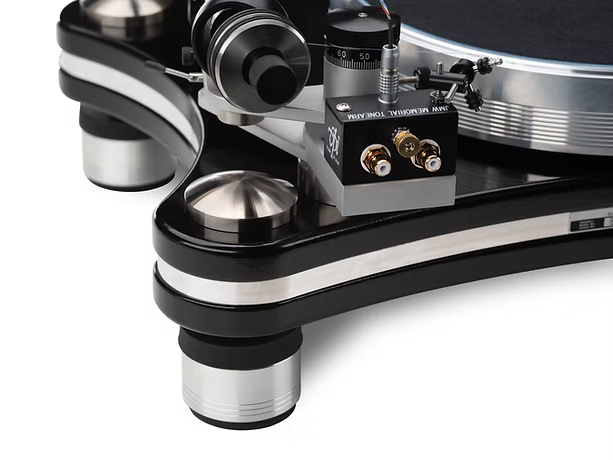

Fatboy Gimbal 10-3d Tonearm

The Signature 21 comes equipped with VPI's Fatboy Gimbal 10-3D tonearm. The full gimbal bearing design provides a controlled bearing arrangement while the 3D-printed construction combines epoxy resin and Delrin with copper, aluminum and steel.

Unlike the Copper Weave wiring used on several other VPI models, the Signature 21's Fatboy Gimbal 10-3D is specified with Nordost Reference Wire internally.

The tonearm includes an adjustable counterweight, azimuth side weights, VTA adjustment and VPI's Lemo connection system.

Tonearm Specifications

• Tonearm: Fatboy Gimbal 10-3D

• Bearing Type: Full Gimbal Bearing

• Internal Wire: Nordost Reference Wire

• Pivot to Spindle: 258 mm

• Effective Length: 273.4 mm

• Effective Mass: 10.7 g

• Overhang: 15.4 mm

• Offset Angle: 19.98°

• Average RMS Distortion: 0.31%

• Construction: 3D technology using epoxy resin, Delrin, copper, aluminum and steel

• Adjustments: Counterweight, Azimuth, VTA and Lemo connection

20-Lb Aluminum Platter

The Signature 21 uses a substantial 12-inch aluminum platter weighing 20 lbs.

The high-mass platter forms a stable rotational platform and works together with VPI's precision motor and bearing system to maintain consistent platter movement during playback.

Rigid Chassis Construction

The Signature 21 uses a vinyl MDF and steel chassis, combining substantial structural mass with VPI's mechanical approach to turntable construction.

The chassis, platter and tonearm are designed as a cohesive mechanical platform, with the goal of minimizing unwanted movement and maintaining a stable relationship between the record, cartridge and tonearm.

Precision Motor System

A 300 RPM motor drives the Signature 21's platter through a precision pulley specified to an accuracy of ±0.0005".

VPI specifies

• Wow & Flutter: 0.03%

• Speed Accuracy: 0.04%

• Rumble: 82 dB down

These specifications place emphasis on rotational consistency and low mechanical noise for demanding analogue playback.

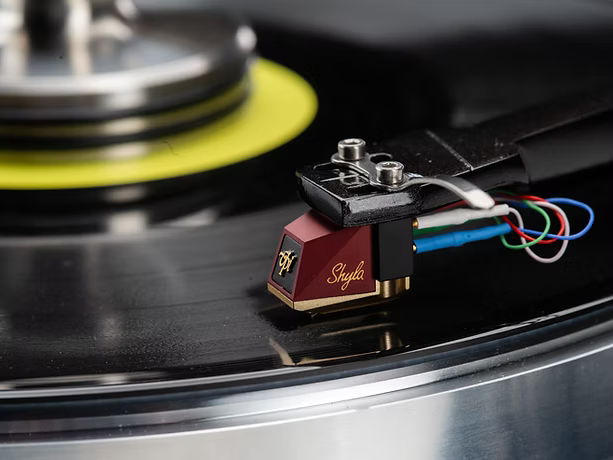

Precision Cartridge Setup

The Fatboy Gimbal 10-3D provides several adjustment points that allow the cartridge and tonearm to be properly aligned for individual system requirements.

• Key setup provisions include:

• VTA adjustment

• Azimuth adjustment

• Adjustable counterweight

• Lemo connection

Interchangeable tonearm capability

These adjustment facilities make the Signature 21 suitable for detailed cartridge setup and future system upgrades.

Features

• Manual belt-drive turntable

• 12-inch / 20 lb aluminum platter

• Fatboy Gimbal 10-3D tonearm

• Full gimbal bearing system

• Nordost Reference internal tonearm wiring

• Vinyl MDF and steel chassis

• 300 RPM motor

• Precision motor pulley

• Adjustable counterweight

• Azimuth side-weight adjustment

• VTA adjustment

• Lemo connection

• High-mass construction

• Upgradeable tonearm platform

Specifications

• Chassis Composition: Vinyl MDF and Steel

• Platter Type & Size: 12" Aluminum, 20 lbs

• Tonearm Included: Fatboy Gimbal 10-3D

• Motor RPM: 300 RPM

• Motor Pulley Accuracy: ±0.0005"

• Wow & Flutter: 0.03%

• Speed Accuracy: 0.04%

• Rumble: 82 dB down

• Footprint: 19 ½" × 13 ¾"

• Overall Size: 21 ⅜" × 15 ¾" × 11"

• Total Weight: 66 lbs
