High-Performance Belt-Drive Turntable With Jmw-9 Uni-Pivot Tonearm

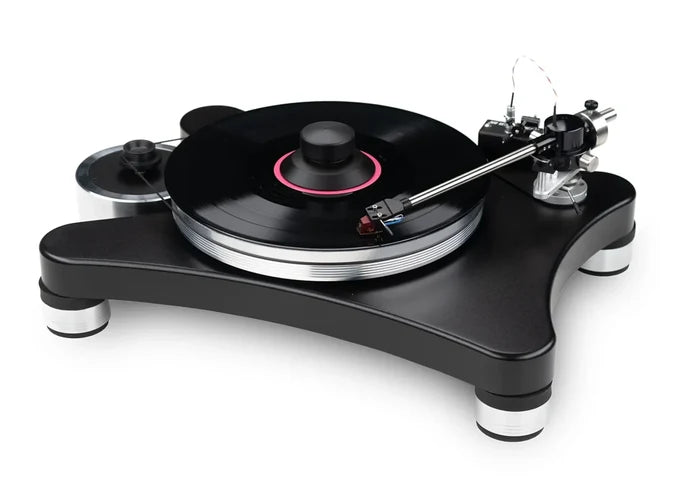

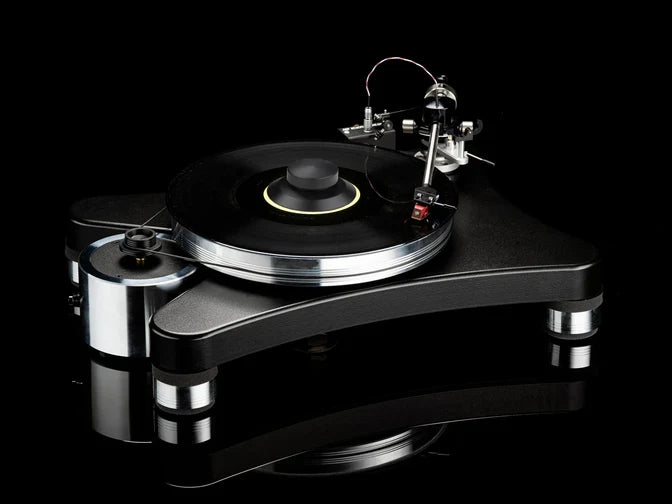

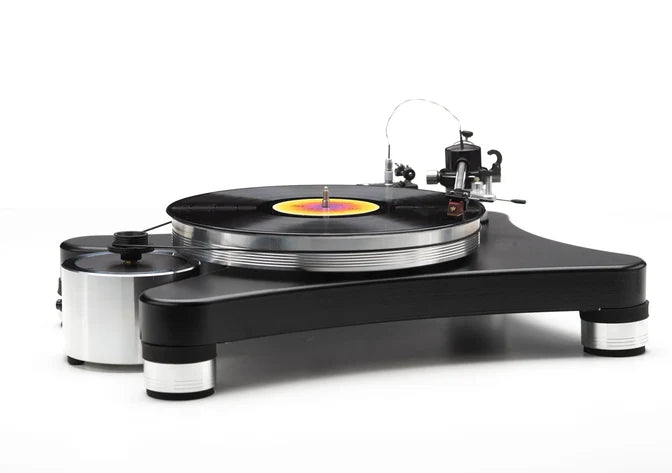

The VPI Scout 21 is the current evolution of VPI's Scout platform, combining a substantial machined-aluminium platter, isolated 300 RPM motor housing, improved isolation feet and VPI's JMW-9 uni-pivot tonearm. It is designed as a serious high-end analogue playback platform with a straightforward mechanical architecture and a clear upgrade path.
The Scout 21 uses a vinyl-wrapped MDF and steel chassis and an 11.5-inch, 10.5 lb aluminium platter. Its JMW-9 tonearm provides adjustable counterweight, azimuth side weights and VTA adjustment, allowing the turntable to be carefully configured for the cartridge being used.
Key Features
-
JMW-9 Uni-Pivot Tonearm – VPI's 9-inch uni-pivot design with adjustable counterweight, azimuth side weights and VTA adjustment.
-
11.5-inch Aluminium Platter – A substantial 10.5 lb platter provides a stable rotating platform for vinyl playback.
-
300 RPM Motor – The Scout 21 incorporates a 300 RPM motor housing derived from VPI's later-generation designs.
-
Improved Isolation Feet – Updated feet provide improved mechanical isolation for the turntable.
-

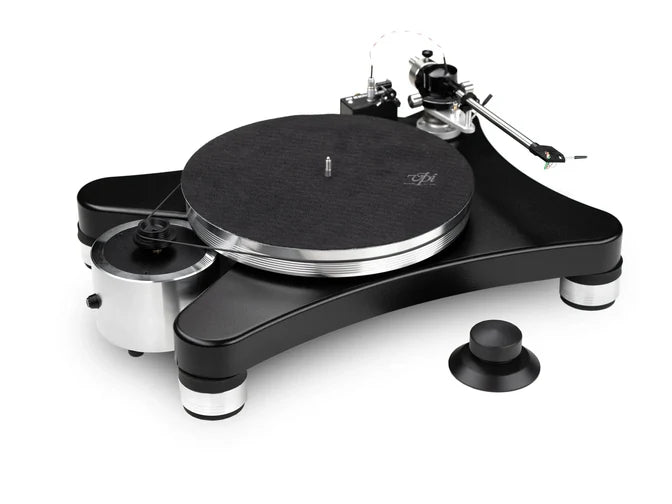

Screw-Down Delrin Clamp – Secures the record to the platter and helps accommodate slightly warped records.
-
Rigid MDF & Steel Chassis – Combines a vinyl-wrapped MDF chassis with a steel structure for a solid mechanical foundation.
-
Upgradeable Platform – VPI offers several upgrade options for the platter, tonearm, drive system, centre weight and VTA adjustment.
-
Made in the USA – The Scout 21 is manufactured by VPI in the United States.
Evolution Of The Scout Platform
The Scout 21 takes design cues from VPI's Prime Scout while continuing the company's established Scout philosophy. VPI specifically identifies the improved 300 RPM motor housing and improved isolation feet as developments over its predecessor.
The result is a substantial analogue platform focused on stable platter rotation, mechanical isolation and precise tonearm adjustment rather than unnecessary complexity.

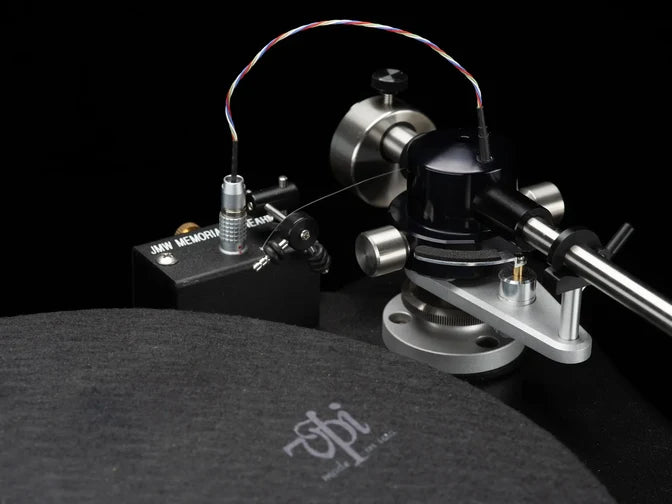

Precision Jmw-9 Uni-Pivot Tonearm

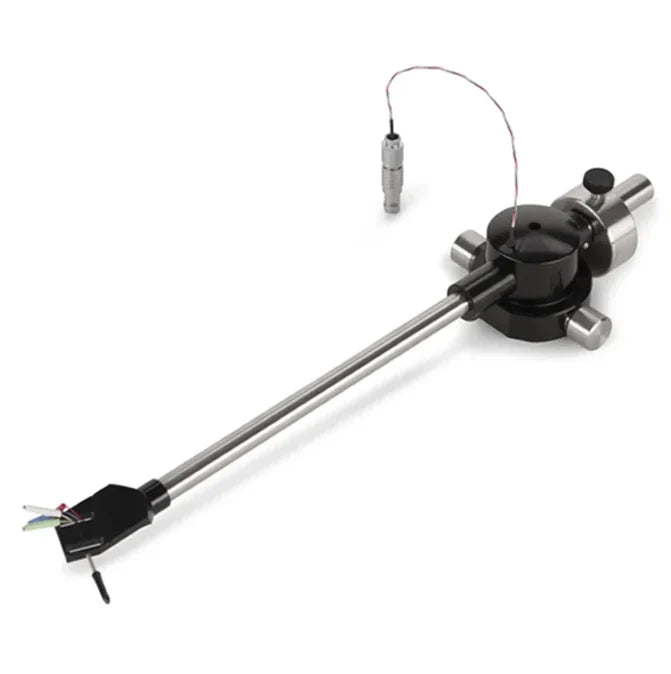

The supplied JMW-9 tonearm uses a uni-pivot bearing design with a 223 mm pivot-to-spindle distance and 240.7 mm effective length. VPI specifies an effective mass of 10.2 g, 17.7 mm overhang and a 22.85-degree offset angle.
The arm includes an adjustable drop counterweight, azimuth side weights and VTA adjustment, allowing cartridge alignment and tracking geometry to be carefully optimised.
Solid Aluminium Platter & Belt Drive
The Scout 21 employs an 11.5-inch, 10.5 lb aluminium platter driven by a 300 RPM motor. VPI specifies motor-pulley accuracy of ±0.0005 inch, wow and flutter of 0.08%, speed accuracy of 0.08% and rumble of 78 dB down.
The combination of platter mass, belt drive, isolated motor housing and rigid chassis provides the mechanical foundation for precise analogue playback.
Upgradeable Analogue Platform
The Scout 21 is designed to remain useful as an analogue system develops. VPI lists upgrade options including the Prime Platter, JMW-9-3D Tonearm, Analog Drive System (ADS), Signature Center Weight and VTA On the Fly Arm Base.
These options allow owners to progressively refine the turntable rather than replacing the complete platform when upgrading other parts of the system.
Features
-
JMW-9 Uni-Pivot Tonearm.
-
11.5-inch aluminium platter.
-
10.5 lb platter weight.
-
300 RPM motor.
-
Improved motor housing.
-
Improved isolation feet.
-
Screw-down Delrin record clamp.
-
Adjustable counterweight.
-
Azimuth side-weight adjustment.
-
VTA adjustment.
-
Lemo tonearm connection.
-
Vinyl-wrapped MDF and steel chassis.
-
Upgradeable design.
-
Made in the USA.
Specifications
-
Model: VPI Scout 21
-
Drive System: Belt Drive
-
Chassis: Vinyl Wrapped MDF and Steel
-
Platter: 11.5-inch Aluminium, 10.5 lb
-
Tonearm: JMW-9
-
Tonearm Bearing: Uni-Pivot
-
Internal Tonearm Wire: VPI Copper Weave
-
Pivot-to-Spindle: 223 mm
-
Effective Tonearm Length: 240.7 mm
-
Effective Mass: 10.2 g
-
Overhang: 17.7 mm
-
Offset Angle: 22.85°
-
Motor: 300 RPM
-
Motor Pulley Accuracy: ±0.0005 inch
-
Wow & Flutter: 0.08%
-
Speed Accuracy: 0.08%
-
Rumble: 78 dB down
-
Footprint: 18.5 × 14.5 inches
-
Overall Dimensions: 19 × 15 × 8.5 inches
-
Total Weight: 32 lb
