High-End Manual Belt-Drive Turntable With Jmw 3d-10 Tonearm

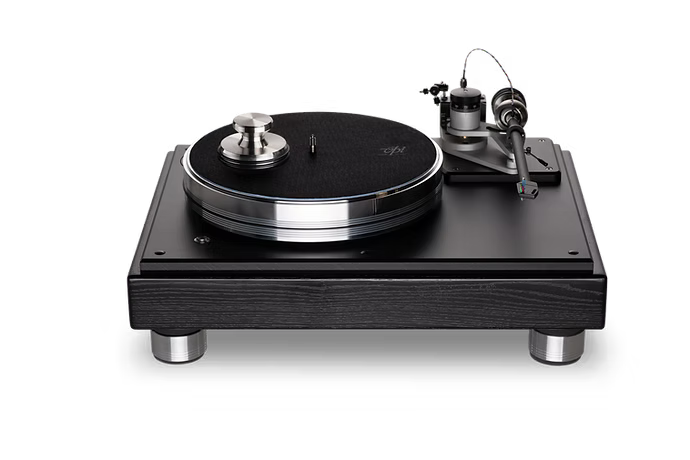

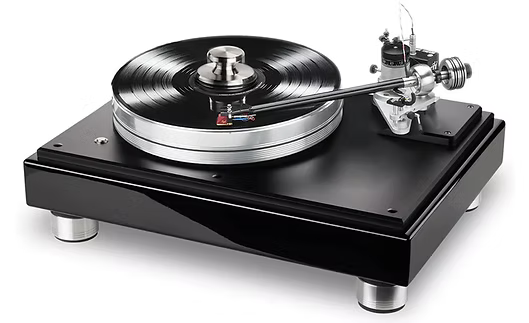

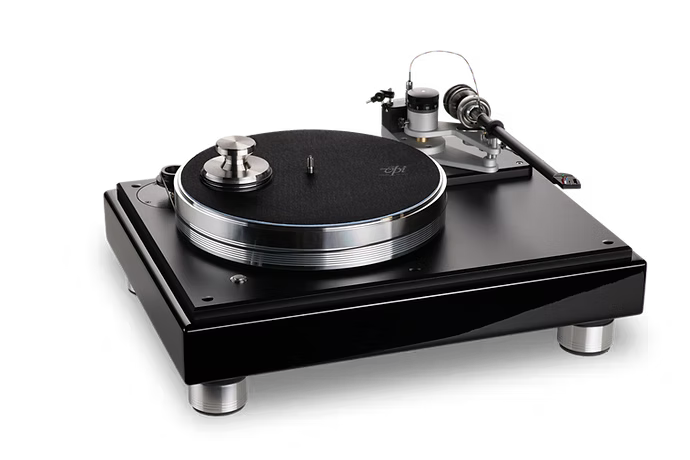

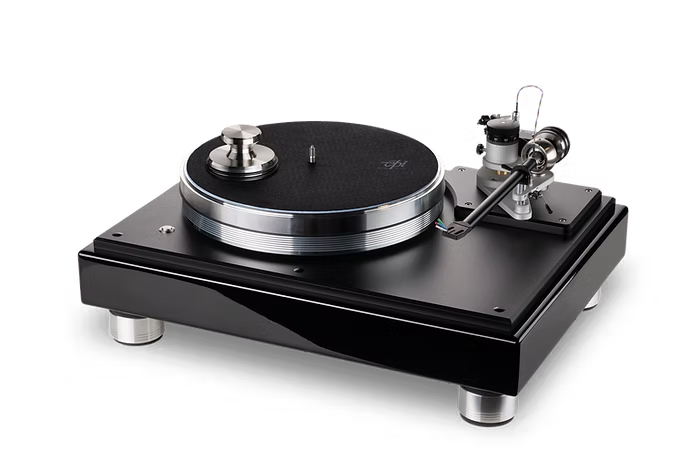

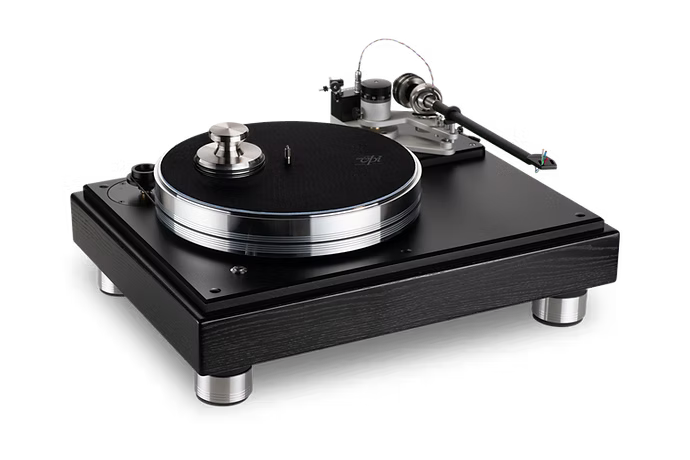

The VPI Classic Signature is a high-end analogue turntable built around VPI's distinctive Classic platform, combining substantial mass, precision machining and a heavily damped chassis architecture.
The Classic Signature features a ½-inch machined aluminum plinth bonded to a ⅛-inch steel sub-plate and 2 inches of MDF, creating a substantial laminated chassis designed to control unwanted resonance. It is paired with a 20 lb 6061 aluminum and stainless-steel platter, precision inverted bearing and VPI's JMW 3D-10 tonearm with Discovery internal wiring.
Key Features
-
JMW 3D-10 tonearm
-
Precision inverted platter bearing
-
20 lb 6061 aluminum and stainless-steel platter
-
½-inch machined aluminum plinth
-
⅛-inch steel sub-plate
-
2-inch MDF chassis layer
-
Approximately 2.5-inch laminated chassis construction
-
30 lb chassis
-
300 RPM, 24-pole AC synchronous motor
-
Precision motor pulley
-
±0.0005" pulley accuracy
-
VPI stainless-steel record center weight
-
Discovery tonearm wiring
-
Rigid motor, platter and tonearm mounting
-
High feedback rejection
-
Black Ash finish as supplied for this product listing
Jmw 3d-10 Tonearm
The Classic Signature is equipped with VPI's JMW 3D-10 tonearm, incorporating VPI's 3D-printed tonearm technology.
The arm is designed around a low-resonance structure and is supplied with Discovery wiring from the cartridge through to the RCA or XLR output connection. Its adjustment system provides control over cartridge alignment and tonearm geometry.
Tonearm Features
-
JMW 3D-10 tonearm
-
10-inch tonearm architecture
-
3D-printed construction
-
Discovery internal wiring
-
Adjustable counterweight
-
Azimuth adjustment
-
VTA adjustment
-
RCA output
-
XLR output compatibility
-
Precision tonearm mounting
High-Mass 20-Lb Platter
The Classic Signature uses a 20 lb platter machined from 6061 aluminum and stainless steel.
VPI specifies platter run-out of ±0.001 inch over a 39-inch circumference. The platter operates on a precision inverted bearing system designed to maintain stable platter rotation and minimize unwanted mechanical movement.
Precision Inverted Bearing
The platter bearing uses a precision shaft with a hardened and polished bearing surface running against a PEEK thrust disc, while lateral thrust is handled by graphite-lubricated composite bronze bushings.
The belt runs around the platter through the center of the bearing assembly. VPI's design places the motor, platter and tonearm in a rigid mechanical relationship intended to minimize unwanted movement and preserve rotational stability.
Massive Laminated Chassis
-
One of the defining features of the Classic Signature is its substantial chassis.
-
The platform combines:
-
½-inch machined aluminum plinth
-
⅛-inch steel sub-plate
-
2-inch MDF body
-
Silicone bonding between layers
Long bolts securing the laminated structure
The resulting chassis is approximately 2.5 inches thick and weighs approximately 30 lbs, providing a substantial, damped foundation for the platter, motor and tonearm.
Precision Motor & Belt Drive
The Classic Signature employs a 300 RPM, 24-pole AC synchronous motor driving the platter through a precision pulley.
VPI specifies pulley accuracy of ±0.0005 inch. The rigid mounting relationship between the motor, platter and tonearm is designed to reduce random mechanical movement and maintain consistent platter rotation.
Mechanical Isolation & Feedback Control
The Classic Signature is engineered with a high-mass, rigid construction intended to reduce the influence of external vibration and acoustic feedback.
VPI states that the Classic platform provides strong feedback rejection, allowing the turntable to operate in demanding listening environments while maintaining a stable mechanical relationship between the cartridge and record.
Features
-
Manual belt-drive operation
-
20 lb 6061 aluminum and stainless-steel platter
-
Precision inverted bearing
-
PEEK thrust disc
-
Composite bronze side-thrust bushings
-
300 RPM 24-pole AC synchronous motor
-
Precision motor pulley
-
±0.0005" pulley accuracy
-
JMW 3D-10 tonearm
-
Discovery tonearm wiring
-
Adjustable counterweight
-
Azimuth adjustment
-
VTA adjustment
-
VPI stainless-steel record center weight
-
Laminated aluminum, steel and MDF chassis
-
High-mass construction
-
High feedback rejection
-
Black Ash finish
Specifications
-
Chassis Construction: Laminated MDF, Steel & Aluminum
-
Aluminum Plinth: ½" Machined Aluminum
-
Steel Sub-Plate: ⅛" Steel
-
MDF Layer: 2" MDF
-
Chassis Thickness: Approx. 2.5"
-
Chassis Weight: Approx. 30 lbs
-
Platter: 6061 Aluminum & Stainless Steel
-
Platter Weight: 20 lbs
-
Platter Run-Out: ±0.001" / 39" circumference
-
Tonearm: JMW 3D-10
-
Internal Tonearm Wiring: Discovery Wire
-
Motor: 300 RPM, 24-Pole AC Synchronous
-
Motor Pulley Accuracy: ±0.0005"
-
Minimum Wow & Flutter Specification: <0.1%
-
Minimum Rumble Specification: >70 dB down
-
Speed Accuracy: Within 0.1%
-
Footprint: 19 ¼" × 14 ¼"
-
Overall Size: 20 ½" × 15 ½" × 9 ½"
-
Total Weight: 65 lbs
-
Record Weight: VPI Stainless-Steel Center Weight
