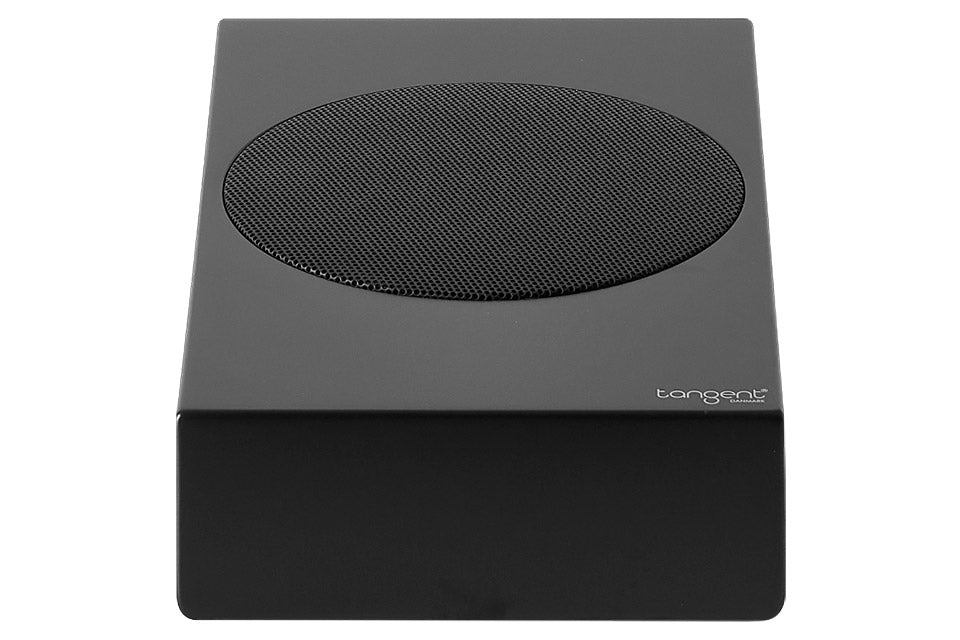

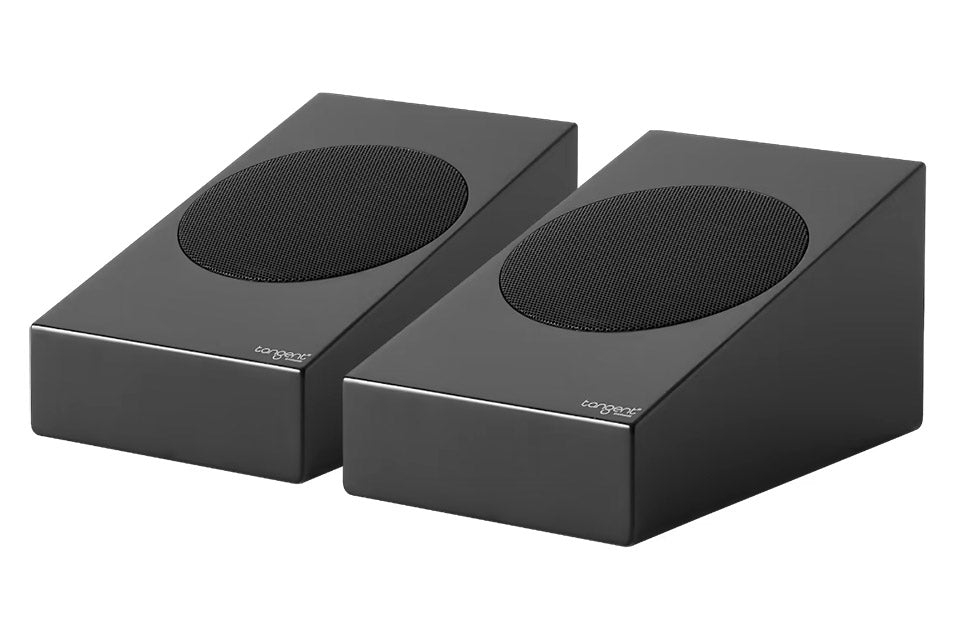

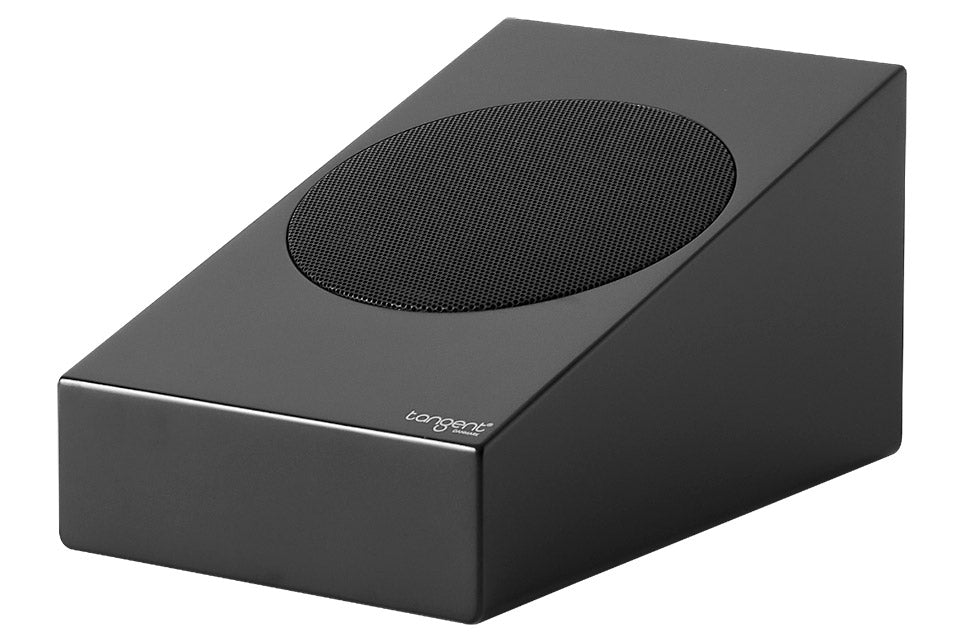

Tangent Spectrum XATM Dolby Atmos Certified 2-Way Coaxial Add-On Speaker

Tangent Spectrum XATM Dolby Atmos Certified 2-Way Coaxial Add-On Speaker

Professional Product Profile

The Tangent Spectrum XATM is a compact Dolby Atmos-certified speaker designed to add a convincing vertical dimension to a compatible home theatre system. Developed specifically for the Tangent Spectrum range, the XATM is designed to sit on top of the Spectrum X6 floorstanding speaker and direct Atmos effects toward the ceiling, creating reflected overhead sound without the need to install in-ceiling speakers.

Key Features

• Dolby Atmos Certified – Designed and manufactured under license from Dolby Laboratories for Dolby Atmos-enabled home theatre systems.

• 2-Way Coaxial Design – Combines the tweeter and mid-bass driver on a common acoustic axis for coherent sound reproduction.

• 20 mm / ¾-inch Fabric Dome Tweeter – Provides smooth and detailed high-frequency reproduction.

• 120 mm / 5-inch Mid-Bass Driver – Reproduces the mid and upper-bass information required for convincing height effects.

• Closed Cabinet Design – The sealed enclosure is specifically designed for its upward-firing Atmos application.

• Designed for Spectrum X6 – Optimised as an add-on module for the Tangent Spectrum X6 floorstanding speaker.

• Compact Danish Design – A discreet form factor that integrates naturally with the Spectrum speaker range.

Vertical Sound For Dolby Atmos

Dolby Atmos introduces height information into a home theatre soundtrack, allowing sound to be perceived not only around the listener but also above them. The Spectrum XATM provides this additional vertical dimension by firing the height channel toward the ceiling, where the sound is reflected back toward the listening position.

This approach provides an easier alternative to installing dedicated in-ceiling speakers, particularly where structural limitations, rental restrictions or room aesthetics make ceiling installation impractical.

Designed To Work With Spectrum X6

The Spectrum XATM is specifically designed to sit on top of the Tangent Spectrum X6 floorstanding speaker. Tangent's installation guidance recommends positioning the X6 first and then placing the XATM on top, using the speaker's integrated rubber surface to keep the Atmos module securely positioned without requiring glue or screws.

This creates a clean, integrated front-stage solution while maintaining the visual character of the Spectrum range.

Coaxial Driver Performance

The XATM uses a coaxial driver arrangement consisting of a 20 mm tweeter and 120 mm mid-bass driver. By placing the two drivers on the same acoustic axis, the speaker maintains a coherent radiation pattern that is well suited to its upward-firing Atmos application.

The specified frequency response of 70 Hz–20 kHz, combined with 88 dB sensitivity and a 6-ohm impedance, makes the XATM suitable for integration with a wide range of compatible AV receivers and home theatre amplifiers.

Simple Atmos Upgrade

One of the key advantages of the XATM is that it adds Dolby Atmos height effects without requiring the installation of speakers in the ceiling. For a compatible Spectrum system, it provides a straightforward upgrade path from conventional surround sound to a more immersive object-based home theatre experience.

Specifications

• Model: Spectrum XATM

• Type: Dolby Atmos Certified 2-Way Sealed Speaker

• Configuration: Coaxial

• Tweeter: 20 mm / ¾-inch Fabric Dome

• Mid-Bass Driver: 120 mm / 4.7-inch

• Frequency Response: 70 Hz – 20 kHz

• Sensitivity: 88 dB / 1 W / 1 m

• Nominal Impedance: 6 Ω

• Recommended Amplifier Power: 20 – 80 W

• Dimensions (W × H × D): 166 × 140 × 268 mm

• Weight: 2.8 kg per speaker

• Finishes: Black Satin / White Satin

• Black SKU: TANSPECATMBK

• Black EAN: 5703959106384

• White SKU: TANSPECATMWT

• White EAN: 5703959106391

• Recommended Applications

• Dolby Atmos Home Theatre

• 5.1.2 Home Theatre

• 5.1.4 Home Theatre

• Tangent Spectrum X6 Systems

• Height-Effect Channels

• Systems Where In-Ceiling Installation Is Not Practical

In The Box

• Tangent Spectrum XATM Dolby Atmos Speaker

• Manufacturer documentation
