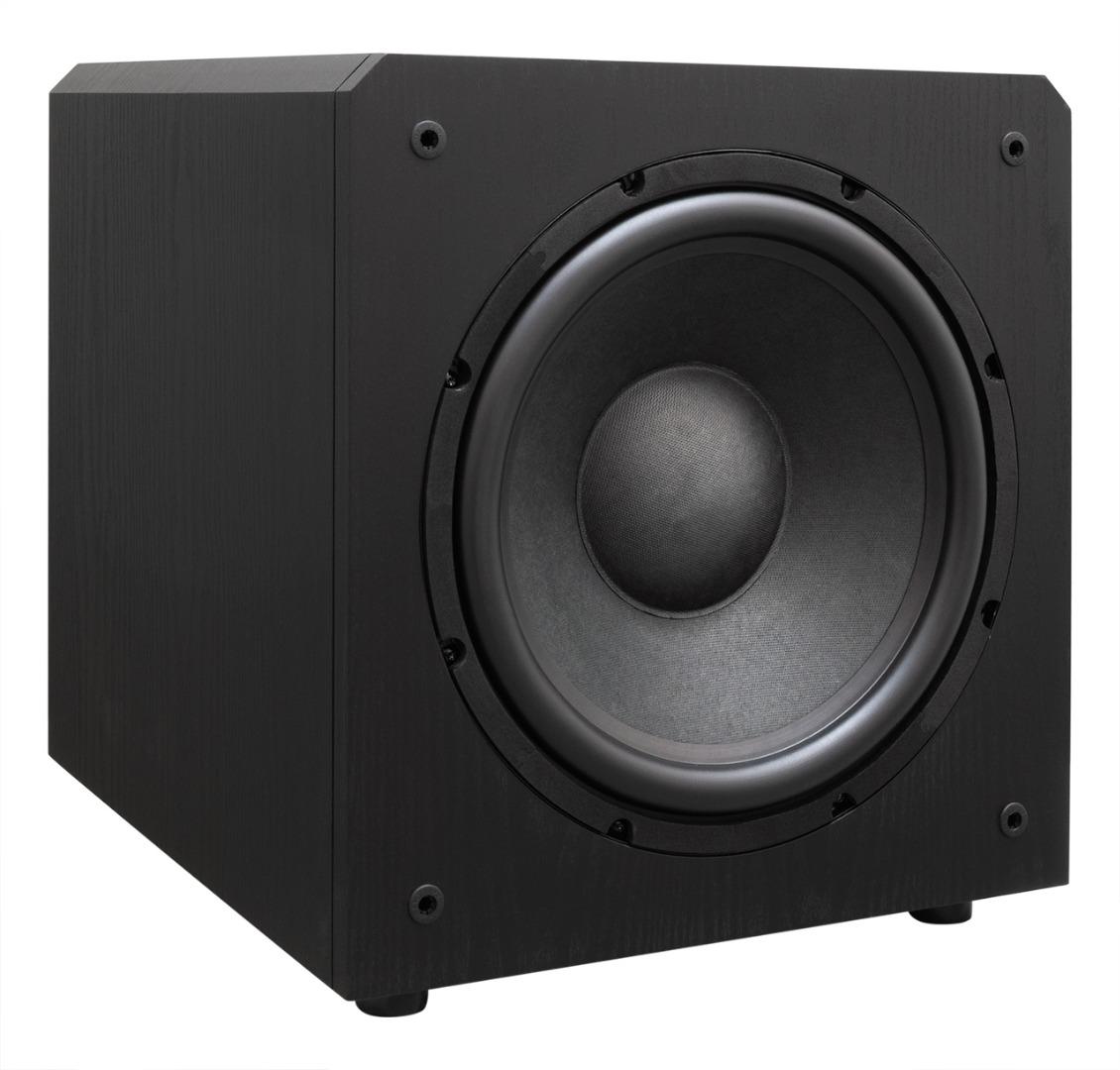

TAGA Harmony TSW-212 Active Subwoofer

The TAGA Harmony TSW-212 is a powerful active subwoofer designed to add deep, impactful bass to home theatre and stereo audio systems. Featuring a 12-inch paper-cone driver and a built-in high-current Class A/B amplifier, it delivers low-frequency performance suited to movie soundtracks, music and immersive entertainment.

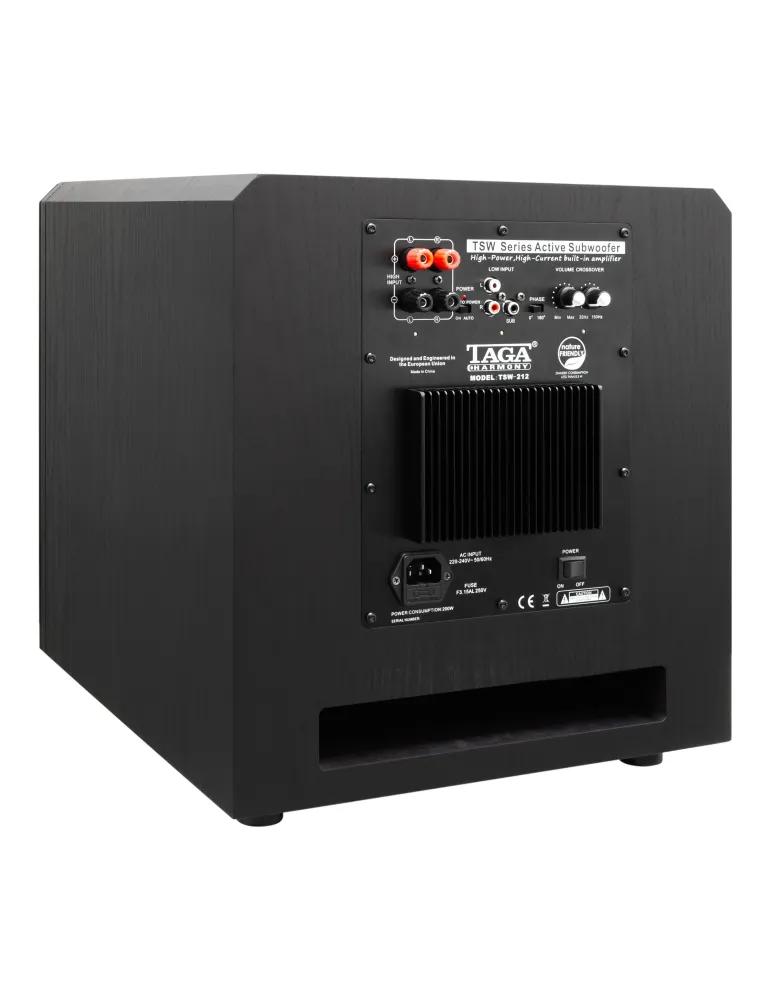

Its rear-facing slotted bass-reflex port, adjustable crossover and switchable phase control help integrate the subwoofer with compatible speakers and amplifiers. The cabinet uses TAGA Harmony's TLIE (Taga Low Interference Enclosures) construction, designed to improve rigidity and reduce unwanted cabinet resonances.

Key Features

•  12-inch Bass Driver: A 305 mm paper-cone woofer designed for deep, dynamic low-frequency reproduction.

•  200W RMS Amplifier: Built-in Class A/B amplification with up to 600W dynamic peak power.

• Deep Bass Extension: Frequency response rated from 25 Hz to 200 Hz.

•  Adjustable Crossover: Variable crossover frequency from 35 Hz to 150 Hz for system integration.

•  Phase Control: Switchable 0° and 180° settings to help optimize bass integration.

•  Multiple Inputs: Line-level L/R, dedicated LFE and high-level input connections.

• Auto On/Off: Automatically manages operation according to signal detection.

• Low-Interference Cabinet: TLIE enclosure construction designed to minimize unwanted resonances.

Powerful Bass for Home Theatre

The TSW-212 adds weight and impact to explosions, cinematic effects and deep soundtrack passages. Its 12-inch driver and high-current amplifier are designed to reproduce demanding low-frequency content, helping create a more engaging home theatre experience.

Detailed, Controlled Music Performance

A subwoofer should complement the main speakers rather than overpower them. The TSW-212's adjustable crossover and phase switch help users integrate bass output with their existing speaker system for a more balanced presentation across music and movies.

Flexible System Integration

The TSW-212 supports several connection methods, including a dedicated LFE input for compatible AV receivers, line-level connections for stereo equipment and a high-level input for suitable amplifier configurations. Always follow the connected equipment's instructions when selecting the appropriate connection.

Specifications

• Model TSW-212

• Product Type Active subwoofer

• Bass Driver 305 mm (12-inch) paper cone

• Amplifier Power 200W RMS

• Dynamic Peak Power 600W

• Amplifier Class             Class A/B

• Frequency Response 25 Hz – 200 Hz

• Nominal Impedance 6 Ω

• Bass Reflex Single rear slotted port

• Crossover Frequency 35 Hz – 150 Hz, variable

• Phase Control 0° / 180°

• Inputs Line-level L/R, SUB (LFE), high-level

• Auto On/Off Yes

• Power Supply 220–240V AC, 50/60 Hz

• Standby Power Consumption Less than 0.5W

• Dimensions (H × W × D)          40.2 × 37.1 × 42.5 cm, including feet

• Weight 24.2 kg

• Cabinet Finishes Black, Modern Wenge, Oak, Walnut, White

In the Box

• TAGA Harmony TSW-212 active subwoofer

•  RCA-to-RCA subwoofer cable

• Removable IEC power cable

•  Manufacturer documentation and warranty, as supplied by the retailer
