Discreet Architectural Audio For Home Theatre & Multichannel Sound
The TAGA Harmony TLCR-580 is designed for home theatre enthusiasts and custom installation projects that demand clear, dynamic sound without compromising interior aesthetics. This two-way architectural loudspeaker can be used as a left, centre or right channel, offering flexibility when building a multichannel system with consistent speaker characteristics across the front soundstage.
Featuring a 25 mm titanium dome tweeter and two 133 mm Kevlar® bass/midrange drivers, the TLCR-580 is engineered to deliver natural, detailed audio with wide dispersion throughout the listening area. Its low-profile magnetic grille and rigid polymer chassis make it a practical solution for residential home theatre systems, distributed audio and selected commercial installations.
Key Features
-
Versatile LCR Design – Suitable for left, centre or right channel applications in compatible home theatre systems.
-
25 mm Titanium Dome Tweeter – TAGA's TPTTD tweeter is designed for clear, detailed and smooth high-frequency reproduction.
-
Dual 133 mm Kevlar® Drivers – Two 5.25-inch bass/midrange drivers provide dynamic, articulate sound reproduction.
-
Swivel-Mounted Tweeter – Allows high-frequency output to be directed towards the listening area.
-
Adjustable Treble Response – A ±3 dB treble switch helps tailor the sound to the installation environment.
-
Low-Profile Magnetic Grille – Provides a discreet architectural appearance and can be painted to complement the interior.
-
Rigid Polymer Chassis – Injection-moulded construction helps minimise unwanted vibrations and resonances.
-
Installer-Friendly Mounting – Dedicated mounting brackets support secure and straightforward installation.
Designed For Multichannel Home Theatre
A convincing home theatre experience depends on consistency between the speakers reproducing dialogue, music and cinematic effects. Using speakers with a similar acoustic character across the front stage helps create a more cohesive listening experience as sound moves between the left, centre and right channels.
The TLCR-580 offers the flexibility to serve in any of these three positions. This makes it suitable for installations where matched front-channel speakers are preferred, particularly in dedicated media rooms and custom-built entertainment spaces.
Its architectural design keeps the listening environment uncluttered while allowing the audio system to integrate neatly into the room.
Clear & Dynamic Sound Reproduction

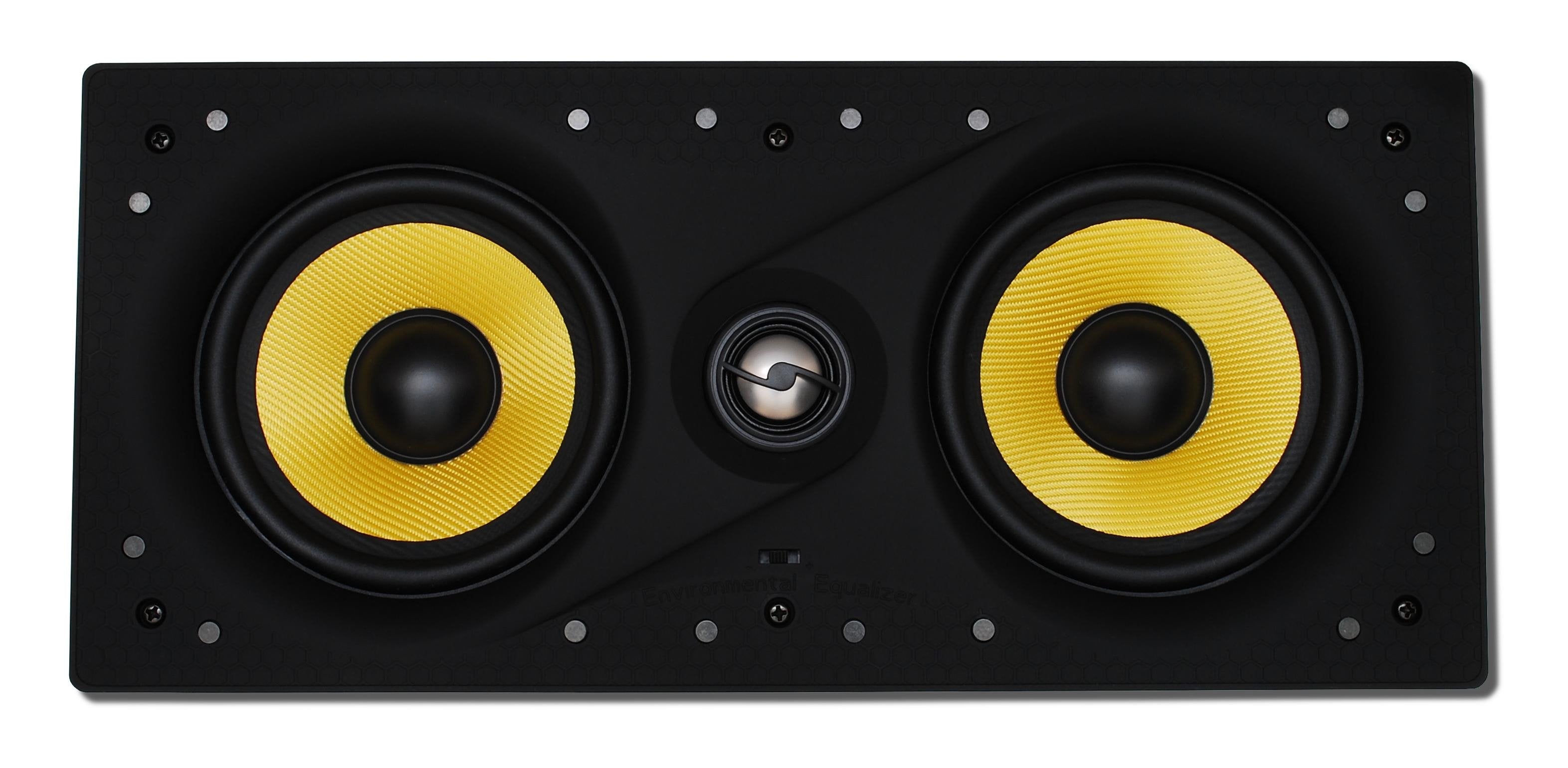

The TLCR-580 combines a 25 mm TPTTD titanium dome tweeter with two 133 mm Kevlar® bass/midrange drivers. This two-way configuration is designed to reproduce high-frequency detail alongside the midrange and bass information that gives music and cinematic soundtracks their body and impact.
The swivel-mounted tweeter offers flexibility when directing high-frequency output, while the dual-driver arrangement supports a dynamic presentation for dialogue, music and effects.
With a published sensitivity of 91 dB, the TLCR-580 is designed to deliver useful output from a compatible amplifier when correctly installed and configured.
Flexible Installation & Sound Adjustment

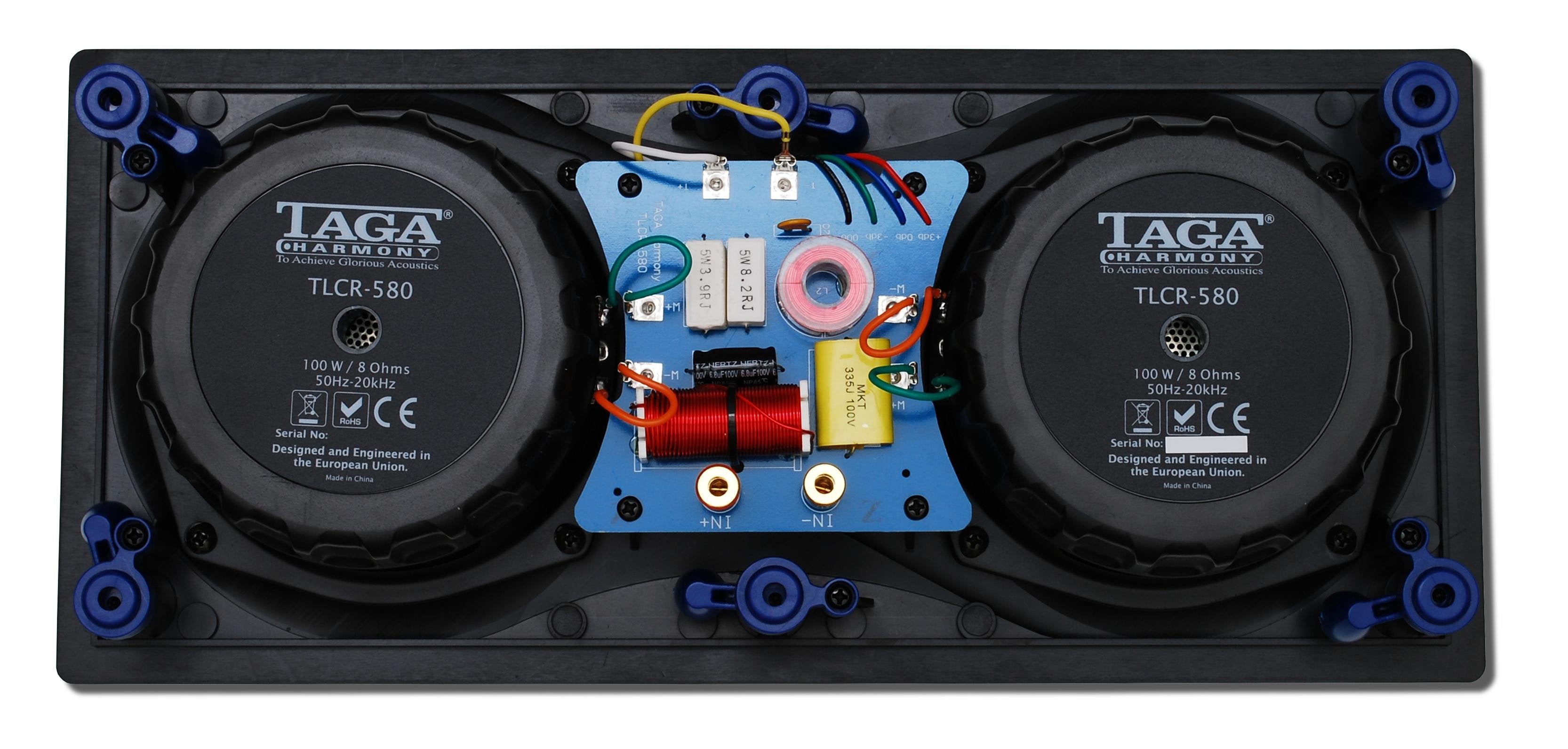

The TLCR-580 incorporates TAGA Harmony's rigid injection-moulded polymer chassis and specialised mounting brackets. Its construction is intended to minimise unwanted vibration and resonance while supporting secure architectural installation.

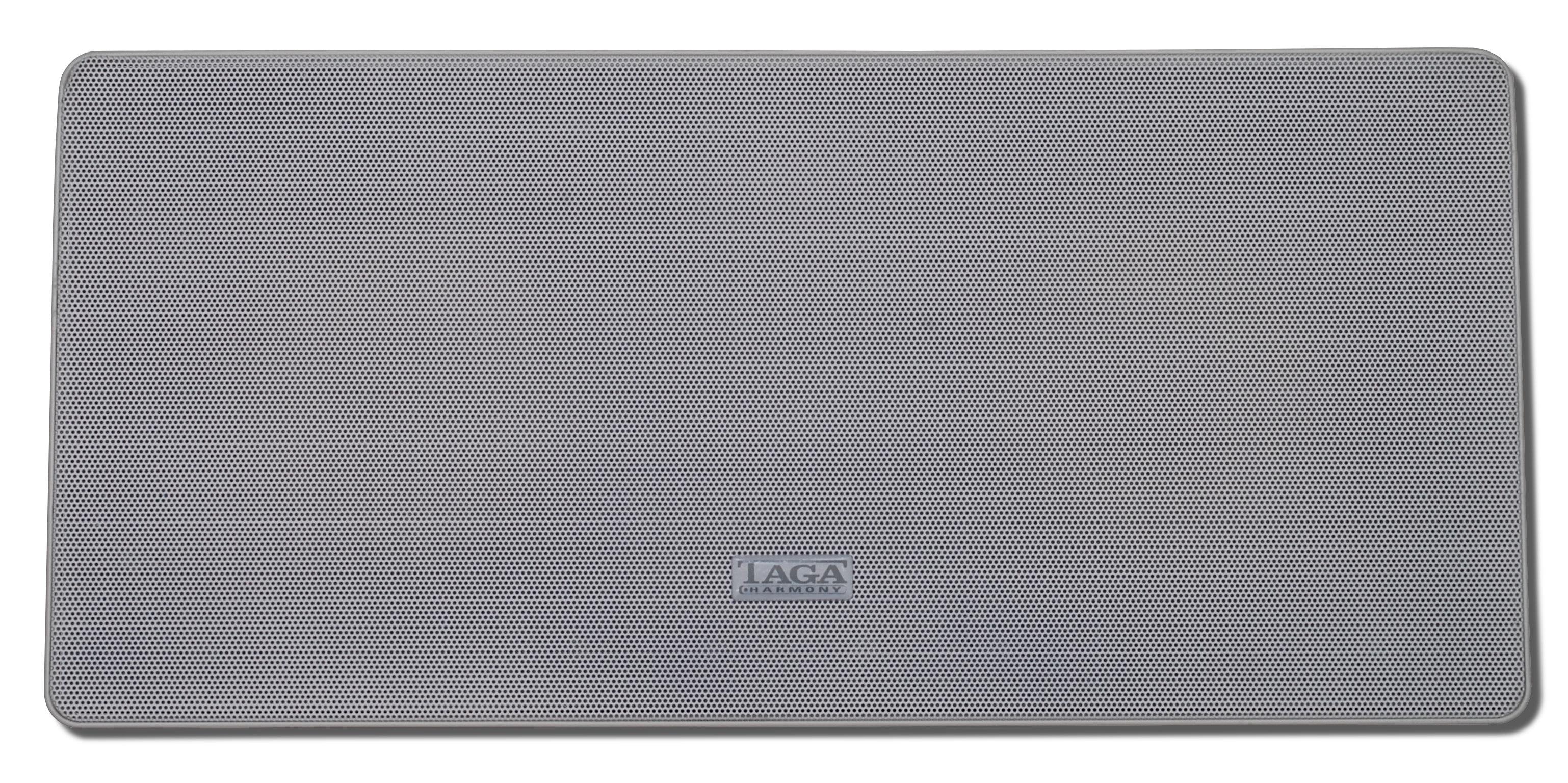

A low-profile, magnetically mounted grille helps the speaker blend into the surrounding wall. The paintable finish allows installers to coordinate the grille with the interior décor.
The swivel-mounted tweeter and ±3 dB treble adjustment provide additional flexibility for adapting high-frequency presentation to speaker placement and room acoustics.
Before installation, confirm the required wall cut-out, available mounting depth and suitability of the wall construction.
Features
-
Two-way passive in-wall LCR loudspeaker.
-
Suitable for left, centre or right channel use.
-
25 mm (1-inch) TPTTD titanium dome tweeter.
-
Two 133 mm (5.25-inch) Kevlar® bass/midrange drivers.
-
Swivel-mounted tweeter.
-
±3 dB treble adjustment switch.
-
TSLB low-profile magnetic grille.
-
Paintable grille and frame.
-
TIMPC injection-moulded polymer chassis.
-
TEI mounting brackets.
-
TEC speaker connection terminals.
-
Suitable for home audio, home theatre and commercial applications.
Specifications
-
Model: TLCR-580
-
Speaker Type: Two-way in-wall LCR loudspeaker
-
Maximum Power Handling: 100 W
-
RMS Power Handling: 75 W
-
Frequency Response: 50 Hz – 20 kHz
-
Nominal Impedance: 8 Ω
-
Sensitivity: 91 dB
-
Tweeter: 25 mm (1-inch) TPTTD titanium dome
-
Bass/Midrange Drivers: 2 × 133 mm (5.25-inch) Kevlar®
-
Tweeter Mounting: Swivel mount
-
Treble Adjustment: ±3 dB
-
Grille: TSLB low-profile magnetic, paintable
-
Chassis: TIMPC injection-moulded polymer
-
Dimensions (H × W × D): 38.6 × 17.5 × 8.2 cm
-
Cut-Out Dimensions (H × W): 36.5 × 15.5 cm
-
Minimum Mounting Depth: 7.8 cm
-
Weight: 2.75 kg per speaker
In The Box
Please confirm the supplied package contents with your distributor before publishing. The manufacturer lists the weight per speaker, so confirm whether your retail listing is for one speaker or a pair.
