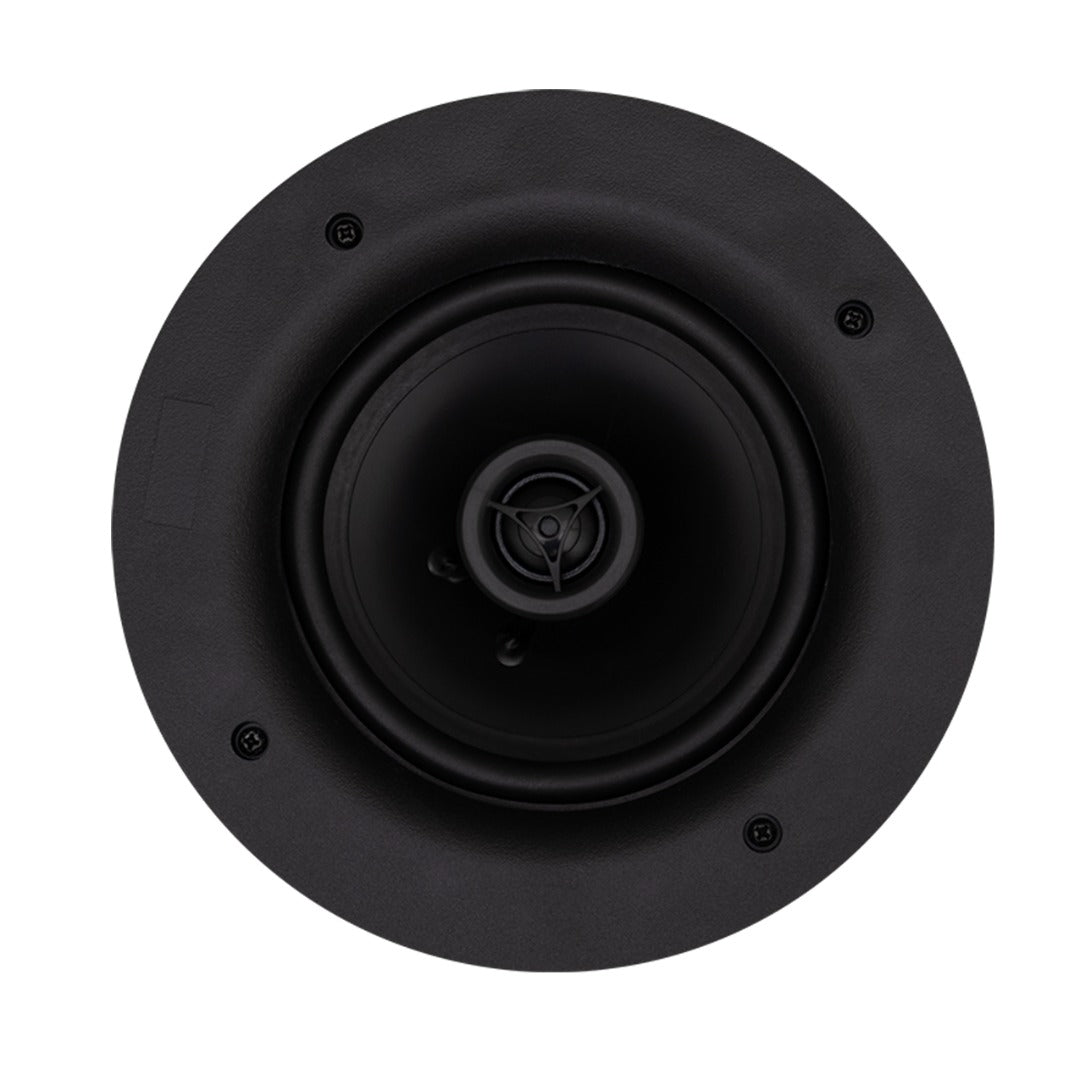

The TAGA Harmony TCW-290R is a discreet 2-way in-ceiling architectural speaker designed for music, home theatre and commercial audio installations. It combines a 6.5-inch polypropylene bass-midrange driver with a 19 mm silk dome swivel tweeter, delivering clear, natural and dynamic sound with wide dispersion.
The speaker is engineered around TAGA Harmony's rigid TIMPC injection-moulded polymer chassis, which is designed to minimise unwanted distortion, vibration and resonance. Its slim TSLB magnetic grille helps the speaker blend almost invisibly into the ceiling.
Key Features
-
2-Way In-Ceiling Design – Designed for music, home theatre and commercial audio applications.
-
6.5-inch Polypropylene Driver – Provides controlled bass and natural midrange reproduction.
-
19 mm Silk Dome Tweeter – Delivers smooth, clear and detailed high frequencies.
-
Swivel Tweeter – Allows the high-frequency output to be directed toward the preferred listening area.
-
TSLB Super Low-Profile Grille – Minimises the visible profile of the installed speaker.
-
Magnetic Paintable Grille – Can be painted to match the surrounding ceiling.
-
TIMPC Rigid Polymer Chassis – Helps minimise distortion, vibration and unwanted resonance.
-

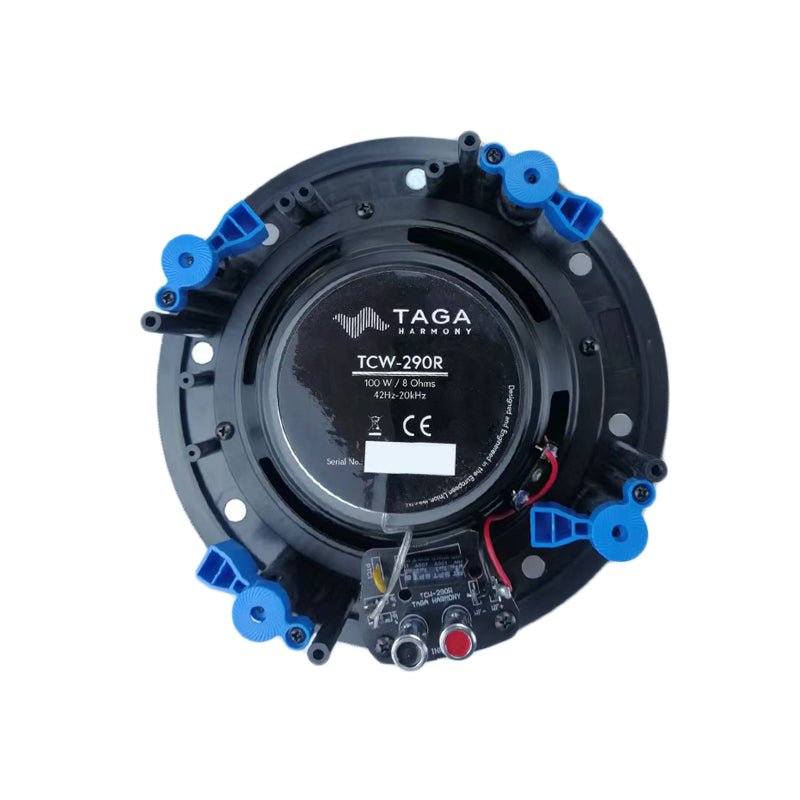

TEI Easy Install Brackets – Designed for straightforward and secure installation.
-
TEC Easy Connection Terminals – Accept raw speaker cable up to 10AWG as well as popular banana and pin connectors.
Discreet Architectural Design
The TCW-290R is designed for installations where high-quality audio needs to coexist with a clean interior aesthetic. Its super low-profile bezel and magnetically mounted grille allow the speaker to visually recede into the ceiling once installed.
The paintable grille makes it possible to match the speaker to the surrounding ceiling, making the TCW-290R particularly suitable for contemporary residential interiors and professionally designed commercial spaces.
Balanced 2-Way Performance
The 165 mm (6.5-inch) polypropylene bass-midrange driver is responsible for the lower and midrange frequencies, while the 19 mm silk dome tweeter handles high-frequency reproduction.
TAGA specifies a 42Hz–20kHz frequency response, 90dB sensitivity and 8Ω impedance, giving the TCW-290R a practical balance of efficiency and bandwidth for distributed audio and home theatre systems.
Directable High Frequencie
The silk dome tweeter features a swivel mount, allowing installers to slightly redirect high-frequency output toward the listening area.
This is useful when speaker placement cannot be perfectly aligned with the main listening position, helping optimise coverage throughout the room.
Easy & Secure Installation
The TCW-290R incorporates TAGA's TEI — TAGA Easy Install mounting brackets. The system is designed to make installation straightforward while providing secure retention of the speaker within the ceiling.
The rigid TIMPC chassis and specialised mounting system also contribute to the mechanical stability of the installed speaker.
Specifications
-
Model: TCW-290R
-
Design: 2-way in-ceiling speaker
-
Power Handling: 75W RMS / 100W MAX
-
Frequency Response: 42Hz–20kHz
-
Impedance: 8Ω
-
Sensitivity: 90dB
-
Tweeter: 19 mm (0.75") silk dome
-
Tweeter Mount: Swivel
-
Bass-Midrange Driver: 165 mm (6.5") polypropylene
-
Grille: TSLB magnetic, paintable
-
Mounting Brackets: TEI TAGA Easy Install
-
Chassis: TIMPC injection-moulded polymer
-
Terminals: TEC TAGA Easy Connection
-
Dimensions: 227 × 90 mm (diameter × depth)
-
Cutout Diameter: 210 mm
-
Minimum Mounting Depth: 95 mm
-
Weight: 1.3 kg per speaker
-
Finish: White / paintable grille
In The Box
-
TAGA Harmony TCW-290R in-ceiling speaker
-
Magnetic paintable grille
-
TEI mounting hardware
-
Installation documentation
Why Buy From Soundtrails
The TAGA Harmony TCW-290R is an excellent choice for customers looking for a discreet, reliable architectural speaker for whole-home audio, home theatre or commercial installations.
Its combination of a 6.5-inch polypropylene driver, silk dome swivel tweeter, low-profile magnetic grille and easy-install mounting system provides a practical balance of sound quality, installation flexibility and architectural aesthetics.
At SoundTrails, our Audio Video Architects can help with speaker positioning, amplifier matching, room coverage and professional installation to ensure the TCW-290R is properly integrated into the complete audio system.
