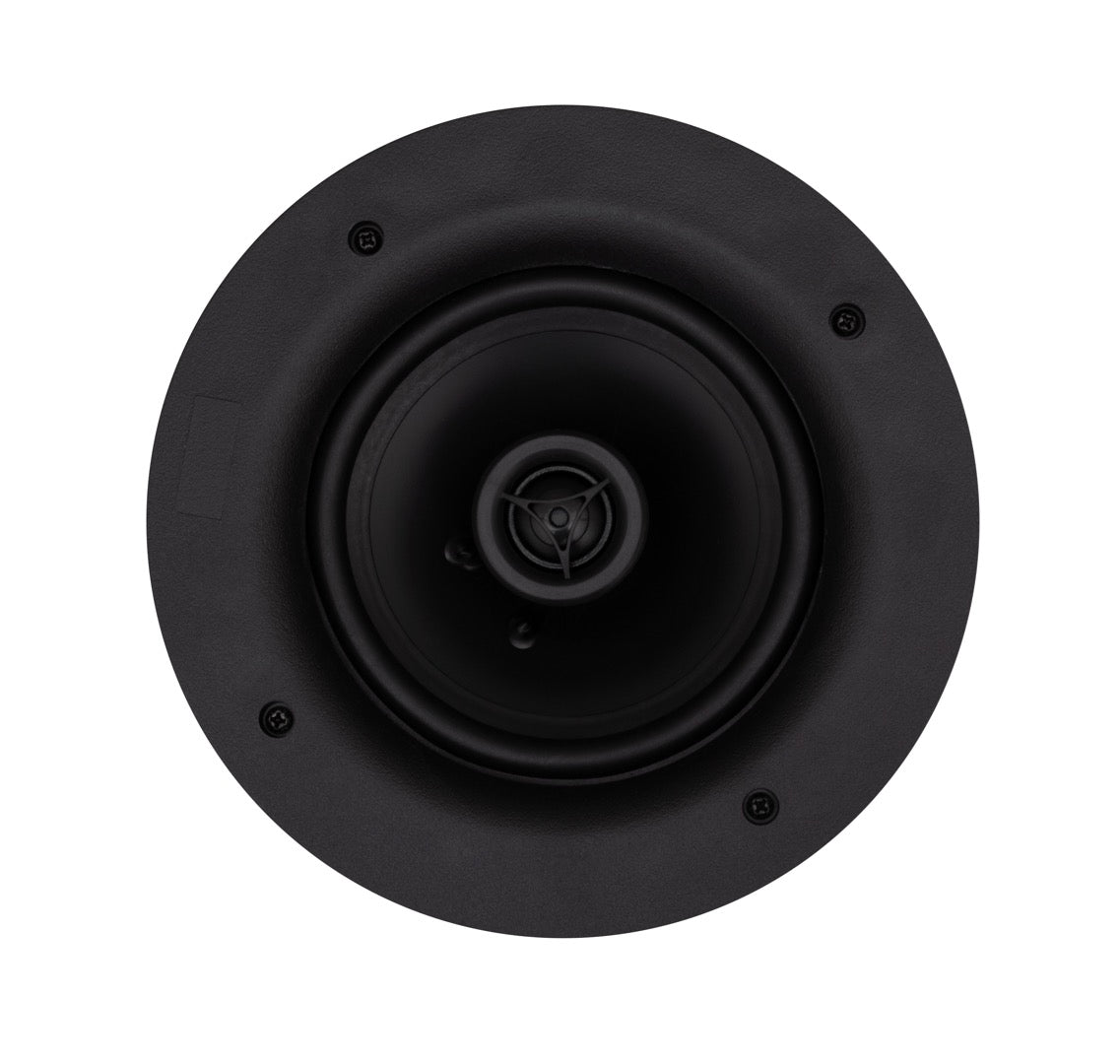

The TAGA Harmony TCW-190R is a compact 2-way in-ceiling architectural speaker designed to deliver clear, natural and dynamic sound while maintaining a discreet, low-visibility appearance. Its 5.25-inch polypropylene bass-midrange driver and swivel-mounted 19 mm silk dome tweeter provide wide, balanced sound dispersion throughout the listening area.
Designed for both residential and commercial installations, the TCW-190R combines TAGA Harmony’s rigid TIMPC injection-molded polymer chassis, TEI Easy Install mounting system and TSLB super low-profile magnetic grille for reliable performance, straightforward installation and a virtually seamless appearance once installed.
Discreet Architectural Design
The TCW-190R is designed to blend naturally into modern interiors. Its super low-profile TSLB bezel and magnetically mounted grille reduce the visible presence of the speaker, allowing it to visually disappear into the ceiling.
The paintable grille can also be finished to complement the surrounding décor.
Clear & Dynamic Sound
The speaker uses a 133 mm (5.25-inch) polypropylene bass-midrange driver combined with a 19 mm (0.75-inch) silk dome tweeter.
The swivel-mounted tweeter allows high-frequency output to be directed toward the preferred listening area, helping provide more controlled and consistent sound across the room.
With a 90 dB sensitivity and 46 Hz–20 kHz frequency response, the TCW-190R is well suited to distributed music, home audio and home theatre applications.
Rigid & Low-Resonance Construction
The TIMPC (TAGA Injection-Molded Polymer Chassis) provides a rigid and strong speaker structure designed to minimize unwanted distortion, vibrations and resonances.
This robust construction helps the speaker maintain clean and controlled performance while remaining suitable for architectural installation.
Simple & Secure Installation
The TEI (TAGA Easy Install) mounting system is designed to make installation straightforward and secure, including installation in darker ceiling spaces.

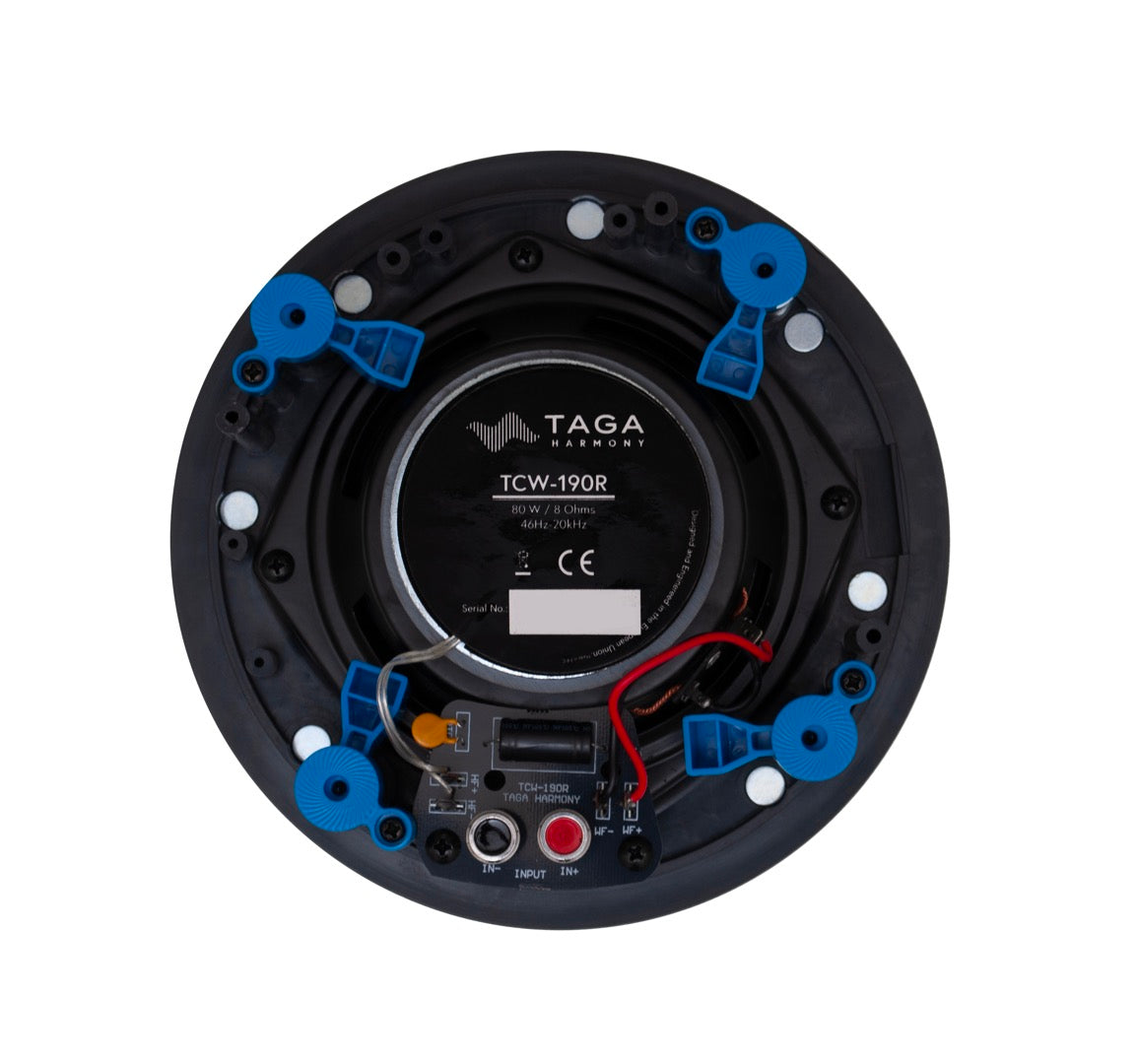

The TEC (TAGA Easy Connection) terminals provide a practical connection solution and accept speaker cables up to 10 AWG as well as popular banana and pin connectors.
Key Features
-
2-way in-ceiling architectural speaker
-
133 mm (5.25-inch) polypropylene bass-midrange driver
-
19 mm (0.75-inch) silk dome swivel tweeter
-
60W RMS power handling
-
80W maximum power handling
-
90 dB sensitivity
-
46 Hz–20 kHz frequency response
-
8 Ohm nominal impedance
-

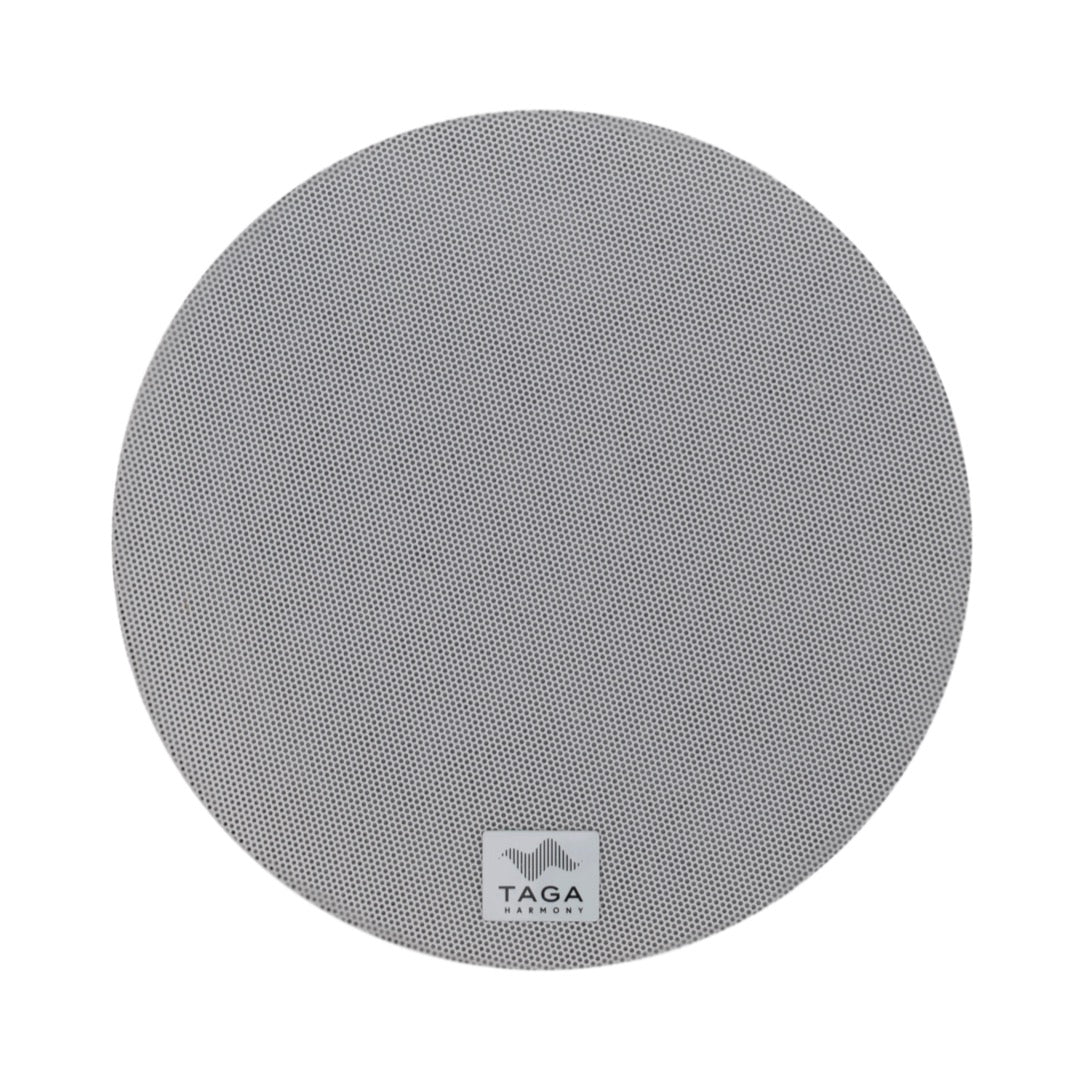

TSLB super low-profile magnetic grille
-
Paintable grille for discreet architectural integration
-
TIMPC rigid injection-molded polymer chassis
-
TEI TAGA Easy Install mounting system
-
TEC TAGA Easy Connection terminals
-
Suitable for home audio, home theatre and commercial applications
-
Designed for wide sound dispersion throughout the listening area
Specifications
-
Design: In-Ceiling, 2-Way
-
Power Handling: 60W RMS / 80W MAX
-
Frequency Response: 46 Hz – 20 kHz
-
Impedance: 8 Ohm
-
Sensitivity: 90 dB
-
High-Frequency Driver: 19 mm (0.75-inch) Silk Dome, Swivel Mount
-
Bass-Midrange Driver: 133 mm (5.25-inch) Polypropylene
-
Grille: TSLB Magnetically Mounted, Paintable
-
Mounting System: TEI TAGA Easy Install
-
Chassis: TIMPC Injection-Molded Polymer Chassis
-
Terminals: TEC TAGA Easy Connection
-
Cutout Diameter: 179 mm
-
Minimum Mounting Depth: 80 mm
-
Overall Dimensions: 196 mm × 75 mm (Diameter × Depth)
-
Weight: 1 kg per speaker
In The Box
-
TAGA Harmony TCW-190R in-ceiling speaker
-
Magnetic paintable grille
-
Installation mounting hardware
