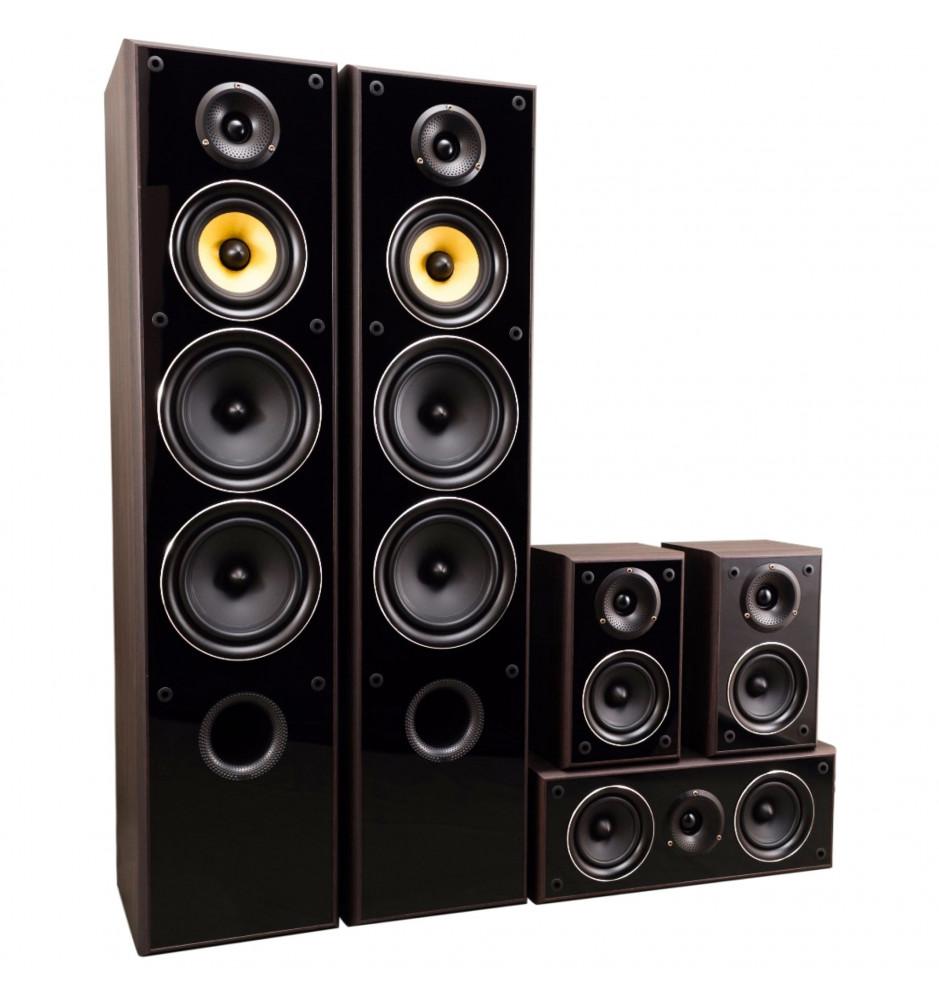

The TAGA Harmony TAV-606 V.3 5.0 Set is a complete passive loudspeaker package for customers building a dedicated home theatre or upgrading their existing entertainment system.
Its three-part speaker arrangement creates a clear front soundstage, with dedicated left and right floorstanding speakers supported by a centre channel for dialogue and two surround speakers for ambient effects. Revised cabinets, upgraded drivers and refined crossovers are central to the V.3 design.
Key Features
Dual Floorstanding Front Speakers
Two TAV-606F V.3 towers use a three-way, four-driver design with dual 165 mm bass drivers to deliver a substantial front soundstage and full-bodied music reproduction.
Dedicated Centre Channel
The TAV-606C V.3 uses dual 102 mm bass-midrange drivers and a 25 mm tweeter to anchor dialogue and on-screen sound to the action.
Bookshelf Surround Speakers
Two TAV-606S V.3 speakers provide surround-channel effects, adding a greater sense of space and atmosphere to movie soundtracks.
Cinematic Sound And Music Performance
The TAV-606 V.3 series is designed around natural playback, clear detail and dynamic sound reproduction. In a home theatre, the centre channel helps keep speech intelligible, while the front and surround speakers distribute soundtrack elements across the listening area.
For music, the floorstanding front pair can also form the foundation of a stereo listening system when connected to a compatible amplifier or AV receiver.
Driver Technology And Cabinet Design
The series uses TAGA's TWG WaveGuide tweeter design, intended to support even sound dispersion. The floorstanding speakers feature a silk-dome tweeter, a 133 mm midrange driver and two 165 mm bass drivers. The centre and surround models use matching 25 mm tweeters for a consistent family sound.
Specifications
Front speakers — 2 × TAV-606F V.3
- Design: 3-way floorstanding, four drivers
-
Tweeter: 25 mm silk dome with TWG WaveGuide
-
Midrange: 133 mm
-
Bass drivers: 2 × 165 mm
-
Frequency response: 40 Hz–25 kHz
-
Sensitivity: 90 dB
-
Nominal impedance: 6 Ω
-
Power handling: 90 W RMS
-
Recommended amplifier power: 20–120 W
-
Crossover frequencies: 500 Hz, 3.8 kHz
-
Dimensions (H × W × D): 98 × 23 × 25 cm, excluding spikes
-
Weight: 13.5 kg per speaker
Centre speaker — 1 × TAV-606C V.3
-
Design: 2-way, three drivers
-
Tweeter: 25 mm silk dome with TWG WaveGuide
-
Bass-midrange drivers: 2 × 102 mm
-
Frequency response: 55 Hz–25 kHz
-
Sensitivity: 88 dB
-
Nominal impedance: 6 Ω
-
Power handling: 50 W RMS
-
Recommended amplifier power: 20–100 W
-
Crossover frequency: 4.5 kHz
-
Dimensions (H × W × D): 16.5 × 43 × 14.5 cm
-
Weight: 3.32 kg
Surround speakers — 2 × TAV-606S V.3
-
Design: 2-way bookshelf, two drivers
-
Tweeter: 25 mm silk dome with TWG WaveGuide
-
Bass-midrange driver: 102 mm
-
Frequency response: 55 Hz–25 kHz
-
Sensitivity: 86 dB
-
Nominal impedance: 6 Ω
-
Power handling: 50 W RMS
-
Recommended amplifier power: 20–100 W
-
Crossover frequency: 4.5 kHz
-
Dimensions (H × W × D): 26.5 × 16.5 × 14.5 cm
-
Weight: 2.34 kg per speaker
In The Box
-
The standard 5.0 package comprises:
-
2 × TAGA Harmony TAV-606F V.3 floorstanding speakers
-
1 × TAGA Harmony TAV-606C V.3 centre speaker
-
2 × TAGA Harmony TAV-606S V.3 surround speakers
