Dynamic Home Theatre Sound With Refined Stereo Performance

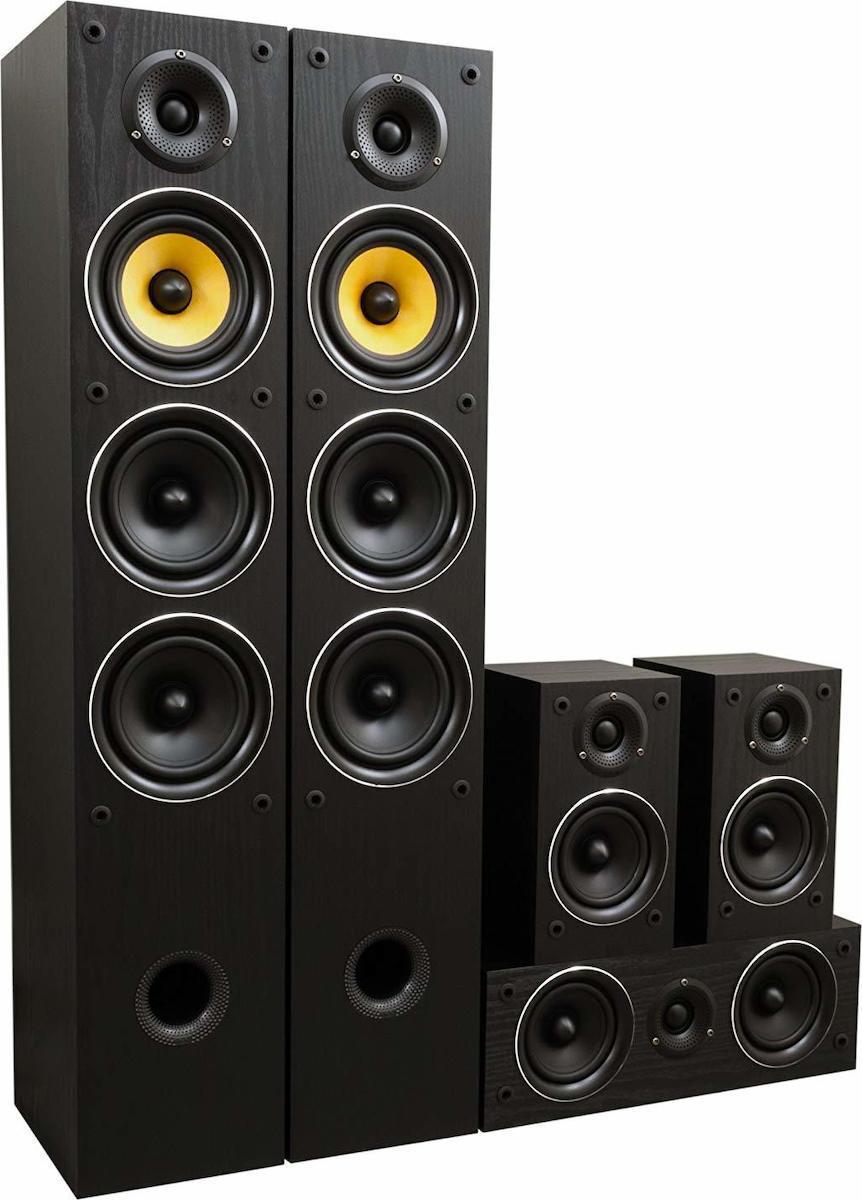

The TAGA Harmony TAV-506 V.2 is a complete 5.0-channel speaker package designed for listeners who want immersive home theatre performance without compromising their enjoyment of music. Combining floorstanding front speakers, a dedicated centre speaker and matching surround speakers, this system creates a cohesive soundstage for films, television and stereo listening.
Featuring a redesigned speaker construction, carefully selected drivers and TAGA Harmony's TWG tweeter technology, the TAV-506 V.2 aims to deliver clear dialogue, detailed high frequencies and a balanced, dynamic presentation. Its classic styling makes it a versatile addition to dedicated entertainment rooms and contemporary living spaces.
Key Features
-
Complete 5.0-Channel System – Includes two floorstanding front speakers, one centre speaker and two surround speakers.
-
Three-Way Floorstanding Front Speakers – Combine dedicated high-, mid- and low-frequency drivers for a full-bodied presentation.
-
TWG Silk Dome Tweeters – Designed to deliver clear, smooth and detailed high-frequency reproduction.
-
Dedicated Centre Channel – Supports clear dialogue and focused on-screen sound.
-
Matching Surround Speakers – Help create a more enveloping home theatre experience.
-
TLIE Cabinet Construction – TAGA Low Interference Enclosures are designed to improve cabinet stiffness and reduce unwanted resonances.
Designed For Home Theatre And Music
The TAV-506 V.2 is designed to serve both movie enthusiasts and music lovers. Its floorstanding front speakers provide the foundation for stereo listening, while the centre and surround speakers expand the system into a dedicated multichannel setup.
Whether enjoying films, streaming television or listening to music, the five-speaker configuration creates a more spacious and engaging listening experience than a conventional stereo arrangement.
Clear Dialogue And Immersive Surround Sound
The dedicated centre speaker helps anchor dialogue to the screen, making conversations easier to follow during films and television programmes. Matching surround speakers extend sound around the listening area, adding atmosphere and directional effects to compatible multichannel content.
For the best results, pair the system with a compatible AV receiver and position each speaker according to your room layout and listening position.
Engineered For Balanced Performance
The front speakers use a three-way, four-driver configuration, while the centre and surround speakers employ dedicated two-way designs. TAGA Harmony's TWG waveguide faceplate is intended to support consistent high-frequency dispersion, and the TLIE cabinet design helps control unwanted enclosure vibrations.
Together, these design elements are intended to deliver a smooth, detailed and dynamic presentation for everyday listening and home entertainment.
Features
-
Passive 5.0-channel speaker package.
-
Two three-way floorstanding front speakers.
-
One two-way centre speaker with three drivers.
-
Two two-way surround speakers.
-
25 mm TWG silk dome tweeters.
-
Dual 133 mm bass drivers in each front speaker.
-
133 mm midrange driver in each front speaker.
-
Dual 102 mm bass-midrange drivers in the centre speaker.
-
102 mm bass-midrange driver in each surround speaker.
-
TLIE cabinet construction in the front speakers.
-
Front and rear bass-reflex designs according to speaker position.
-
Available finishes vary by market and stock availability.
Specifications
Front Speakers — TAV-506F V.2
-
Design: Three-way, floorstanding, four drivers.
-
Frequency response: 42 Hz – 25 kHz.
-
Sensitivity: 89 dB.
-
Impedance: 6 ohms.
-
Recommended amplifier power: 20 – 120 W.
-
Rated power handling: 90 W RMS.
-
Tweeter: 25 mm TWG silk dome.
-
Midrange driver: 133 mm.
-
Bass drivers: 2 × 133 mm.
-
Dimensions (H × W × D): 900 × 170 × 235 mm, excluding spikes.
-
Weight: 10.2 kg per speaker.
Centre Speaker — TAV-506C V.2
-
Design: Two-way, three drivers.
-
Frequency response: 55 Hz – 25 kHz.
-
Sensitivity: 88 dB.
-
Impedance: 6 ohms.
-
Recommended amplifier power: 20 – 100 W.
-
Rated power handling: 50 W RMS.
-
Tweeter: 25 mm TWG silk dome.
-
Bass-midrange drivers: 2 × 102 mm.
-
Dimensions (H × W × D): 140 × 400 × 145 mm.
-
Weight: approximately 2.8 kg per speaker.
Surround Speakers — TAV-506S V.2
-
Design: Two-way, two drivers.
-
Frequency response: 55 Hz – 25 kHz.
-
Sensitivity: 86 dB.
-
Impedance: 6 ohms.
-
Recommended amplifier power: 20 – 100 W.
-
Rated power handling: 50 W RMS.
-
Tweeter: 25 mm TWG silk dome.
-
Bass-midrange driver: 102 mm.
-
Dimensions (H × W × D): 245 × 140 × 145 mm.
-
Weight: approximately 1.75 kg per speaker.
In The Box
-
2 × TAGA Harmony TAV-506F V.2 floorstanding speakers.
-
1 × TAGA Harmony TAV-506C V.2 centre speaker.
-
2 × TAGA Harmony TAV-506S V.2 surround speakers.
