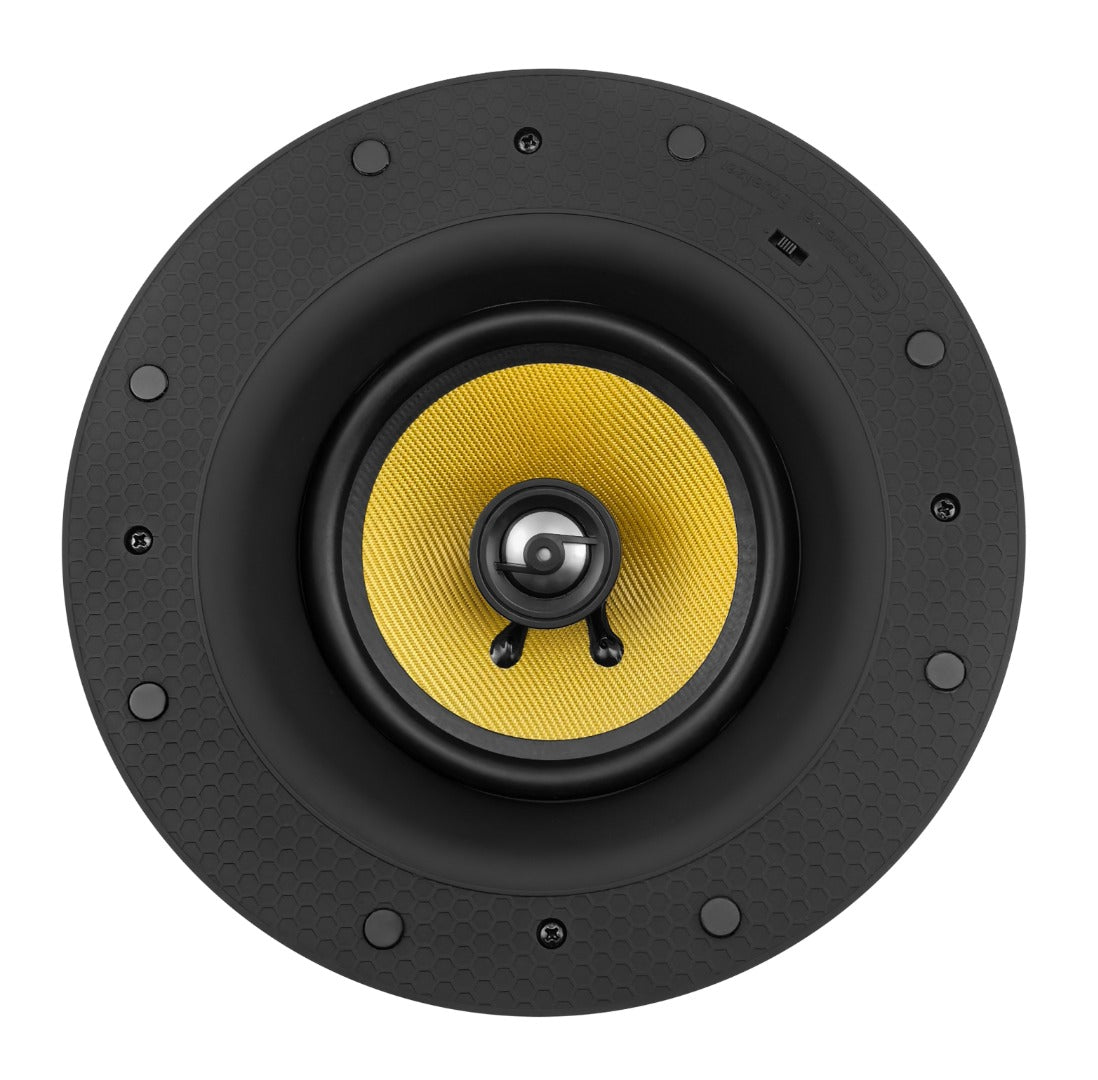

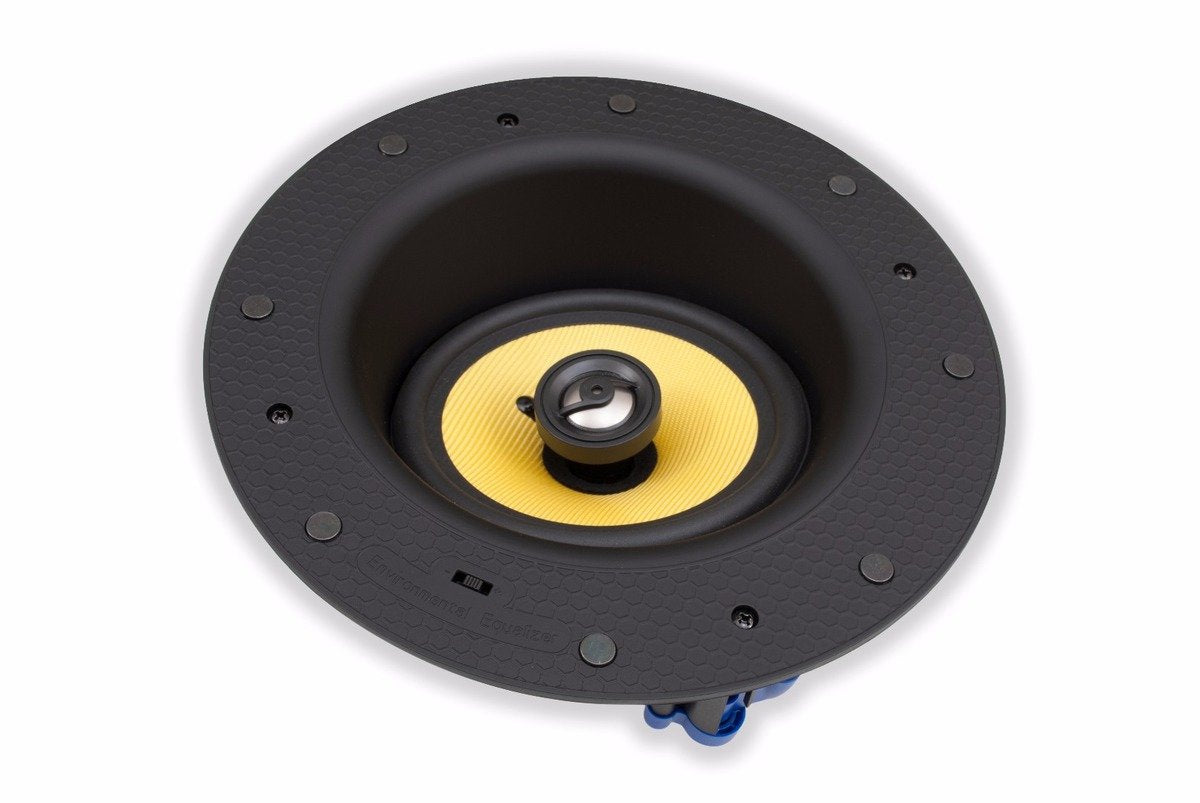

The TAGA Harmony RB-850 v.2 is a high-performance 2-way in-ceiling architectural speaker designed for music, home theatre and commercial audio installations. Its 13° tilted driver assembly helps direct sound across the listening area, making it particularly suitable for applications where conventional flat in-ceiling speakers may not provide the desired coverage.
The speaker combines a 165 mm (6.5") Kevlar® bass-midrange driver with a 25 mm (1") TAGA Pure Titanium Tweeter Dome (TPTTD), delivering a claimed frequency response of 37Hz–25kHz, 90dB sensitivity and 100W RMS power handling.
Key Features
-
2-Way In-Ceiling Design – Designed for high-quality distributed music and home theatre applications.
-
13° Tilted Driver Assembly – Angles the drivers toward the listening area for improved sound coverage.
-
6.5" Kevlar® Driver – Provides controlled bass and detailed midrange reproduction.
-
1" TPTTD Tweeter – TAGA Pure Titanium Tweeter Dome for accurate, clear and detailed high frequencies.
-
Swivel Tweeter – Allows high-frequency output to be directed toward the preferred listening area.
-
±3dB Treble Switch – Provides adjustment to compensate for speaker positioning and room characteristics.
-
TSLB Super Low-Profile Bezel – Creates a discreet architectural appearance once installed.
-
Magnetic Paintable Grille – Allows the speaker to blend into the ceiling décor.
-
TEI Easy Install Mounting System – Designed for straightforward and secure installation.
-
TIMPC Rigid Chassis – Helps minimise unwanted vibration, distortion and resonance.
-
TEC Easy Connection Terminals – Designed to simplify speaker-cable connection.
Designed For Wide Sound Coverage
The RB-850 v.2 is particularly suited to installations where the direction of sound matters. Its 13° driver tilt is designed to improve dispersion throughout the listening area and makes the speaker suitable for front, centre and surround applications in home theatre systems.
The angled configuration can also be useful in rooms where the listening position is not directly beneath the speaker.
Detailed & Powerful Sound
The 165 mm Kevlar® bass-midrange driver provides the foundation for the speaker's low and mid frequencies, while the 25 mm TPTTD titanium tweeter handles high-frequency reproduction.
TAGA specifies a 37Hz–25kHz frequency response, 90dB sensitivity and 100W RMS / 130W maximum power handling, giving the RB-850 v.2 the capability to deliver substantial output from a relatively discreet architectural enclosure.
Flexible High-Frequency Control
The swivel-mounted TPTTD tweeter allows the high-frequency output to be aimed toward a selected area of the room. A ±3dB treble switch provides additional adjustment, helping compensate for speaker placement and room characteristics.
This combination makes the RB-850 v.2 particularly practical for professional installations where speaker positioning and room acoustics need to be considered during system design.
Discreet Architectural Installation

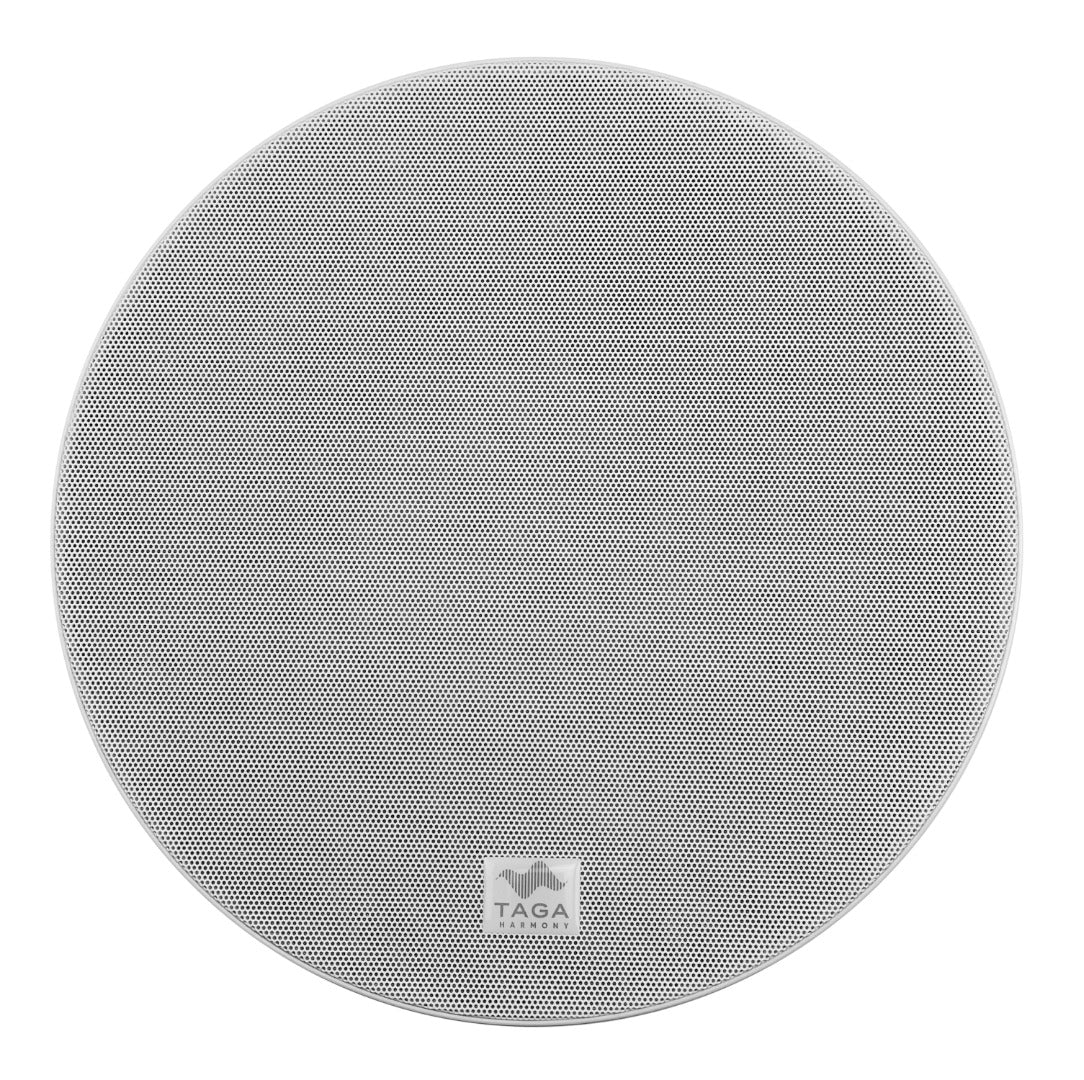

TAGA's TSLB — TAGA Super Low-profile Bezel is designed to reduce the visible profile of the speaker once installed. The magnetic grille is paintable, allowing it to be matched to the surrounding ceiling.
The TIMPC injection-moulded polymer chassis provides a rigid platform designed to minimise unwanted vibration, distortion and resonance, while the TEI mounting system provides a secure installation method.
Specifications
-
Model: RB-850 v.2
-
Design: 2-way in-ceiling speaker
-
Driver Orientation: 13° tilted
-
Power Handling: 100W RMS / 130W MAX
-
Frequency Response: 37Hz–25kHz
-
Impedance: 8Ω
-
Sensitivity: 90dB
-
Tweeter: 25mm (1") TPTTD
-
Tweeter Mount: Swivel
-
Treble Adjustment: ±3dB
-
Bass-Midrange Driver: 165mm (6.5") Kevlar®
-
Grille: TSLB magnetically mounted, paintable
-
Mounting System: TEI
-
Chassis: TIMPC
-
Terminals: TEC
-
Dimensions: 260 × 120mm
-
Cutout Diameter: 245mm
-
Minimum Mounting Depth: 122mm
-
Weight: 1.8kg per speaker
-
Finish: White / paintable grille
In The Box
Why Buy From Soundtrails
The TAGA Harmony RB-850 v.2 is an excellent choice when a project requires discreet architectural speakers with strong output, directional flexibility and professional installation features.
Its combination of a 13° tilted driver assembly, Kevlar® bass-midrange driver, titanium tweeter, adjustable treble response and low-profile magnetic grille makes it particularly well suited to carefully designed home theatre and distributed-audio installations.
