The TAGA Harmony RB-1650BT is a discreet, high-performance in-ceiling active speaker system designed for residential and commercial audio installations. The system combines a built-in Class D stereo amplifier, Bluetooth wireless streaming and wired stereo inputs with a 6.5-inch Kevlar® bass-midrange driver and 1-inch TPTTD swivel tweeter.
Supplied as a master-and-slave speaker system, the RB-1650BT provides 2 × 30W RMS amplification and is designed for applications including whole-home audio, background music, home theatre, restaurants, retail spaces, conference rooms, fitness facilities and classrooms.
Key Features
-
Built-in Stereo Amplifier – Delivers 2 × 30W RMS with up to 110W dynamic peak power.
-
Bluetooth® 4.0 – Enables convenient wireless music streaming from compatible smartphones, tablets and computers.
-
6.5-inch Kevlar® Driver – Provides controlled and articulate bass and midrange reproduction.
-
1-inch TPTTD Tweeter – TAGA Pure Titanium Tweeter Dome delivers detailed and clear high-frequency performance.
-
Swivel Tweeter – Allows high frequencies to be directed toward the preferred listening area.
-
RCA / 3.5mm Line Input – Supports wired connection of analogue sources.
-
Daisy-Chain Capability – Multiple RB-1650BT systems can be linked for larger distributed-audio installations.
-
RS-232 Integration – Provides connectivity for compatible control and automation systems.
-
Front & Rear IR Receivers – Supports remote and wired control-system integration.
-
Auto Standby – Automatically switches the amplifier on when an audio signal is detected and can enter standby after inactivity.
-
Bass & Treble Controls – Allows the tonal balance to be adjusted for the installation environment.
-

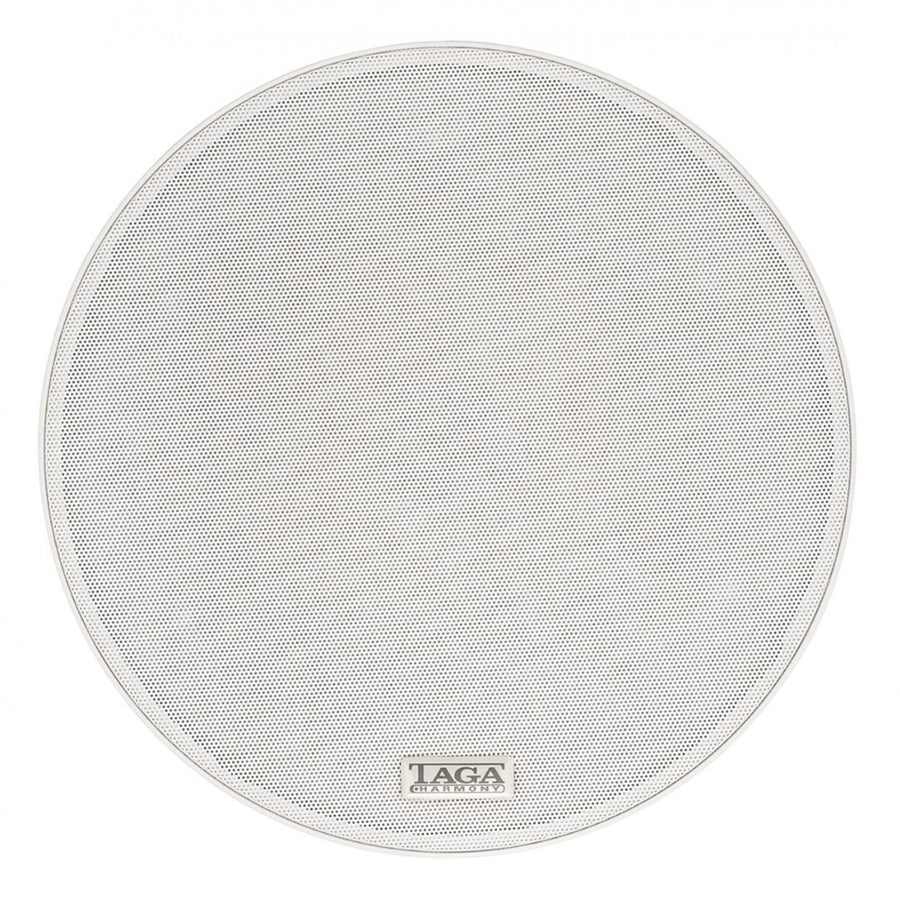

Paintable Magnetic Grille – Reduced-bezel grille integrates discreetly into the ceiling and can be painted to match the room.
-
TEI Easy Install Mounting System – Designed to simplify and secure installation.
Discreet Architectural Design
The RB-1650BT is designed to provide high-quality distributed audio without dominating the interior. Its reduced-bezel, magnetically mounted grille sits discreetly within the ceiling, while the paintable finish allows the grille to blend with the surrounding décor.
The system is particularly well suited to living spaces, restaurants, retail environments, offices, classrooms and other areas where audio performance needs to coexist with a clean architectural appearance.
Powerful Active Audio System
Unlike conventional passive architectural speakers that require a separate external amplifier, the RB-1650BT incorporates a dedicated stereo amplifier into the active speaker.
Its HPCDA Class D amplifier provides 2 × 30W RMS, giving the system a practical all-in-one architecture for distributed audio installations while reducing the need for additional amplification equipment.
Detailed Sound With Kevlar® & Titanium

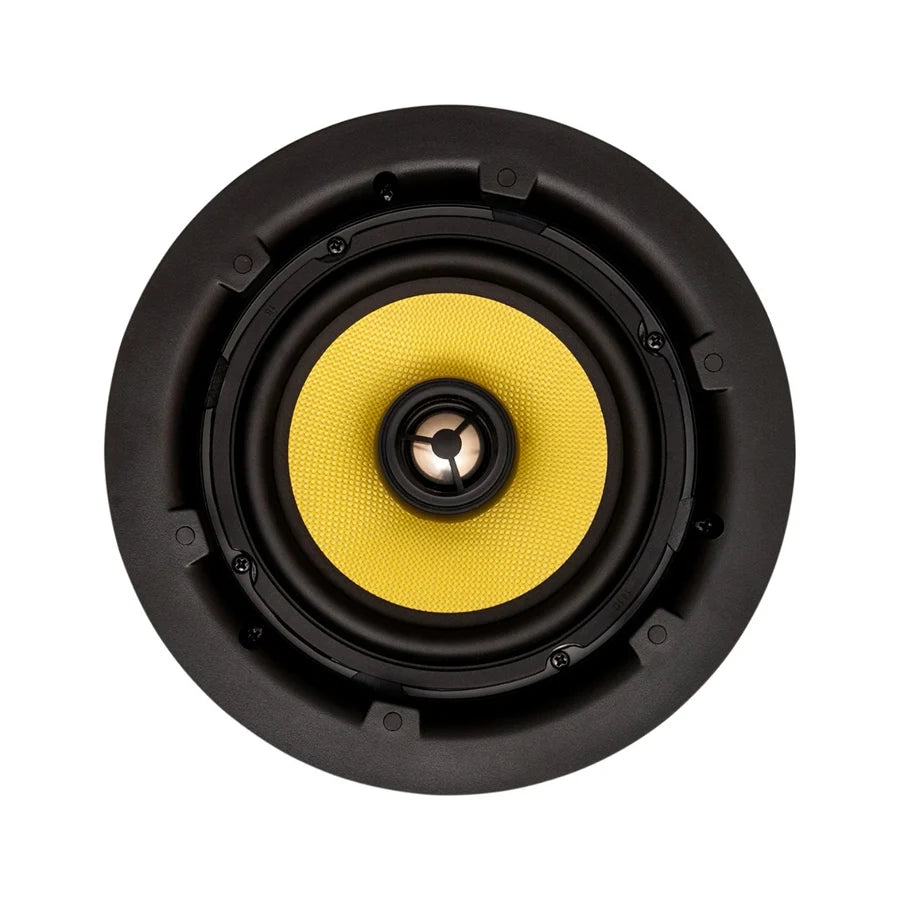

The speaker combines a 165 mm (6.5-inch) Kevlar® bass-midrange driver with a 25 mm (1-inch) TPTTD swivel tweeter.
The Kevlar® driver handles bass and midrange reproduction, while the TPTTD tweeter is designed for clear, detailed high-frequency reproduction. The swivel mechanism allows the tweeter to be aimed toward a selected listening area, helping optimise high-frequency coverage after installation.
Flexible Connectivity & System Integration
The RB-1650BT supports both wireless and wired audio sources. Bluetooth® 4.0 provides convenient wireless playback, while the stereo RCA / 3.5mm line input allows connection of traditional analogue sources.
For larger installations, the system provides a line output for daisy-chaining additional RB BT speaker systems. RS-232 connectivity, front and rear IR receivers, Bluetooth priority and programmable Auto Standby functions further support integration into sophisticated AV and automation environments.
Easy Installation

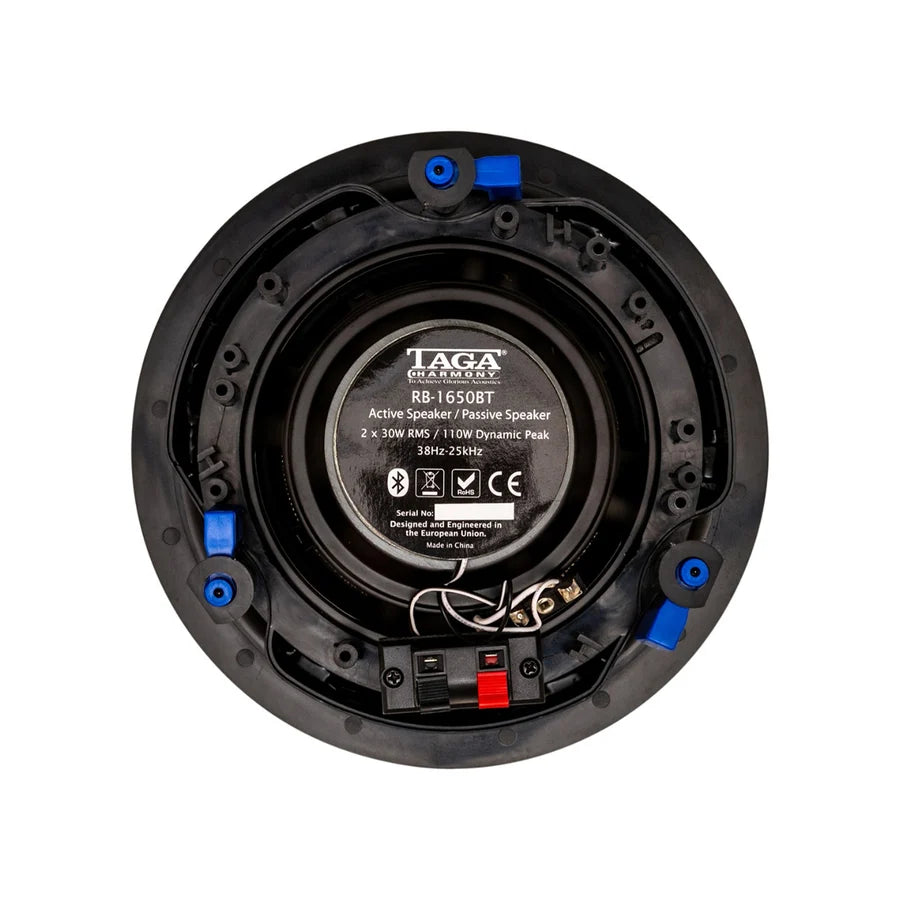

TAGA Harmony's TEI – TAGA Easy Install mounting system is designed to make installation straightforward and secure. The visible blue ABS clamps can also help installers identify the mounting mechanism in darker installation locations.
The reduced-bezel magnetic grille can be removed for installation and painted to match the ceiling before being reinstalled, helping achieve a clean architectural finish.
Specifications
-
Model: RB-1650BT
-
System Type: In-ceiling active speaker system with Bluetooth®
-
System Configuration: 1 active/master speaker + 1 passive/slave speaker
-
Amplifier Power: 2 × 30W RMS
-
Dynamic Peak Power: 110W
-
Amplifier Type: HPCDA Class D
-
Wireless Connectivity: Bluetooth® v4.0
-
Frequency Response: 38Hz – 20kHz
-
Impedance: 8Ω
-
Sensitivity: 89dB (1W / 1m)
-
Tweeter: 25mm (1") TPTTD, swivel mount
-
Bass/Midrange Driver: 165mm (6.5") Kevlar®
-
Analogue Input: Stereo RCA / 3.5mm
-
Input Sensitivity: 400mV
-
THD: ≤0.2%
-
Signal-to-Noise Ratio: ≥92dB
-
Cutout Diameter: 198mm
-
Minimum Mounting Depth: 130mm
-
Speaker Dimensions: 230 × 95mm
-
Power Requirement: DC 24V, 3A
-
Power Consumption: 70W
-
Active Speaker Weight: 1.3kg
-
Passive Speaker Weight: 1.2kg
-
Finish: White, paintable grille
-
Control & Installation Features
-
Bass / Treble adjustment
-
Bluetooth priority function
-
Programmable Auto Standby
-
Front and rear IR receivers
-
RS-232 terminal with Phoenix connector
-
Remote control
-
Daisy-chain connection
-
Magnetic paintable grille
-
TEI Easy Install mounting brackets
-
TIMPC rigid injection-moulded polymer chassis
In The Box
-
1 × Active (Master) Speaker
-
1 × Passive (Slave) Speaker
-
Remote Controller
-
Cut-out Template
-
Speaker Cable
-
Power Adapter with DC Cable
-
Power Cable
-
Instruction Manual
Why Buy From Soundtrails
The TAGA Harmony RB-1650BT is an excellent solution when you need discreet architectural audio with built-in amplification and flexible connectivity. Its combination of Bluetooth streaming, analogue inputs, system integration, daisy-chain capability and architectural installation features makes it particularly suitable for both residential and commercial distributed-audio projects.
At SoundTrails, our Audio Video Architects can help with speaker placement, amplifier and source integration, multi-room audio design and professional installation to ensure the RB-1650BT performs correctly within your complete audio system.
