Premium Three-Way Audio For Immersive Home Theatre
The TAGA Harmony PLATINUM LCRS v.4 is a premium three-way, four-driver on-wall loudspeaker designed for high-performance home theatre and multichannel audio systems. Part of TAGA Harmony’s Platinum v.4 series, it combines advanced titanium tweeter technology, aluminium-cone drivers, carefully engineered crossover sections and a rigid, resonance-controlled enclosure.
Designed for Left, Centre, Rear and Surround channel applications, the PLATINUM LCRS v.4 offers installation flexibility for dedicated cinema rooms and stylish living spaces. Its dual front bass-reflex ports, magnetic grille and horizontal or vertical wall-mounting options make it a versatile choice for installations where performance and clean aesthetics matter.
Key Features
-
Premium Three-Way, Four-Driver Design – A dedicated tweeter, midrange driver and dual bass drivers are designed to deliver detailed, dynamic and balanced sound reproduction.
-
25 mm Titanium Dome Tweeter – Second-generation TPTTD-I technology is engineered for detailed, airy high frequencies, while the TWG-I waveguide helps distribute sound more evenly on and off axis.
-
Dedicated 133 mm Aluminium Midrange Driver – The TPACD-II driver is designed to reproduce vocals, dialogue and musical detail with clarity and natural tonal character.
-
Dual 165 mm Aluminium Bass Drivers – Two TPACD-II drivers provide the foundation for impactful, controlled bass and dynamic cinematic playback.
-
Dual Front Bass-Reflex Ports – TAGA Harmony’s BOM design uses a low-turbulence port arrangement to support low-frequency output and dispersion.
-
TLIE-II Enclosure – A rigid cabinet with thick MDF panels and internal damping is designed to reduce unwanted resonance and improve sound consistency.
-
Ogrodnik Crossovers – Specially designed crossover sections help integrate the drivers for a coherent, precise presentation.
-
Flexible Wall Mounting – Suitable for horizontal or vertical installation in Left, Centre, Rear or Surround channel positions.
-

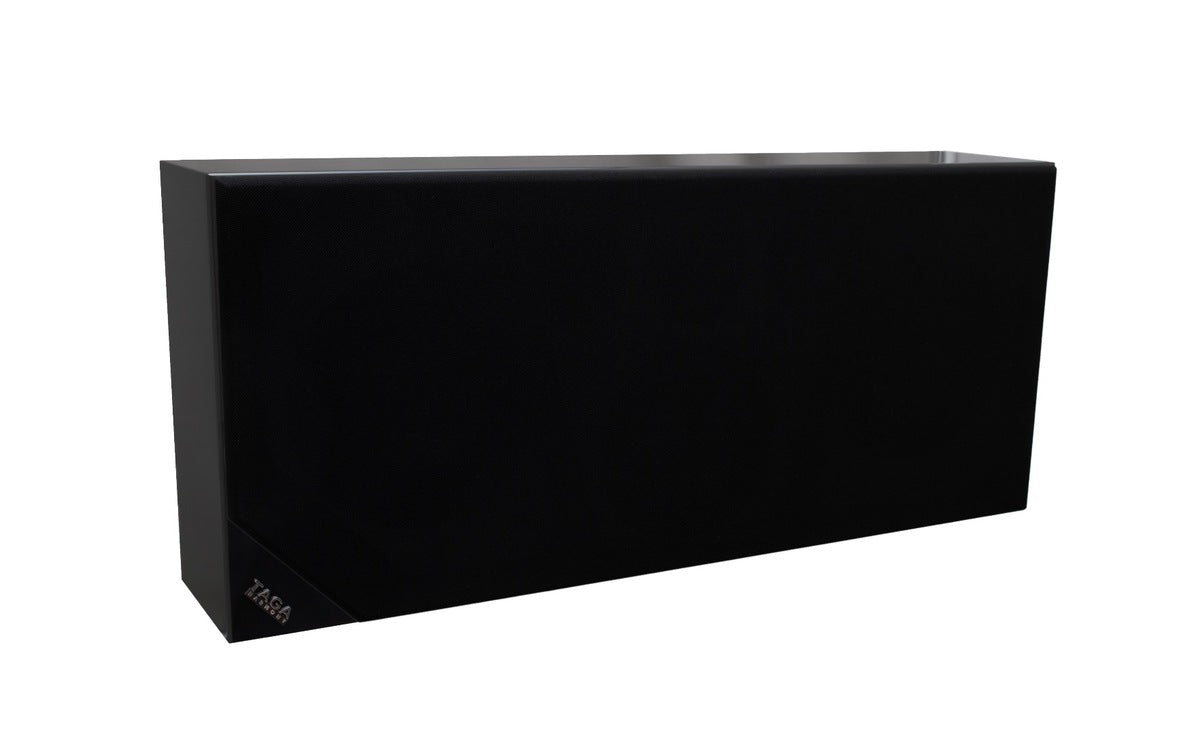

Magnetic Grille – Provides a clean, understated appearance and can be removed when preferred.
Designed For Immersive Home Theatre
The PLATINUM LCRS v.4 is designed for home theatre systems that demand convincing dialogue, detailed effects and dynamic musical reproduction without requiring conventional floorstanding speakers in every position.
Its three-way architecture assigns high-frequency, midrange and bass reproduction to dedicated drivers. This design supports clear dialogue and vocal detail alongside the scale and impact required for cinematic soundtracks. The model’s LCRS configuration also offers flexibility for system designers planning front-channel or surround-channel installations.
With support for horizontal and vertical mounting, the speaker can be positioned to suit the room layout, screen placement and listening area. Correct placement and calibration remain important for achieving balanced coverage and seamless integration with the other speakers in the system.
Detailed Highs, Natural Midrange And Controlled Bass
At the top end, the 25 mm TPTTD-I titanium dome tweeter works with TAGA Harmony’s TWG-I waveguide to support detailed high-frequency reproduction and broad sound dispersion.
The 133 mm TPACD-II aluminium-cone midrange driver is designed to provide smooth, articulate reproduction of dialogue, vocals and instruments. Two 165 mm TPACD-II aluminium-cone bass drivers extend the system’s output into the lower frequencies, helping deliver weight and impact for action sequences and music.
TAGA Harmony specifies a frequency response of 38 Hz–40 kHz and sensitivity of 90 dB. With a recommended amplifier power range of 20–220 W and a published power-handling rating of 150 W RMS, the speaker is intended for use with a suitably matched amplifier or AV receiver.
Engineered Enclosure And Precision Crossovers
The PLATINUM LCRS v.4 uses TAGA Harmony’s third-generation TLIE-II enclosure design. The manufacturer specifies an 18 mm front baffle and 15 mm cabinet walls, together with internal damping material intended to reduce standing waves and unwanted resonances.
Its Ogrodnik crossover sections are designed by Polish loudspeaker designer Arek Ogrodnik. Carefully selected components are used to support driver integration, tonal neutrality and precise reproduction.
The internal wiring uses multi-stranded oxygen-free copper, while gold-plated speaker terminals accept bare speaker cable up to 10 AWG and commonly used connector types. These construction details complement the speaker’s driver and enclosure design.
Flexible Installation And Refined Design
The PLATINUM LCRS v.4 is intended for installations where high-performance sound must work with the room’s interior design. Its wall-mounting arrangement supports horizontal or vertical positioning, and the magnetically mounted grille helps maintain a clean appearance.

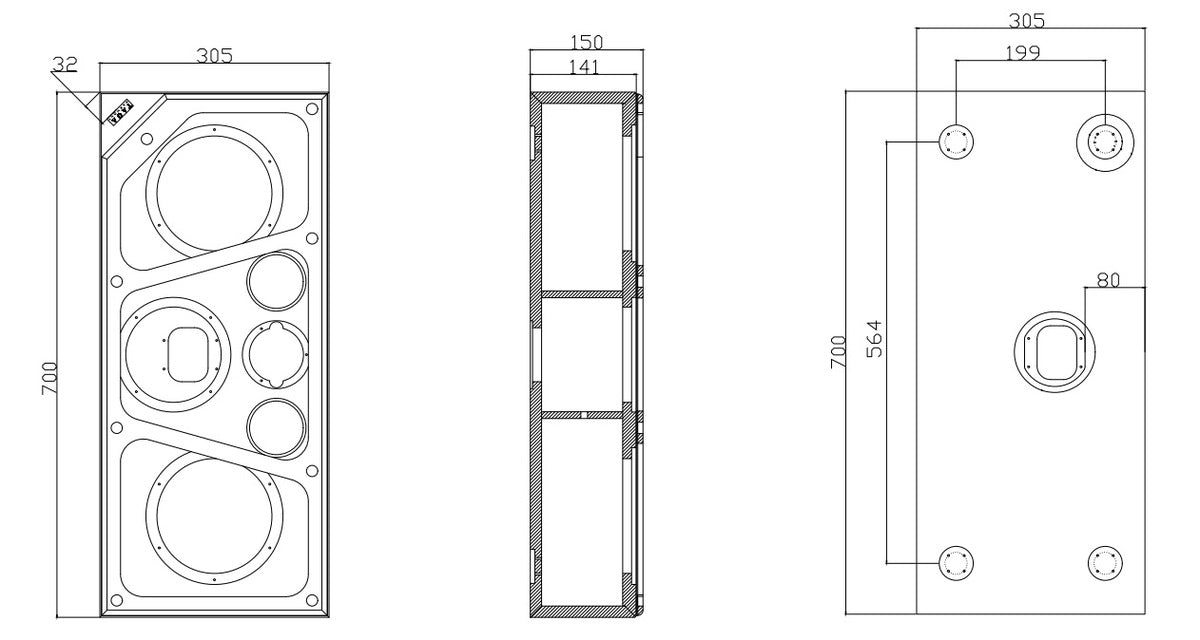

The enclosure measures 70 × 30.5 × 15 cm with the grille fitted in the specified vertical orientation and weighs approximately 12 kg per speaker. Before installation, confirm wall strength, mounting clearances, cable routing, speaker orientation and the intended listening position.
For the best results, professional system planning is recommended to ensure suitable amplifier matching, consistent placement and effective integration with the other channels in the home theatre.
Features
-
Three-way, four-driver passive on-wall loudspeaker.
-
Designed for Left, Centre, Rear and Surround channel applications.
-
25 mm (1-inch) TPTTD-I titanium dome tweeter.
-
TWG-I tweeter waveguide for controlled sound dispersion.
-
133 mm (5.25-inch) TPACD-II aluminium-cone midrange driver with TRCS.
-
Two 165 mm (6.5-inch) TPACD-II aluminium-cone bass drivers with TRCS.
-
TLIE-II rigid MDF enclosure.
-
Dual front bass-reflex ports with BOM design.
-
Ogrodnik crossover sections.
-
Multi-stranded oxygen-free copper internal wiring.
-
Gold-plated speaker terminals.
-
Magnetically mounted grille.
-
Wall-mounting options for horizontal or vertical orientation.
-
Available in high-gloss black and high-gloss white finishes, subject to availability.
Specifications
-
Brand: TAGA Harmony
-
Model: PLATINUM LCRS v.4
-
Series: Platinum v.4
-
Speaker Type: On-wall loudspeaker
-
Channel Applications: Left / Centre / Rear / Surround
-
Configuration: Three-way, four drivers
-
Enclosure: TLIE-II
-
Recommended Amplifier Power: 20–220 W
-
Power Handling: 150 W RMS
-
Frequency Response: 38 Hz–40 kHz
-
Nominal Impedance: 4 Ω
-
Sensitivity: 90 dB
-
Crossover Frequencies: 600 Hz and 3.5 kHz
-
Tweeter: 25 mm (1-inch) TPTTD-I titanium dome with TWG-I waveguide
-
Midrange Driver: 133 mm (5.25-inch) TPACD-II aluminium cone with TRCS
-
Bass Drivers: 2 × 165 mm (6.5-inch) TPACD-II aluminium cones with TRCS
-
Bass-Reflex Design: Dual front ports
-
Grille: Magnetically mounted
-
Mounting: Horizontal or vertical wall mounting
-
Dimensions with Grille (H × W × D): 70 × 30.5 × 15 cm, vertical orientation
-
Weight: Approximately 12 kg per speaker
-
Finish Options: High-gloss black / high-gloss white, subject to availability
In The Box
Please confirm the exact retail package contents with the distributor before publishing. The manufacturer lists a magnetically mounted grille and wall-mounting provisions. Confirm whether the supplied mounting hardware, speaker cables or other accessories are included in the specific retail package, and whether the listing is for one speaker or a pair.
