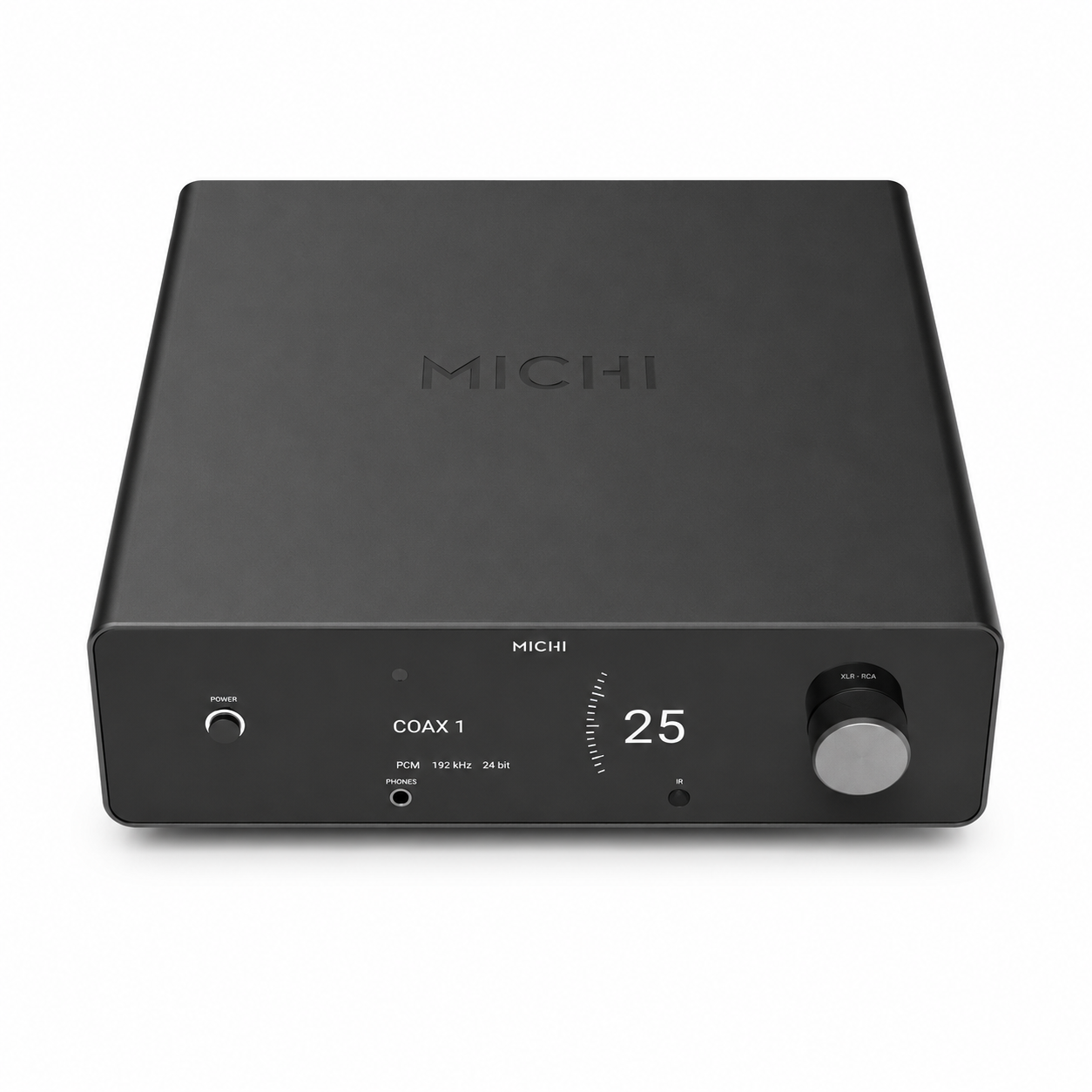

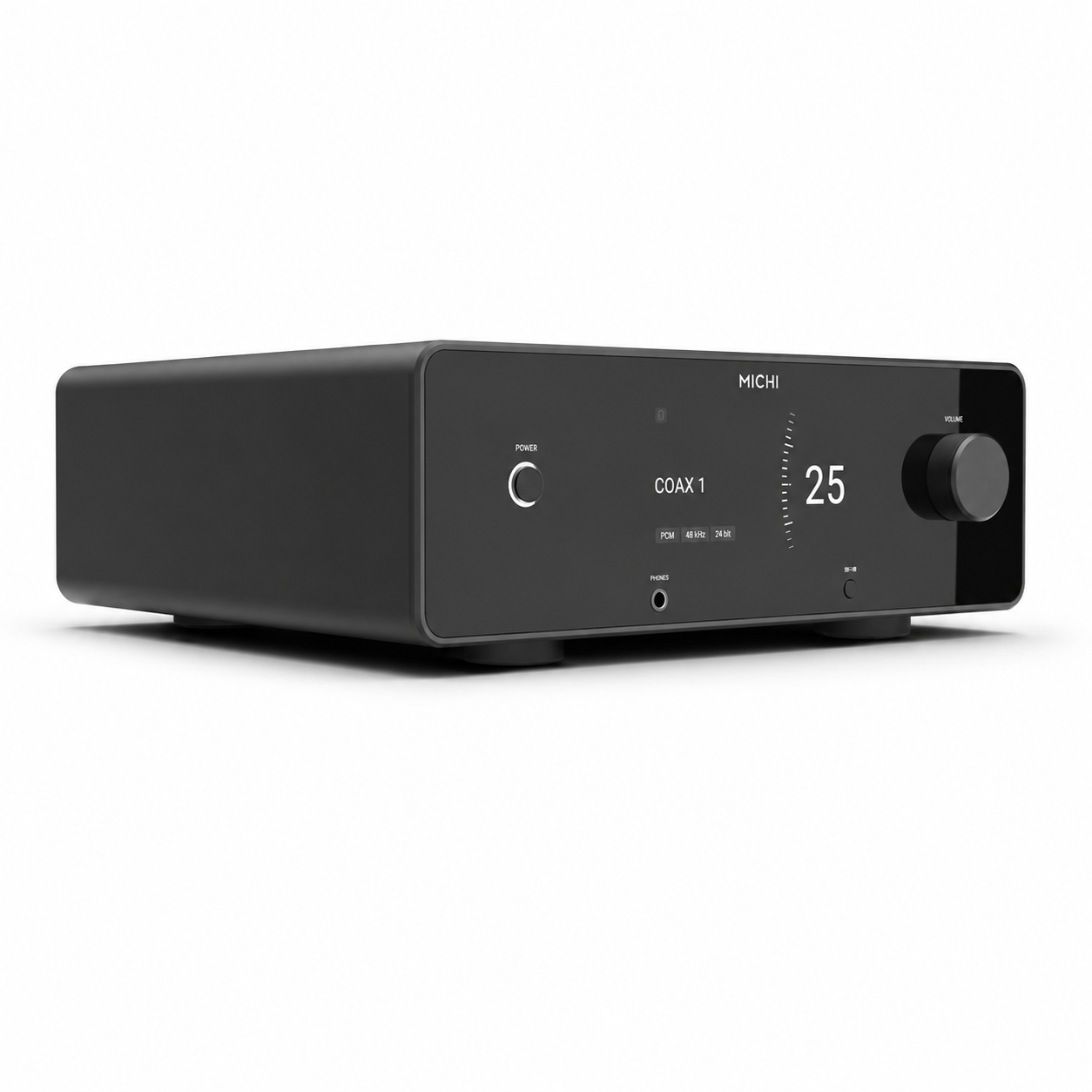

Rotel Michi P5 Stereo Preamplifier

Rotel Michi P5 Stereo Preamplifier

Flagship-Level Analog Control And Digital Precision For High-End Two-Channel Audio

The Rotel Michi P5 is a high-performance stereo preamplifier engineered for listeners who demand exceptional control, transparency and flexibility from the heart of a reference-quality audio system. Combining a Class A preamplifier circuit with premium digital conversion, balanced XLR connectivity and dedicated MM/MC phono inputs, the P5 is designed to serve as the central control hub for serious two-channel music systems.

Every aspect of the Michi P5 has been carefully developed to preserve signal integrity. Its sophisticated power supply architecture, dual AKM 32-bit DAC design and carefully selected analog circuitry work together to deliver a highly detailed, controlled and musical presentation across both analog and digital sources.

Key Features

• Class A Preamplifier Circuit – Designed for highly accurate signal handling and refined musical performance.

• Dual AKM 32-bit DAC Architecture – Provides high-resolution digital-to-analog conversion for detailed and precise playback.

• Balanced XLR Inputs and Outputs – Supports high-end system configurations with excellent noise rejection and signal integrity.

• MM and MC Phono Stage – Provides flexible support for both moving-magnet and moving-coil cartridges.

• MQA and High-Resolution Audio Support – Designed to handle advanced digital music formats and high-resolution playback.

• Bluetooth with aptX and AAC – Enables convenient wireless streaming from compatible devices.

• Roon Tested – Designed to integrate smoothly with Roon-based music systems.

• Advanced Power Supply Design – Dual custom toroidal transformers and 17 independent voltage regulators support stable and low-noise operation.

• RS232 and Ethernet Control – Provides integration support for sophisticated home automation and control systems.

Designed For The Heart Of A Reference Music System

The Michi P5 is designed to sit at the centre of a high-performance stereo system, bringing together turntables, digital sources, computers, network audio and wireless streaming in a single premium control platform.

Its extensive connectivity makes it suitable for systems built around dedicated power amplifiers such as the Michi S5, while its balanced and unbalanced outputs also provide flexibility for integration with a wide range of high-end amplification systems.

Class A Analog Performance

At the heart of the P5 is a carefully designed Class A preamplifier circuit engineered for accuracy, low distortion and musical refinement. The analog section is supported by a sophisticated power supply designed to deliver stable, clean current to critical audio circuits.

The result is a preamplifier designed to preserve the character of the original recording while delivering the control, resolution and transparency expected from a high-end reference component.

High-Resolution Digital Conversion

The Michi P5 incorporates dual AKM 32-bit digital-to-analog converters to provide high-resolution processing for digital music sources. It supports a broad range of digital inputs, including USB audio, optical and coaxial connections.

PC-USB supports high-resolution PCM audio up to 384kHz/32-bit, together with DSD and DoP playback. MQA support and Roon Tested certification further enhance its suitability for modern high-resolution music systems.

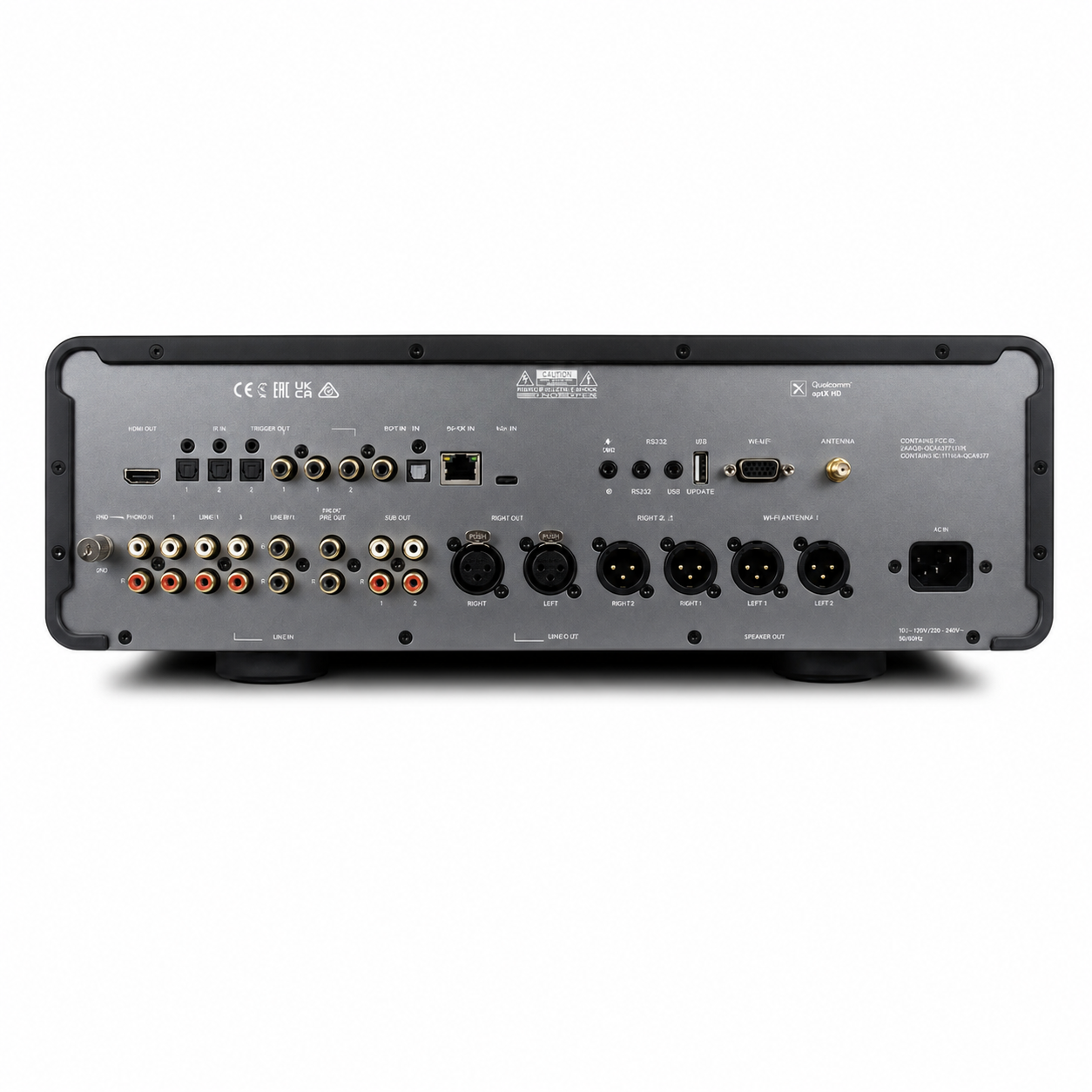

Complete Analog Connectivity

The P5 provides extensive analog connectivity for both traditional and modern source components. Dedicated MM and MC phono inputs allow vinyl enthusiasts to connect a wide range of cartridges, while balanced XLR and unbalanced RCA line inputs support a variety of premium source components.

With both XLR and RCA outputs, the P5 can be integrated into a wide range of high-performance stereo systems.

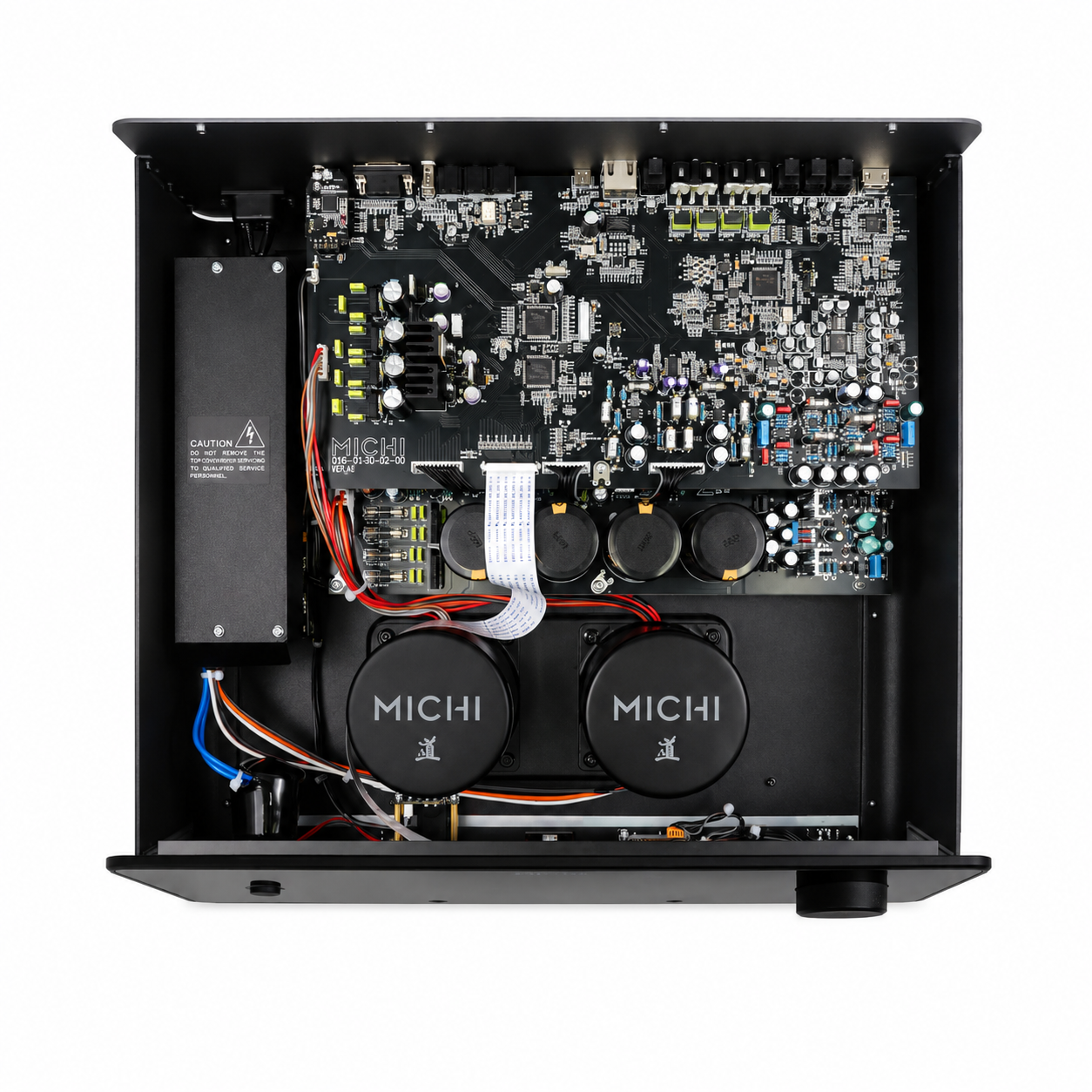

Precision Engineering And Power Supply Design

The Michi P5 is built around an advanced power supply architecture featuring two custom-designed toroidal transformers, low-ESR smoothing capacitors and 17 independent voltage regulators.

This carefully engineered power delivery system is designed to provide stable, low-noise power to the P5's critical audio circuits, helping maintain signal purity and consistent performance during demanding listening sessions.

Features

• High-performance stereo preamplifier.

• Class A preamplifier circuit.

• Dual AKM 32-bit DAC architecture.

• Balanced XLR and unbalanced RCA analog inputs and outputs.

• Moving Magnet and Moving Coil phono inputs.

• Bluetooth with aptX and AAC support.

• MQA and MQA Studio support.

• Roon Tested.

• PC-USB input supporting PCM up to 384kHz/32-bit.

• DSD and DoP support.

• Optical and coaxial digital inputs.

• RS232 and Ethernet connections for control and automation integration.

• Independent power regulation for critical audio circuits.

• Dual custom-designed toroidal transformers.

Specifications

• Product Type: Stereo Preamplifier

• Total Harmonic Distortion: < 0.002% (20Hz–20kHz)

• Intermodulation Distortion: < 0.002%

• Phono Frequency Response: 20Hz–20kHz (±0.3dB)

• Line-Level Frequency Response: 10Hz–100kHz (±0.3dB)

• Digital Frequency Response: 20Hz–20kHz (±0.3dB)

• Signal-to-Noise Ratio – Phono: 80dB

• Signal-to-Noise Ratio – Line Level: 116dB

• Channel Separation – Phono: >55dB

• Channel Separation – Line Level: >85dB

• Phono Input – MM: 2.5mV / 47kΩ

• Phono Input – MC: 250µV / 100Ω

• Line-Level Input – RCA: 160mV / 47kΩ

• Line-Level Input – XLR: 250mV / 100kΩ

• Output Level – RCA: 1V / 470Ω

• Output Level – XLR: 2V / 100Ω

• Digital Inputs: Optical and coaxial S/PDIF, PC-USB, Bluetooth

• USB Audio: Up to 384kHz/32-bit

• DSD / DoP: Supported

• MQA: Supported

• Tone Controls: Bass ±10dB at 100Hz; Treble ±10dB at 10kHz

• Power Consumption: 40W

• Standby Power Consumption: <0.5W

• Dimensions (W × H × D): 485 × 150 × 452mm

• Weight: 22.9kg

• Finish: Black

In The Box

• Rotel Michi P5 Stereo Preamplifier

• Remote Control

• Power Cable

• Batteries

• User Documentation
