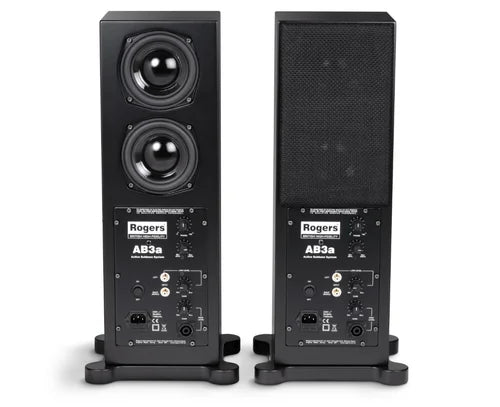

Rogers AB3A Active Subwoofer System
Purpose-Built Active Bass Extension For The Rogers Ls3/5a
The Rogers AB3a is an active stereo subwoofer system specifically designed to enhance the performance of Rogers LS3/5A loudspeakers. Developed as a dedicated low-frequency partner for the iconic compact monitor, the AB3a adds deeper, more authoritative bass while preserving the natural musical character and spatial precision of the LS3/5A.
Based on the configuration of the original Rogers AB1, each AB3a functions as both a dedicated subwoofer and a supporting platform for the partnering LS3/5A. The result is a carefully integrated two-channel system designed to deliver greater scale, bass definition and low-level spatial detail from the classic monitor design.
Key Features
-
Dedicated LS3/5A Active Subwoofer System – Designed specifically to enhance compatible Rogers LS3/5A loudspeakers.
-
Infinite-Baffle Design – Provides a dedicated low-frequency architecture for controlled bass reproduction.
-
Two Mass-Loaded LS3/5A Bass Units per AB3a – Uses specially treated Bextrene-cone bass drivers for improved low-frequency definition and bass attack.
-
50-Watt Class B Mono Amplifier – Each subwoofer incorporates its own dedicated amplifier.
-
Adjustable Gain, Frequency and Phase – Allows the system to be precisely matched to the room and partnering loudspeaker.
-
High-Level Speakon Connection – Designed for straightforward integration with the main power amplifier.
-
Designed as a Speaker Stand – Each AB3a supports the partnering LS3/5A loudspeaker.
-
Compatible with 11 Ohm and 15 Ohm LS3/5A Versions – Designed to work with all LS3/5A loudspeakers.
-
12mm Birch Plywood Cabinet – Uses the same cabinet material philosophy as the Rogers Classic LS3/5A.
-
Satin Black Finish with Matching Plinths – Creates a coordinated and elegant two-channel system.
The Ls3/5a Just Got A Serious Performance Upgrade
The LS3/5A is renowned for its natural midrange, exceptional vocal reproduction and precise stereo imaging. The AB3a is designed to complement these strengths by adding carefully controlled low-frequency extension without compromising the character of the original monitor.
Each AB3a incorporates two Rogers LS3/5A bass units. The drivers are mass-loaded with a specific resin designed to lower the resonant frequency and stiffen the Bextrene cone, helping improve bass definition and attack while contributing to greater low-level spatial detail.
Precision-Matched Bass Integration
The AB3a provides adjustable gain, frequency and phase controls, allowing the subwoofer system to be tailored to the listening room, speaker position and personal preference.
This flexibility is particularly valuable when integrating the AB3a with the LS3/5A, allowing the additional low-frequency energy to become a natural extension of the main speaker rather than an obvious separate source.
Dedicated Amplification For Each Subwoofer
Each AB3a includes a 50-watt Class B transistor amplifier dedicated to its bass section. This creates a true active stereo subwoofer system, with each side of the stereo pair independently powered.
The recommended high-level Speakon connection allows the AB3a to receive the signal directly from the main power amplifier's speaker terminals, making integration straightforward while maintaining a direct connection to the main stereo system.
Designed To Work As Part Of The Speaker System

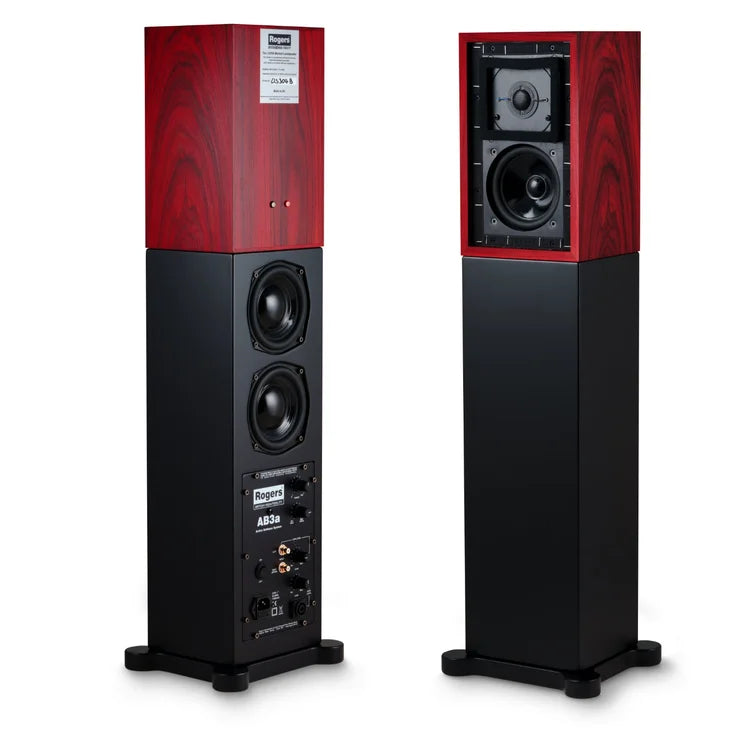

Unlike a conventional standalone subwoofer, the AB3a is designed to become part of the complete LS3/5A system. Each subwoofer acts as a dedicated support platform for the partnering loudspeaker, creating a visually coordinated and functionally integrated stereo system.
The AB3a is compatible with both 11 Ohm and 15 Ohm versions of the LS3/5A.
Features
-
Active stereo subwoofer system.
-
Specifically designed for Rogers LS3/5A loudspeakers.
-
Infinite-baffle design.
-
Two mass-loaded Rogers LS3/5A bass units per subwoofer.
-
50-watt Class B transistor amplifier in each AB3a.
-
Adjustable gain, frequency and phase controls.
-
Frequency cut range of 40Hz–220Hz.
-
0–180° phase control.
-
High-level Speakon input.
-
Speakon connection leads supplied.
-
12mm birch plywood cabinet construction.
-
Satin black finish with matching plinths.
-
Black Tygan rear grille.
-
Functions as a dedicated support platform for the LS3/5A.
Specifications
-
Product Type: Active Subwoofer System
-
Configuration: Stereo Pair
-
Design: Infinite Baffle
-
Woofers: 2 × Rogers mass-loaded LS3/5A woofers per AB3a
-
Amplifier: 50W Class B transistor amplifier per subwoofer
-
Frequency Cut Range: 40Hz–220Hz
-
High-Level Input: Speakon
-
Phase Control: 0–180°
-
Cabinet Construction: 12mm Birch Plywood
-
Finish: Satin Black
-
Rear Grille: Black Tygan
-
Dimensions (H × W × D): 600 × 190 × 165mm per AB3a
-
Weight: 11kg per AB3a
-
Compatibility: Rogers LS3/5A 11 Ohm and 15 Ohm versions
In The Box
-
Rogers AB3a Active Subwoofer System
-
Speakon Connection Leads
-
Matching Plinths
-
Manufacturer Documentation
-
Note: Rogers LS3/5A and LS3/5A SE loudspeakers are sold separately.
