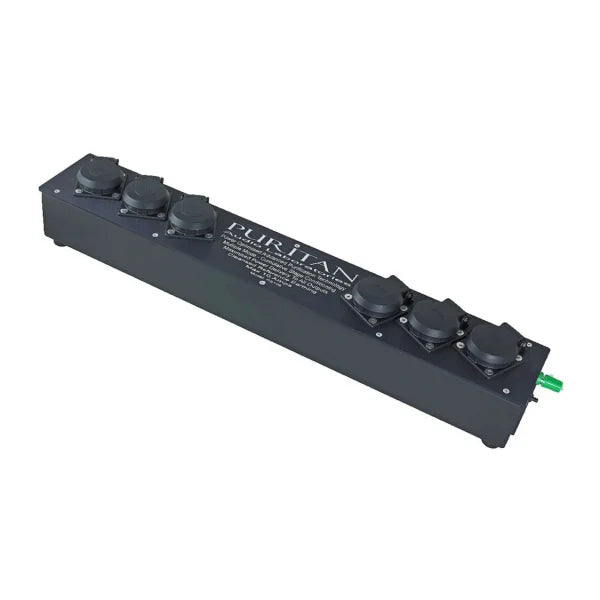

The Puritan Audio PS106 is a high-performance mains power purifier designed for demanding Hi-Fi and home-theatre systems. It combines multiple stages of mains purification with independently filtered outputs, star earthing, surge protection and a heavily shielded chassis to help reduce electrical interference reaching connected equipment.
The PS106 provides six independently filtered 15A outlets, with direct, equal-resistance power routing to the outputs. Its design also incorporates a cleansed earth and internal silver-plated OFC copper wiring with PTFE insulation.
Key Features
-
6 Independently Filtered Outlets – Helps minimise cross-contamination between connected components.
-
23 Discrete Filter Elements – Multiple cumulative purification stages address common- and differential-mode interference.
-
Star Earthing Architecture – Designed to reduce hum loops and lower the noise floor.
-
Cleansed Earth – Further reduces unwanted noise through the earth line.
-
9,000-Amp Surge Protection – Three-dimensional, non-sacrificial gas surge protection.
-
Direct Power Routing – Equal-resistance routing to all outputs for consistent power delivery.
-
Electrically & Magnetically Shielded Chassis – Heavy-duty construction helps contain and protect against electromagnetic interference.
-
Silver-Plated OFC Internal Wiring – Uses PTFE-insulated silver-plated oxygen-free copper conductors.
Designed for High-Performance Audio Systems
Power quality can influence the operating environment of sensitive audio and AV electronics. The PS106 is designed to address unwanted mains interference while maintaining direct power delivery to connected components.
Its independently filtered outputs are particularly suited to systems containing multiple components, where electrical noise generated by one connected device can potentially affect another.
Advanced Mains Purification
The PS106 uses multiple cumulative stages of purification rather than relying on a single filtering element. Puritan Audio Laboratories specifies 23 discrete filter elements together with enhanced differential-mode treatment.
The result is a purpose-built power-management solution for high-fidelity audio, home theatre and other demanding AV installations.
Star Earthing & Surge Protection
A star-earthing architecture is used throughout the PS106, with the earth arrangement designed to avoid hum loops and reduce unwanted electrical noise. The additional cleansed-earth approach further addresses noise on the earth line.
The unit also incorporates 9,000 amps of three-dimensional, non-sacrificial gas surge protection, providing an additional layer of protection for connected equipment.
Specifications
-
Model: PS106
-
Product Type: Mains Power Purifier / Power Conditioner
-
Outlets: 6 × independently filtered 15A outlets
-
Filter Elements: 23 discrete filter elements
-
Surge Protection: 9,000A three-dimensional non-sacrificial gas protection
-
Rated Voltage: 110–240V AC
-
Frequency: 50–60Hz
-
Input: IEC Type C20
-
Internal Wiring: Silver-plated OFC copper with PTFE insulation
-
Chassis: Electrically and magnetically shielded
-
Dimensions: 540 × 87 × 90 mm (W × D × H)
-
Weight: 4 kg
-
Manufacture: United Kingdom
-
Warranty: 3 years
-
PS106-DC Variant
In the Box
-
Puritan Audio PS106 Mains Power Purifier
-
Manufacturer documentation
-
Power connection/accessories according to the supplied configuration
