High-Performance Mains Distribution & Purification For Audio Systems
The Puritan Audio PB104 is a dedicated mains distribution and purification system designed to reduce electrical interference reaching connected audio equipment while providing a robust, mechanically and electrically controlled power-distribution platform.
The PB104 uses 20 independent purification elements arranged in multiple cumulative stages to address both common-mode and differential-mode interference. Four 15A outlets each incorporate their own re-filtering stage, helping reduce cross-contamination between connected components.
Its star-earthing architecture, cleansed earth path, magnetically shielded casing and substantial non-sacrificial surge protection make it a practical foundation for high-performance audio and home-theatre systems.
Key Features
-
20-Element Multi-Stage Purification – Multiple cumulative stages address common-mode and differential-mode electrical interference.
-
Four Independent 15A Outlets – Each outlet incorporates an independent re-filter stage to help minimise interference between connected equipment.
-
Star Earthing Architecture – The star-earth configuration is designed to avoid hum loops and reduce the system noise floor.
-
Cleansed Earth – The filtered earth arrangement is designed to reduce unwanted noise on the earth line.
-
9,000A Non-Sacrificial Surge Protection – Three-dimensional surge protection provides substantial protection against transient electrical events.
-

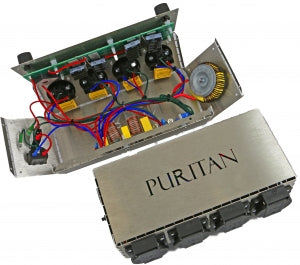

Magnetically Shielded Casing – The casing provides electrical and magnetic shielding around the internal wiring.
-
Silver-Plated OFC Internal Wiring – Internal wiring uses silver-plated oxygen-free copper conductors with PTFE insulation.
Multi-Stage Mains Purification
The PB104's purification system uses 20 independent elements arranged in multiple cumulative stages. Puritan specifies the design to address both common-mode and differential-mode interference rather than relying on a single filtering stage.
Each of the four 15A outputs has its own independent re-filter stage. This architecture is intended to minimise the transfer of electrical disturbances from one connected component to another.
Equal Power Routing
The PB104 uses a star-wired distribution architecture designed to provide equal resistance and power routing to each output. This gives connected components their own distribution path while reducing interaction between outlets.
This makes the PB104 suitable for systems where multiple components—such as source components, amplifiers, network equipment and display electronics—need to share a common mains distribution point.
Star Earthing & Cleansed Earth
Puritan's star-earthing arrangement provides a central filtered earth reference for the outlets. The additional earth connection on the side of the unit is directly connected to the filtered star-earth point and can also be used with compatible non-mains-connected accessories or a Puritan Ground Master.
Surge Protection
The PB104 incorporates a 9,000-amp repetitive-rated, three-dimensional non-sacrificial surge protection system. Unlike sacrificial surge components that require replacement after an event, the PB104 uses a resettable over-current protection arrangement at its mains input.
Features
-
20 independent purification elements.
-
Multi-stage common-mode and differential-mode filtering.
-
Four 15A outlets.
-
Independent re-filtering for each outlet.
-
Equal-resistance power routing.
-
Star-earthing configuration.
-
Cleansed earth.
-
9,000A repetitive-rated non-sacrificial surge protection.
-
Electrically and magnetically shielded casing.
-
Silver-plated OFC copper internal wiring.
-
PTFE insulation.
-
Resettable input over-current protection.
-
Designed for permanent operation.
-
IEC C14 mains input.
-
5-year guarantee.
Specifications
-
Model: PB104
-
Product Type: Mains distribution and purification system
-
Rated Voltage: 110–250V AC
-
Frequency: 50/60Hz
-
Outputs: 4 × 15A outlets
-
Input: IEC Type C14
-
Purification: 20 independent elements
-
Surge Protection: 9,000A repetitive rating
-
Internal Wiring: Silver-plated OFC copper
-
Insulation: PTFE
-
Dimensions: 250 × 130 × 90 mm (W × D × H)
-
Guarantee: 5 years
-
Design: Electrically and magnetically shielded casing
Installation & System Application
The PB104 can serve as a central mains distribution point for a high-performance stereo or home-theatre system. Its four independently filtered outputs allow multiple components to share the unit while the star-earth architecture is designed to reduce unwanted electrical interaction.
