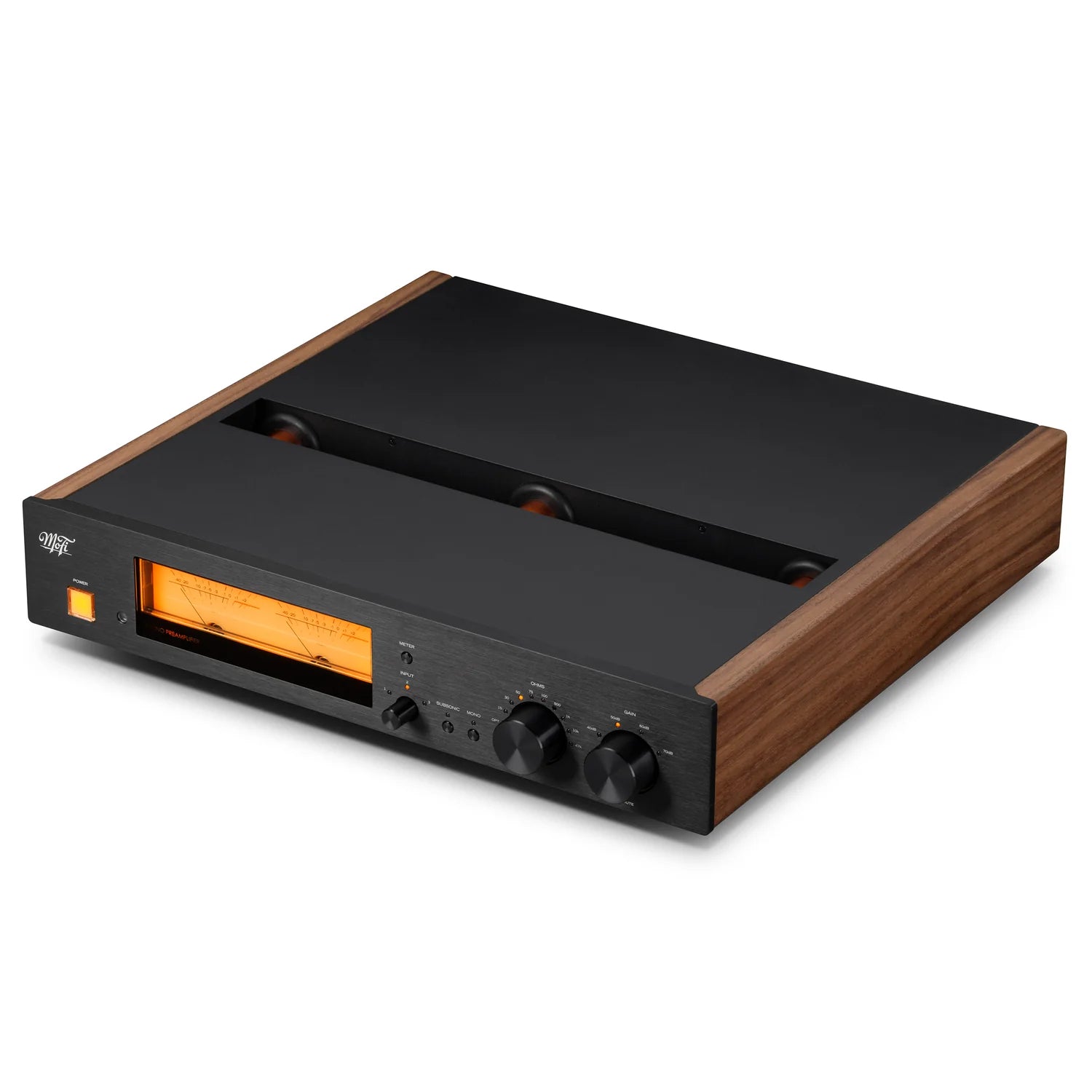

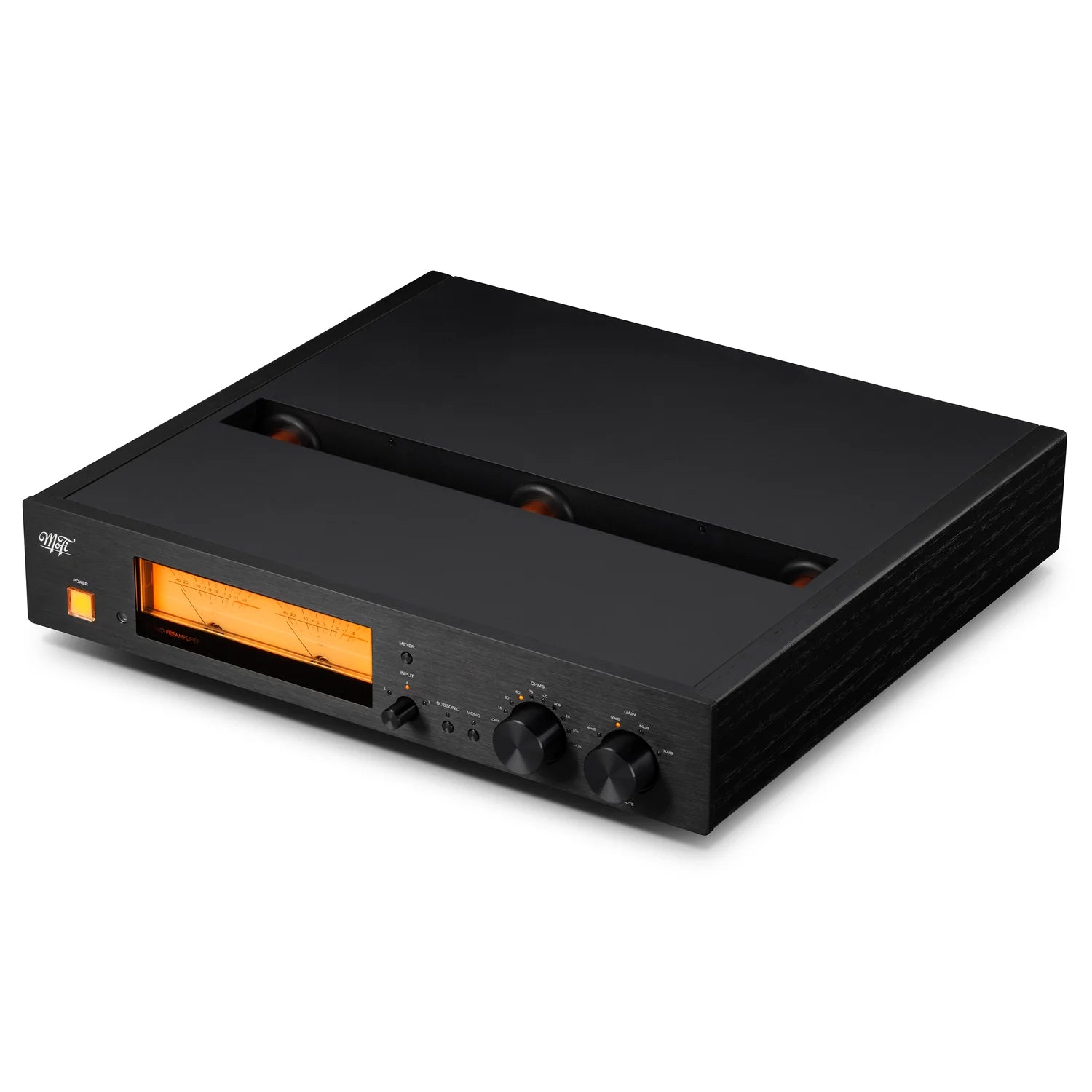

Masterphono
Created in collaboration with the revered audio engineer Peter Madnick, renowned for his exceptional contributions to the high-performance audio industry, the all-analog MasterPhono preamplifier is a testament to his expertise. The mission behind the MasterPhono was unequivocal: to replicate the sonic integrity that characterizes the renowned MFSL vinyl reissues. Over a year of meticulous research, development, and prototyping was invested to meet this lofty goal.
Elevating Vinyl Playback With Precision Engineering
Created in collaboration with the revered audio engineer Peter Madnick, renowned for his exceptional contributions to the high-performance audio industry, the all-analog MasterPhono preamplifier is a testament to his expertise. The mission behind the MasterPhono was unequivocal: to replicate the sonic integrity that characterizes the renowned MFSL vinyl reissues.
Versatile Inputs, Infinite Soundscapes
One of the most remarkable aspects of the MasterPhono is its versatility. With separate inputs and balanced as well as single-ended outputs, this preamplifier offers a multitude of user-configurable settings, all intuitively accessible via the front panel. The analog meters on the front panel embody the true essence of MasterPhono's analog heritage. Notably, a USB input opens doors to future features and software updates, ensuring a forward-looking experience.
Features
· RCA/XLR: Voltage & Current inputs, Trans-impedance dynamic loading
· Dual-chassis: Power/Signal isolation, low noise, separate grounding
· Gain settings: 40/50/60/70dB, Impedance: 10 settings + Custom
· Fully discrete balanced circuitry, servo-controlled, DC-coupled, high pass filter
· Passive RIAA: Precise parts, NOS capacitors, accurate resistors
· Cascaded voltage regulation, ultra-low noise
· Remote controlled: Input, gain, mute, mono, meter, subsonic filter
· Dual Function VU meters for monitoring or cartridge calibration
Specifications
· Gain: -Selectable gain for MM or MC 40db, 50db, 60db, 70db
· THD: -10mV@1KHZ MM low: 0.005% A-Weighted ,10mV@1KHZ MM high: 0.005% A-Weighted 1mV@1KHZ MC low: 0.010% A-Weighted ,1mV@1KHZ MC high: 0.013% A-Weighted
· Loading: -15 Ohms, 30 Ohms, 50 Ohms, 75 Ohms, 100 Ohms, 500 Ohms, 1K Ohms, 10K Ohms, 47K Ohms+150pF, & “Custom”
· Max Output: -@1% THD, 10 Volts RMS
· RIAA Accuracy: --+/- 0.05db
· Frequency Response: -10Hz–50KHz ±0.20dB
· Signal To Noise Ratio: - 93dB (MM), 85dB (MC)
· Dimensions (WxHxD): -17” x 3.5” x 15.75” ,(43.2 x 8.9 x 40 cm)
· Weight: -15 lb / 6.8 kg
· Warranty: -One years parts
