The key features
· Sky Blue series
· OFC copper with purity of 99.99% (4N)
· construction - 2 conductors in a double shield with 99% density
· insulation made of PE and PVC
· Neutrik XLR plugs
· XLR plugs soldered with tin enriched with silver
· 5-year warranty
Melodika SB2X05

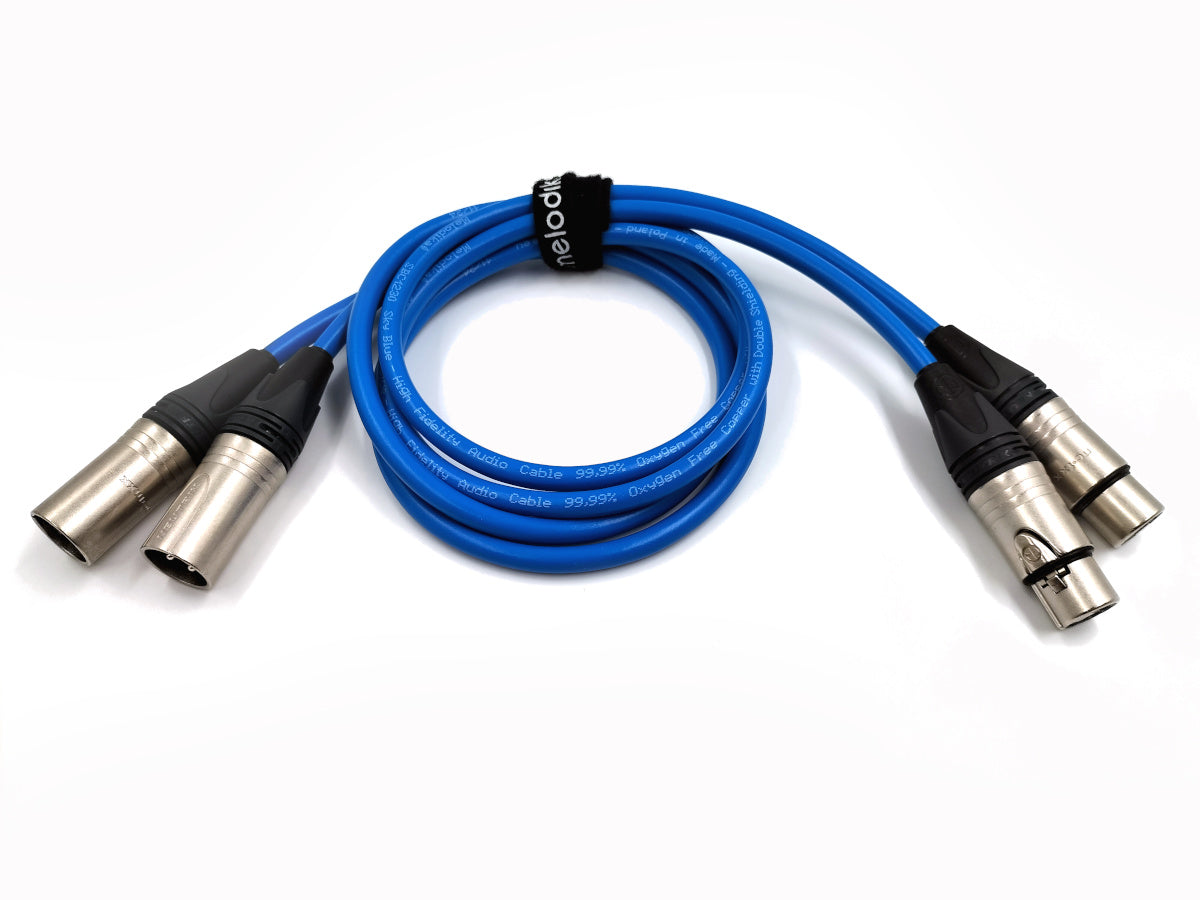

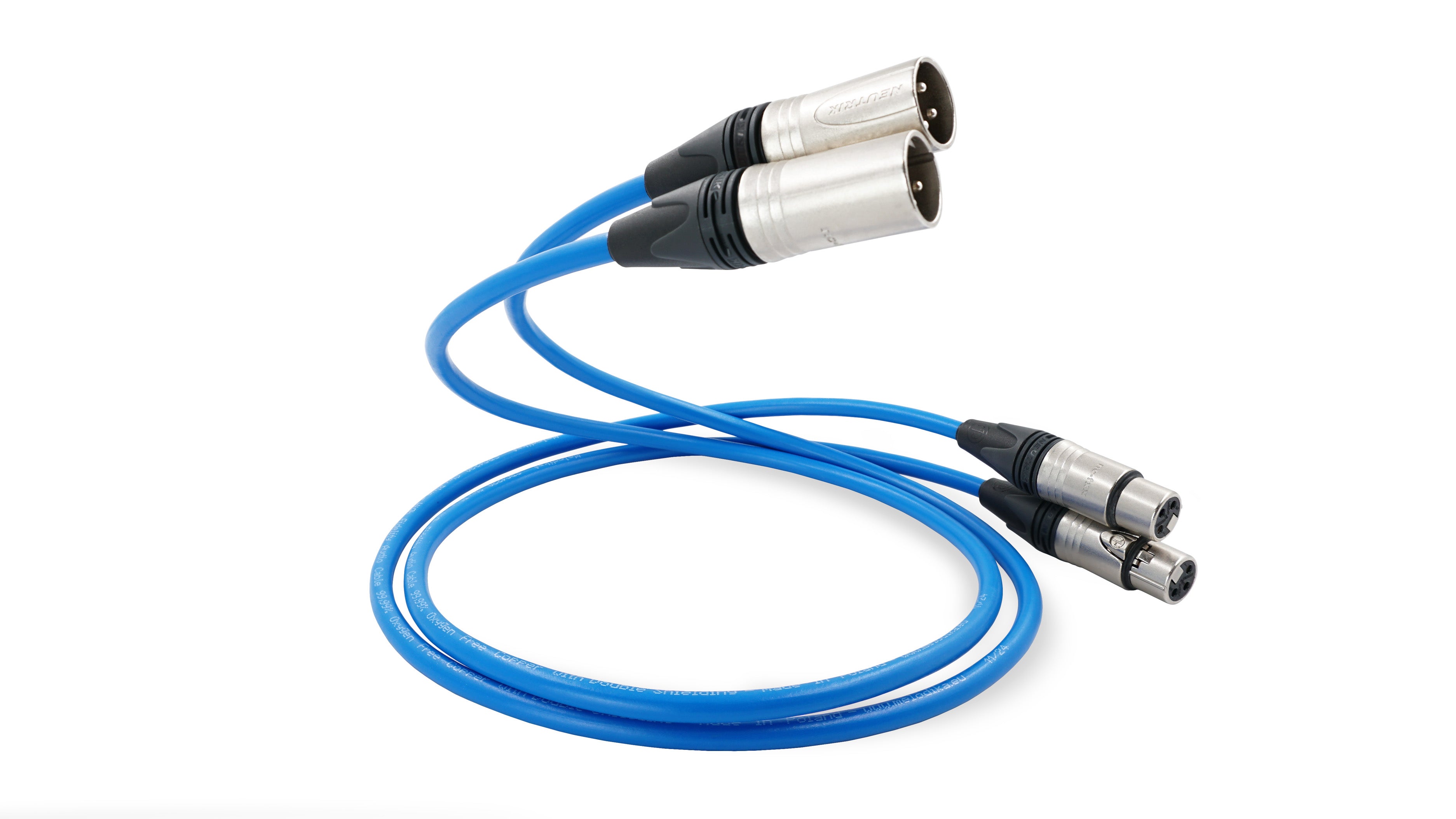

Melodika SB2Xxx "Sky Blue" is a high quality 2x XLR - 2x XLR audio interconnect, designed to transmit analog stereo signal in balanced outputs of devices such as amplifiers or CD players. The cable's symmetrical design is based on proven Twisted Cores technology, consisting of two conductors twisted together, each 0.35 mm² thick and additionally insulated with cotton dielectric. The conductors are protected from electromagnetic interference by high-quality double shielding, with a minimum coverage density of 99%.
The cable is terminated with robust and durable XLR plugs from Neutrik - male on one side and female on the other. These plugs are equipped with an additional ground contact for optimal connection to the connector housing. The cable is soldered to the connectors using high-quality tin with silver, which guarantees the durability and reliability of the connection.
The use of a balanced 2x XLR audio cable brings many benefits in both home and studio environments. First of all, it provides much lower signal loss and less interference, as well as greater resistance to external conditions and mechanical damage.
Construction Description
· OFC oxygen-free copper: 99.99%
· Robust and durable XLR plugs made by Neutrik
· High-quality double shielding consisting of mylar foil and dense braid with more than 99% coverage guarantees excellent protection against RFI and EMI electromagnetic interference
· The cable is connected to the plug by soldering with high-quality silver tin
· Through proper assembly of the plugs, the directionality of the cable was achieved
· Additional cotton dielectric to reduce the electrical permeability and capacitance of the cable
· Balanced construction of two conductors with a thickness of 0.35mm2
· PE insulation
· PVC outer sheath
Cable resistant to: UV rays, seawater, ozone, alcohol, excellent impact strength at both room and low temperature, high mechanical energy absorption, good abrasion resistance.
Electrical parameters
· Working conductor resistance : 48 Ohm/km
· Screen resistance: 13.3 Ohm/km
