Melodika Purple

The Purple series is a line that has firmly established itself as a benchmark for reasonably priced yet well-designed cables. It features 4N (99.99%) oxygen-free copper conductors, carefully engineered electrical characteristics, and durable, precisely fitted connectors. The construction offers resistance to mechanical damage and is safe for use in in-wall installations. It’s an ideal choice for those who seek quality and reliability without exceeding a sensible budget.

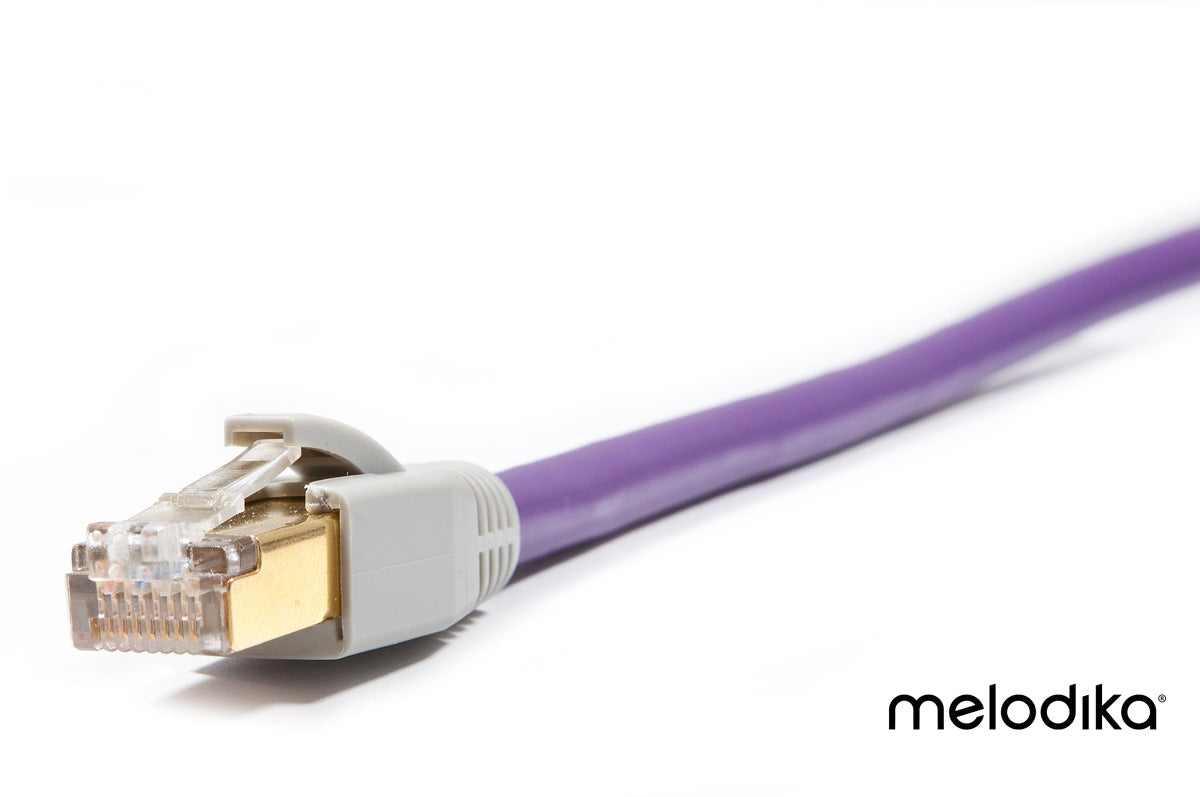

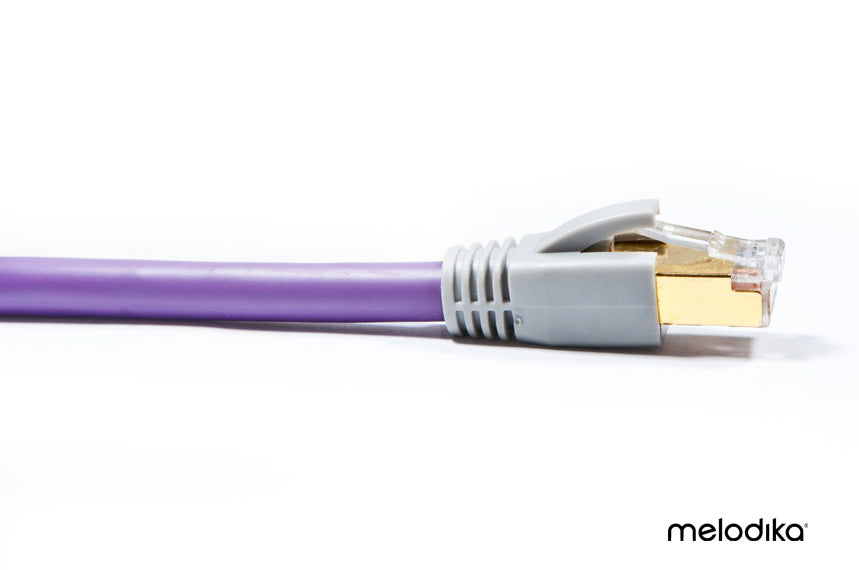

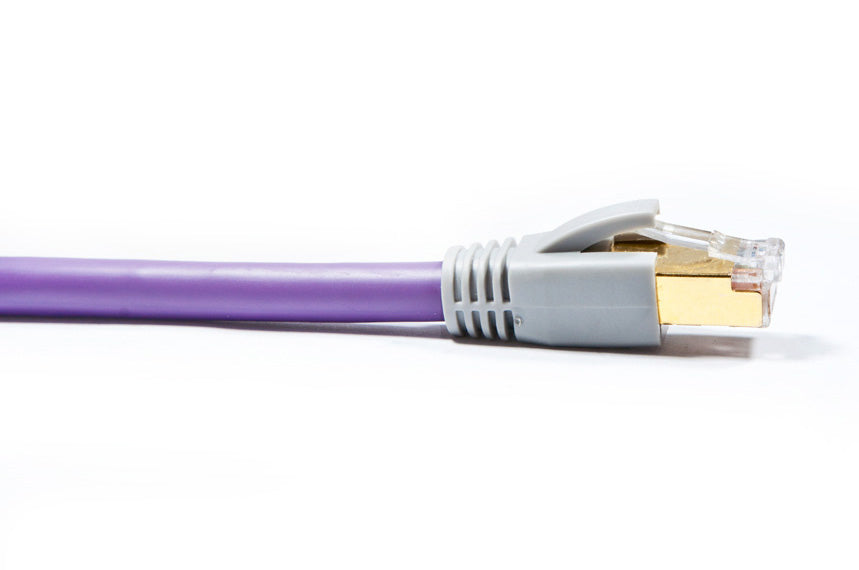

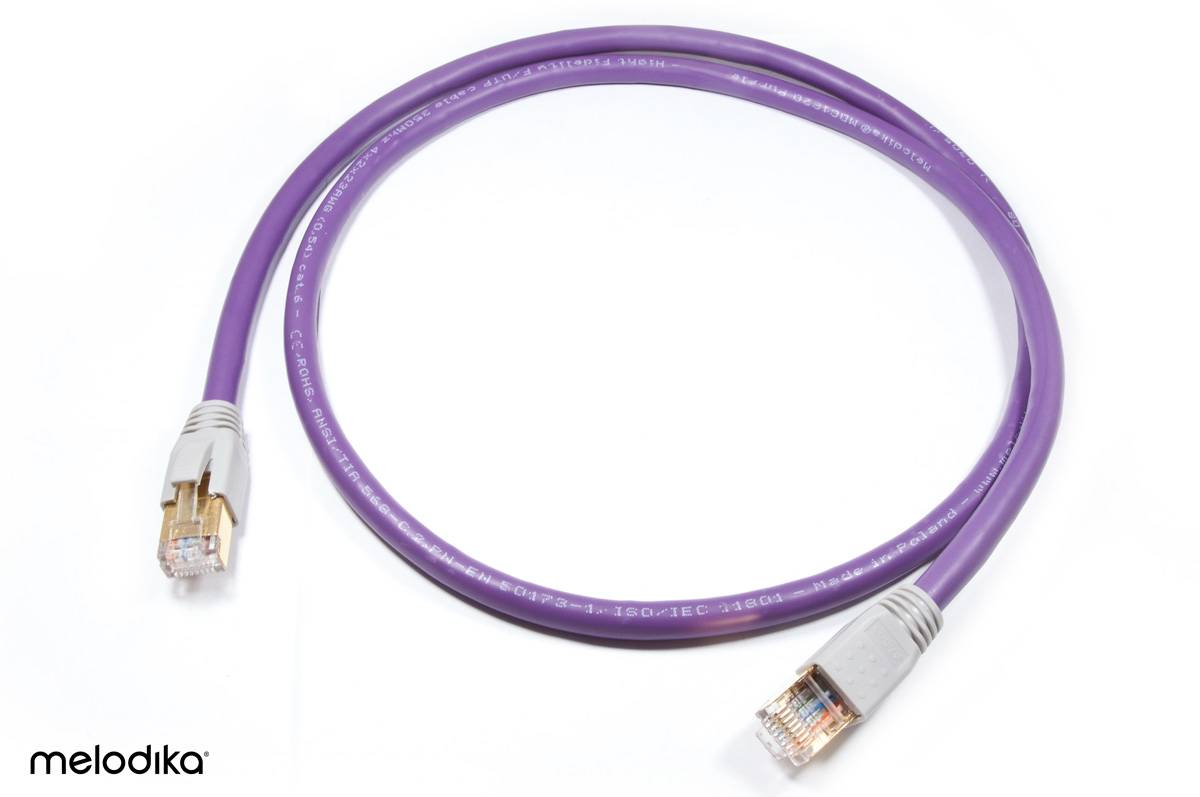

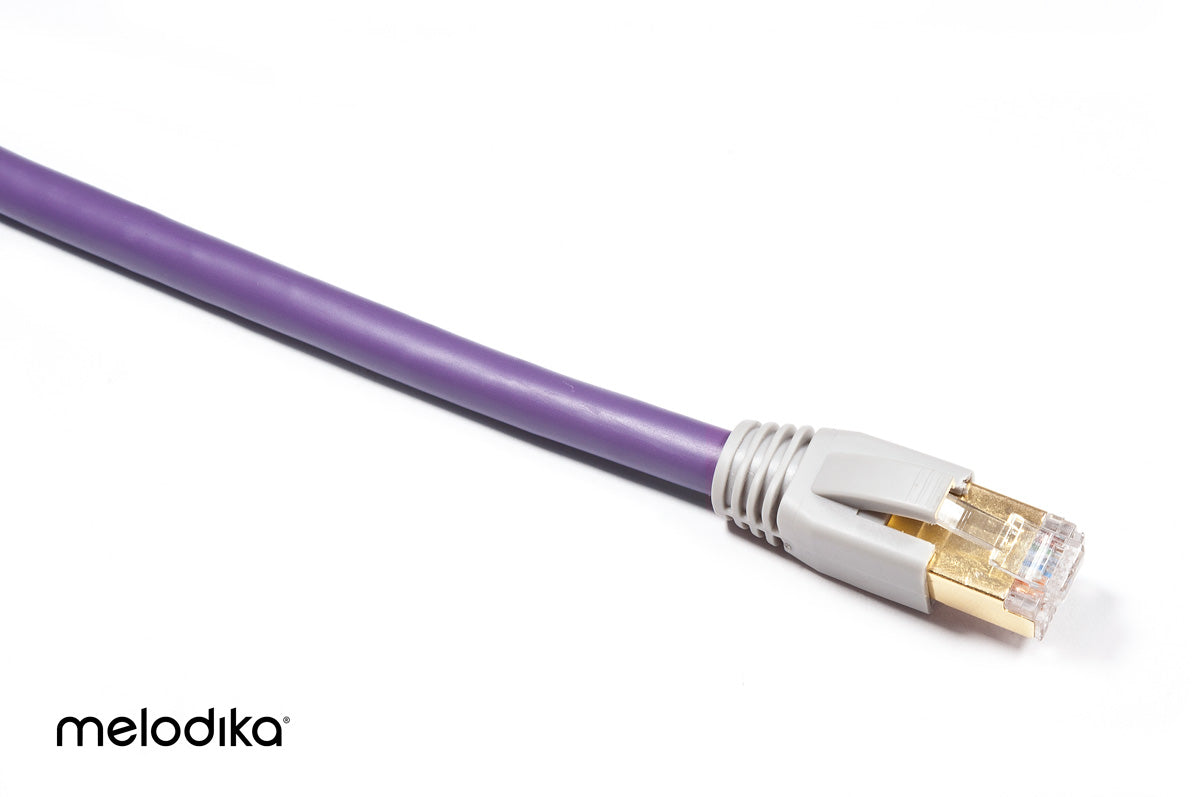

Melodika MDLAN is a network cable designed for stable data transmission in home and audio-video systems, where high-quality content streaming is becoming standard. It performs well for everyday internet use as well as for transferring more demanding data, such as high-resolution media or large files.

The F/UTP construction is based on four twisted pairs of OFC 4N copper (99.99% purity). An additional shared shield and grounding wire help reduce the impact of electromagnetic interference, ensuring stable connections and consistent signal transmission. The cable supports frequencies up to 350 MHz and data rates above 1 Gb/s, making it suitable for standard networking applications.

Durable construction also includes gold-plated RJ45 connectors for reliable contact, and a relatively thick outer jacket (7.5 mm) for enhanced mechanical resistance. The wide operating temperature range allows the cable to be used both at home and in installations requiring greater durability.

Key features

• Type: LAN cable (twisted pair) F/UTP

• Conductor: OFC 4N copper (99.99% purity)

• Construction: 4 twisted pairs (4x2x0.57 mm)

• Frequency range: up to 350 MHz

• Bandwidth: above 1 Gb/s

• Impedance: 100 Ω

• Additional shared shield + grounding wire

• Connectors: gold-plated RJ45

• Cable diameter: 7.5 mm

• Operating temperature: -30 to +70°C

• Intended use: data, audio, and video transmission

• Warranty: 24 months
