Key features
· Brown Sugar series
· dedicated to bi-wiring
· OFC copper with 99.9999% purity (6N)
· 4 conductors twisted together to eliminate their own interference
· Spiral Litz technology (each conductor separately insulated and twisted)
· triple low capacitance LDPE dielectric insulation
· 10-year warranty

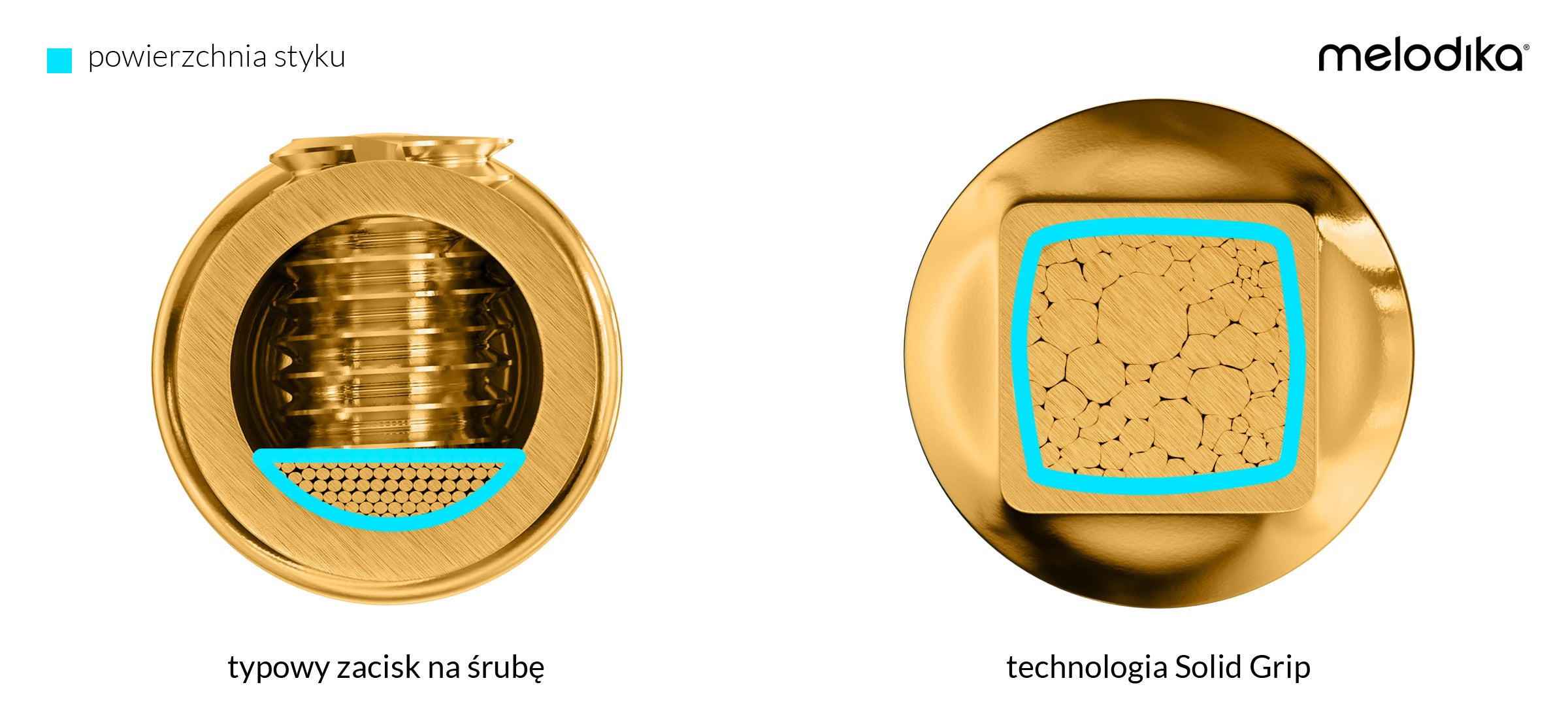

Brown Sugar enhances any sound system, regardless of where it is used. This high-tech speaker cable consists of three bundles of different thicknesses, one of which contains a 0.85mm² BassCore conductor. This reduced the undesirable skin effect in the conductors. In addition, all conductors in it are separately insulated, and the cable is terminated with Solid Grip banana plugs, which are tightly compressed with the conductors, eliminating empty spaces between them.
Melodika BSBW22515 Brown Sugar with Solid Grip Speaker Cable for Bi-Wiring

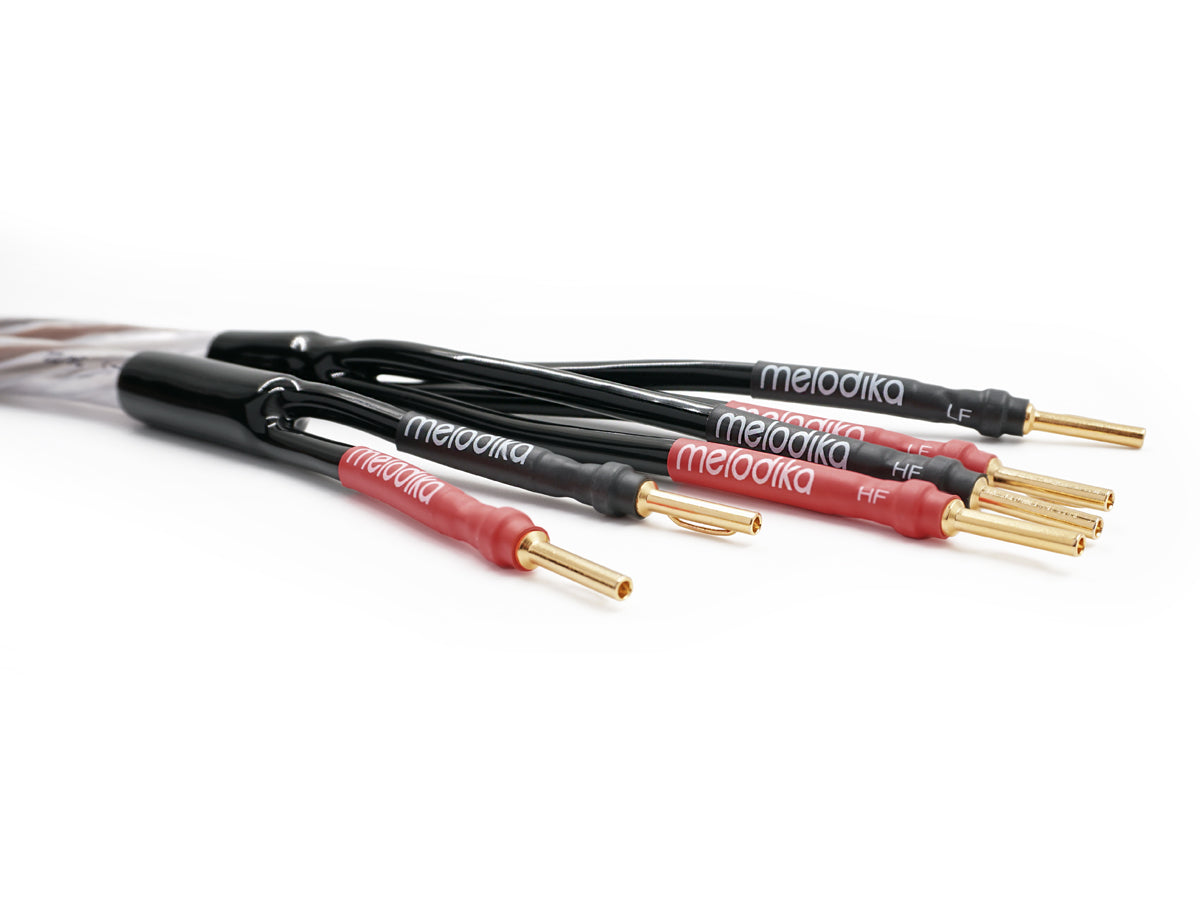

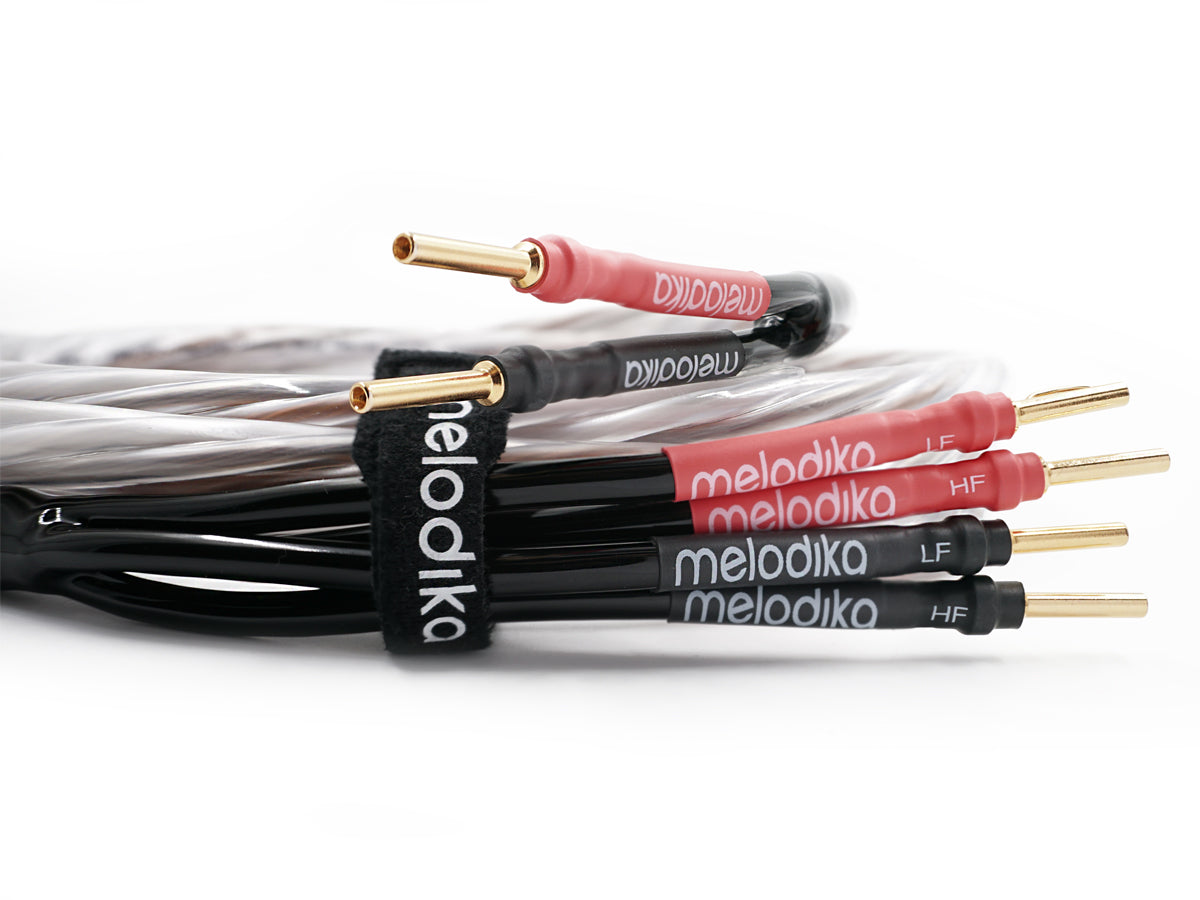

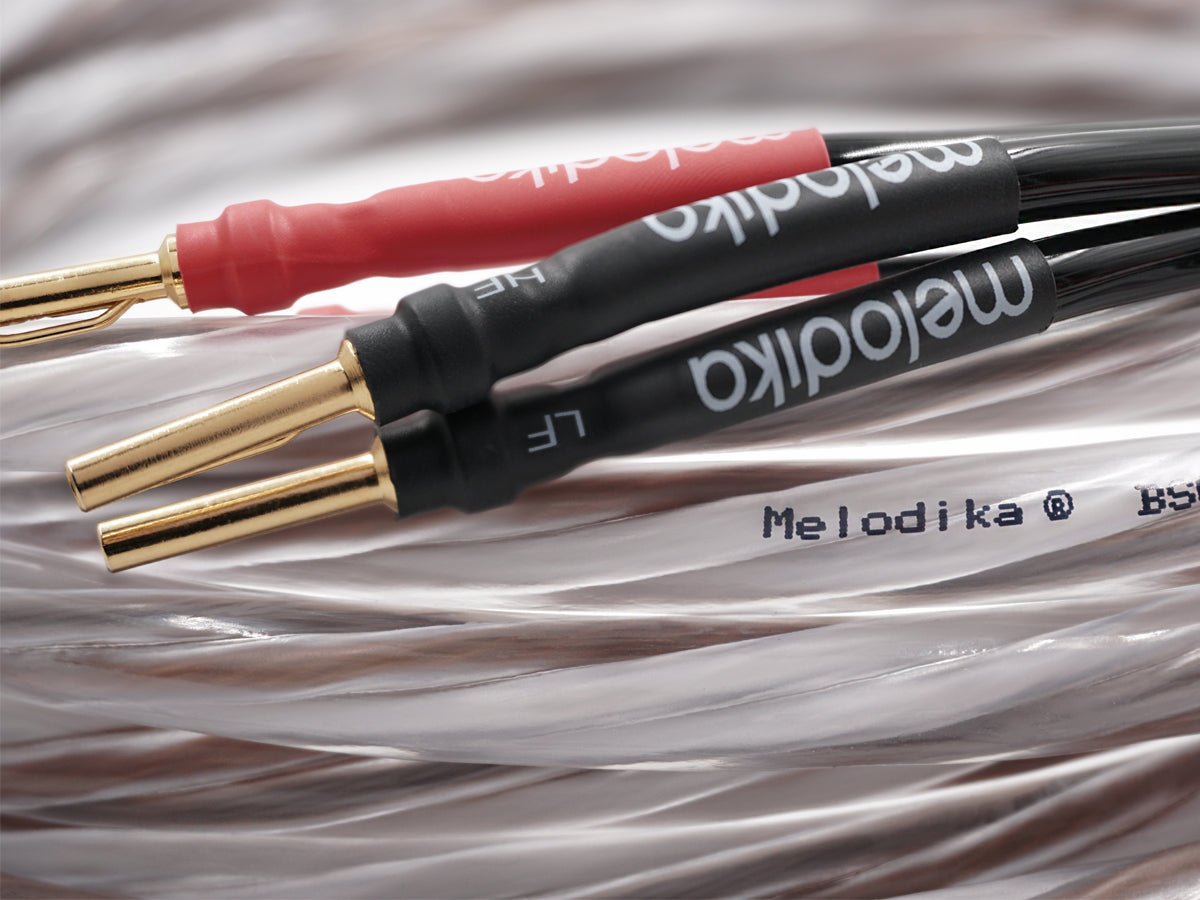

Melodika Brown Sugar series cable with advanced construction: 2x2mm2 + 2x2.5mm2, dedicated for Bi-Wiring. Polish-made cable of advanced construction with earned, high-quality gold-plated banana plugs with Solid Grip technology. Brown Sugar's technologically advanced cable design combines time-tested concepts such as Multi-Gauge Core and Spiral Litz, encased in triple low capacitance LDPE dielectric insulation. In the Brown Sugar series, Melodika reaches for high-quality Polish OFC grade 6N copper with 99.9999% purity, which is used in the most advanced audio cables, as it is guaranteed to last and maintain the highest quality electrical performance.
Main features
· Triple low capacitance, dielectric isolation made of LDPE (foamed low density polyethylene) providing the lossless signal transmission
· Spiral Litz Technology: every guide separately insulated and twisted
· Multi-Gauge Core Technology: A special cable construction, distinguishing several thickness of cores for low, medium and high frequencies

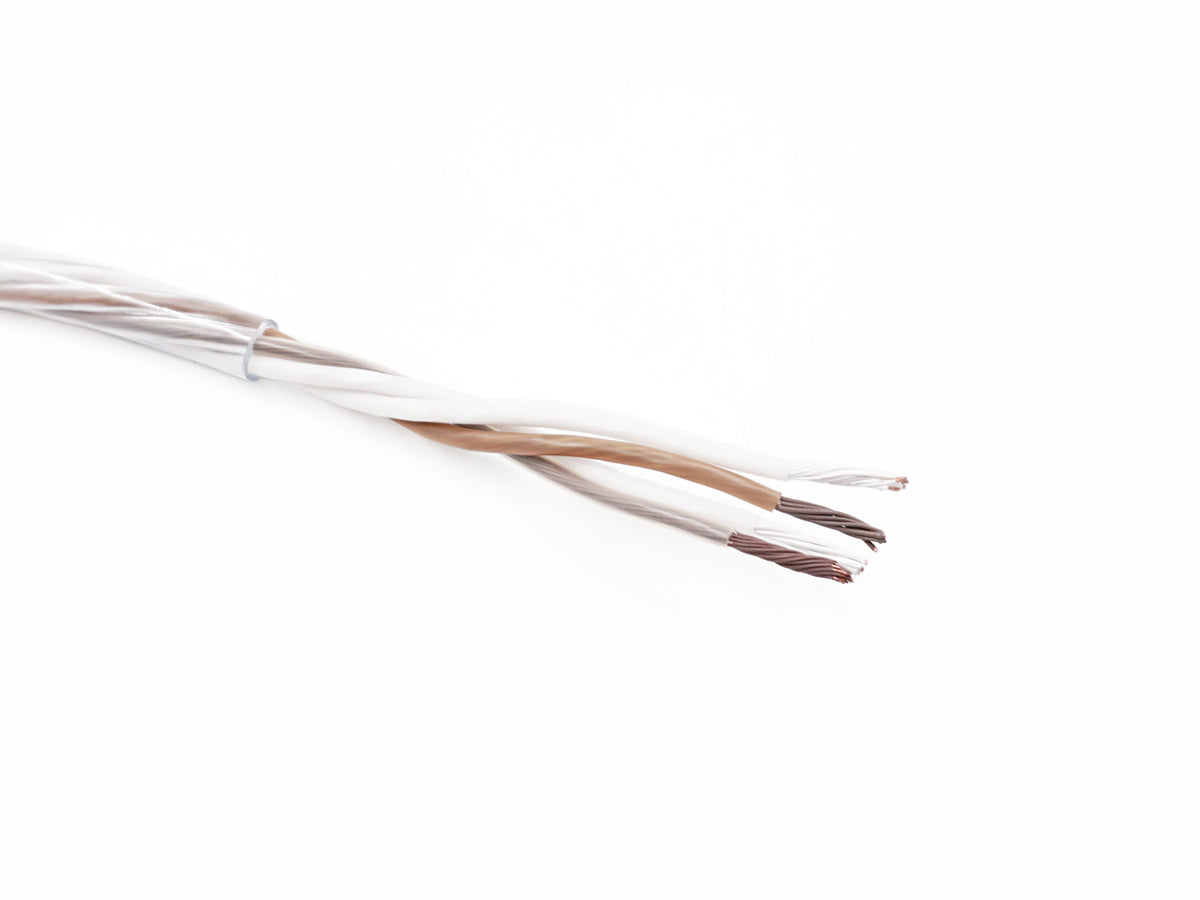

· Geometry: two braids of guides twisted with each other to reduce their interference

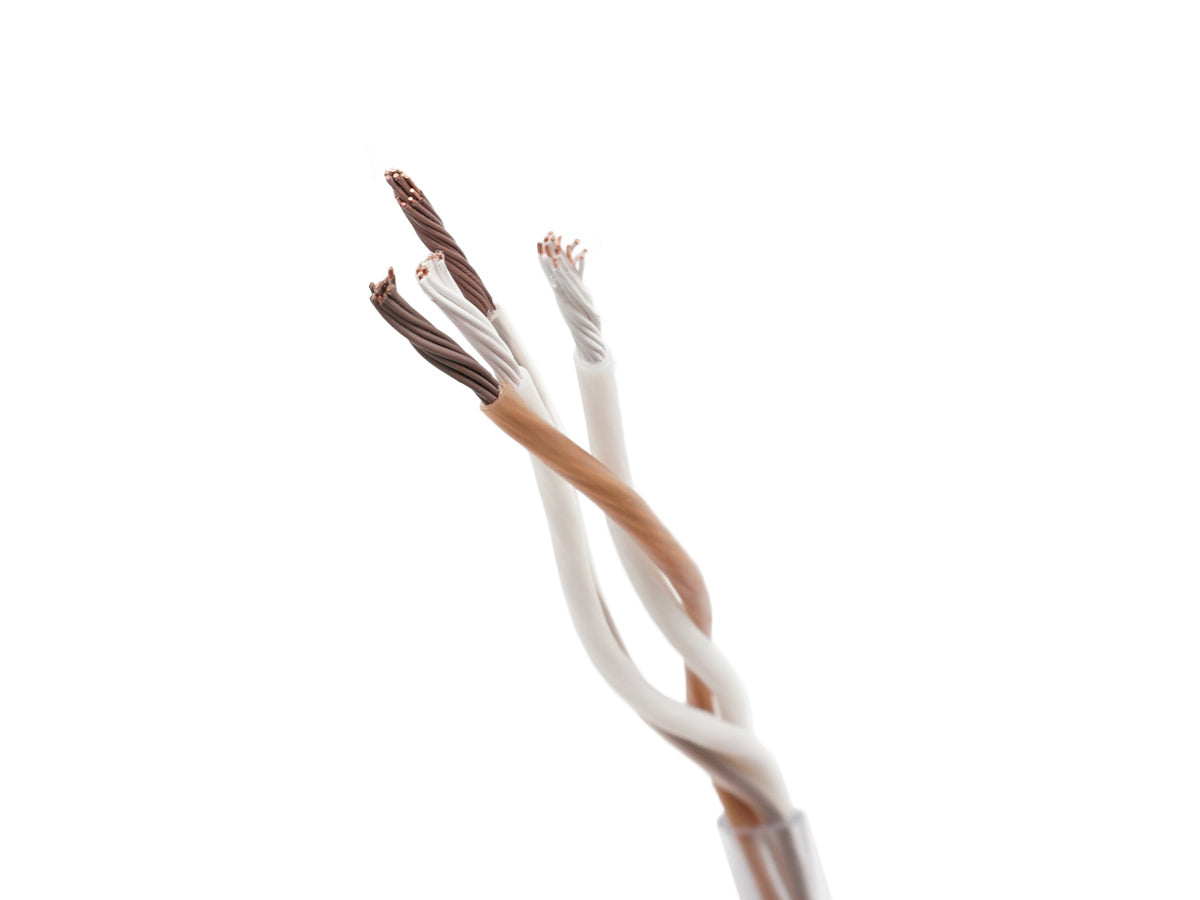

· Advanced construction (cable consists of three different thickness of wires)
· 2x (8x 0,21mm2 + 4x0,33mm2 wire 0,21mm2 + 12x0,13mm2)
· The transparent outer insulation
· The cable is directional
· Cable has ROHS 2 certification
· High-quality Polish OFC copper with a purity of 99.9999%
· High insulation resistance, cable can be laid under plaster or concrete without damaging the cable.
- Litz construction - Spiral Litz Technology - (each guide separately insulated and twisted)
Many single cores are placed in separate isolation. In each core flows total current located on the power amplifier output. This solution is much better than standard cables like "strand, " type because electrons do not jump from strand to strand, flowing his own path without interruption. Moving of electrons from strand to strand is undesirable effect that causes the loss of the so-called subtle information. The most important benefit of this technology is the equal current distribution throughout the cross-section of the cable, thereby increasing the efficiency of power transmission. Skin-effect is virtually eliminated. Coated guides also prevent oxidation of copper.
Multi-Gauge Core Technology: A special cable contruction, distinguishing several thickness of cores for low, medium and high frequencies
No skin effect
The higher the frequency transmitted by the line, the more current tends to flow on the surface of the guide. It happens because of variable magnetic interactions of the current with itself. And so, the higher the frequency, the closer to the surface of the conductor current is flowing. It is not a good effect, because with the increasing of the frequency, used guide surface is decreasing, which results in an increase of the cable impedance for high frequencies. The signal begins to flow unequally (also because of phase shifts) and there is a loss of very quiet components, which in the listetning sensations is called the lack of air or subtle information. therefore Melodika Brown Sugar BSC2450 has three different thickness of guides.
Twisted cores - the use of the braid spirally twisted causes that the sensitivity to wire interference is small, because the induced current in one guide has an opposite direction than in the neighboring - by which interferences cancel each other out.
