McIntosh CR106 (NEW) 2-Channel 6-Zone Preamplifier / Audio Matrix

McIntosh CR106 (NEW) 2-Channel 6-Zone Preamplifier / Audio Matrix

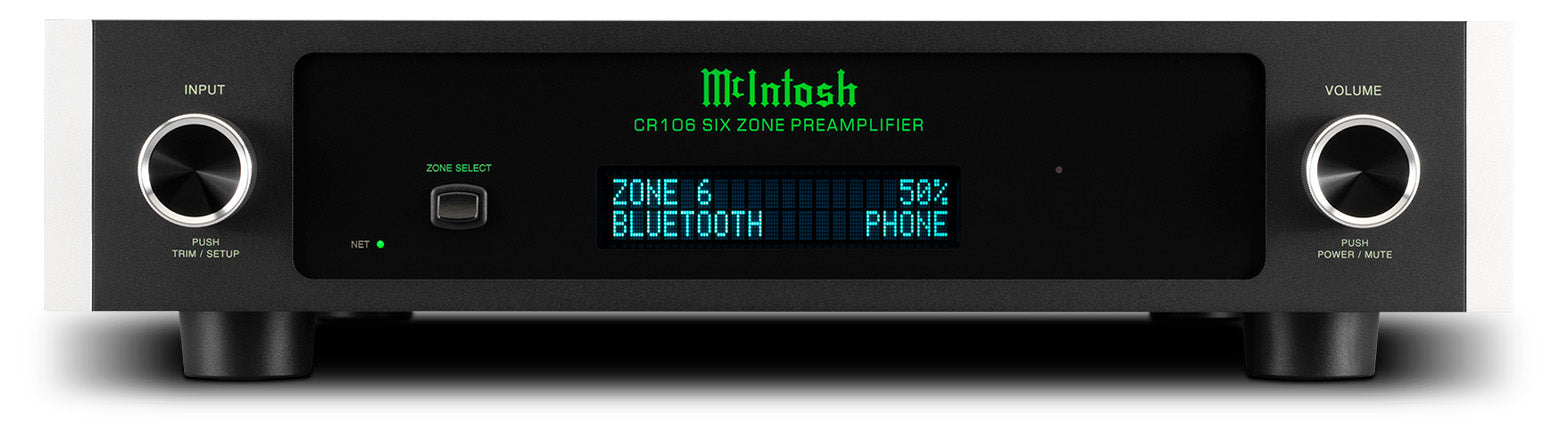

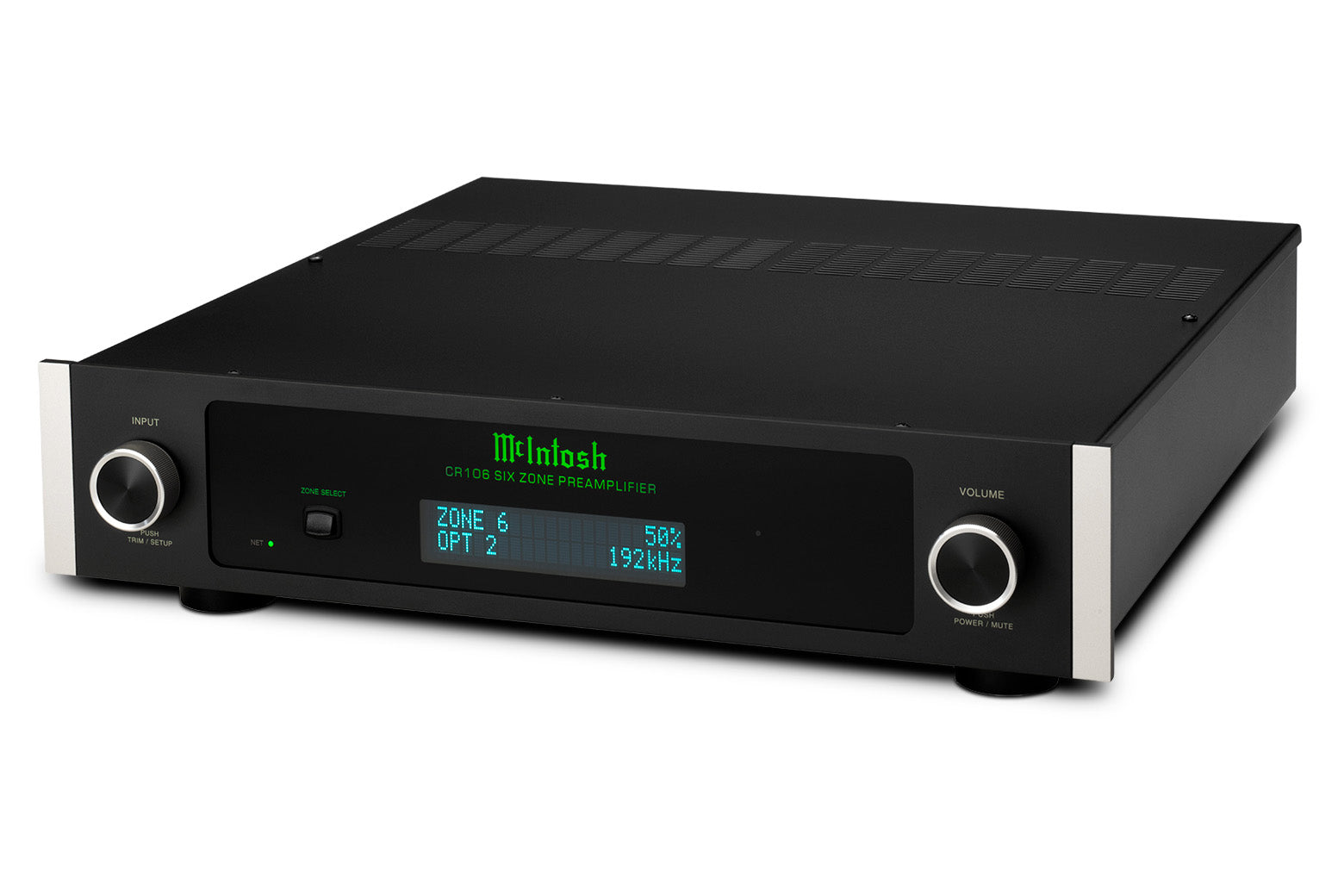

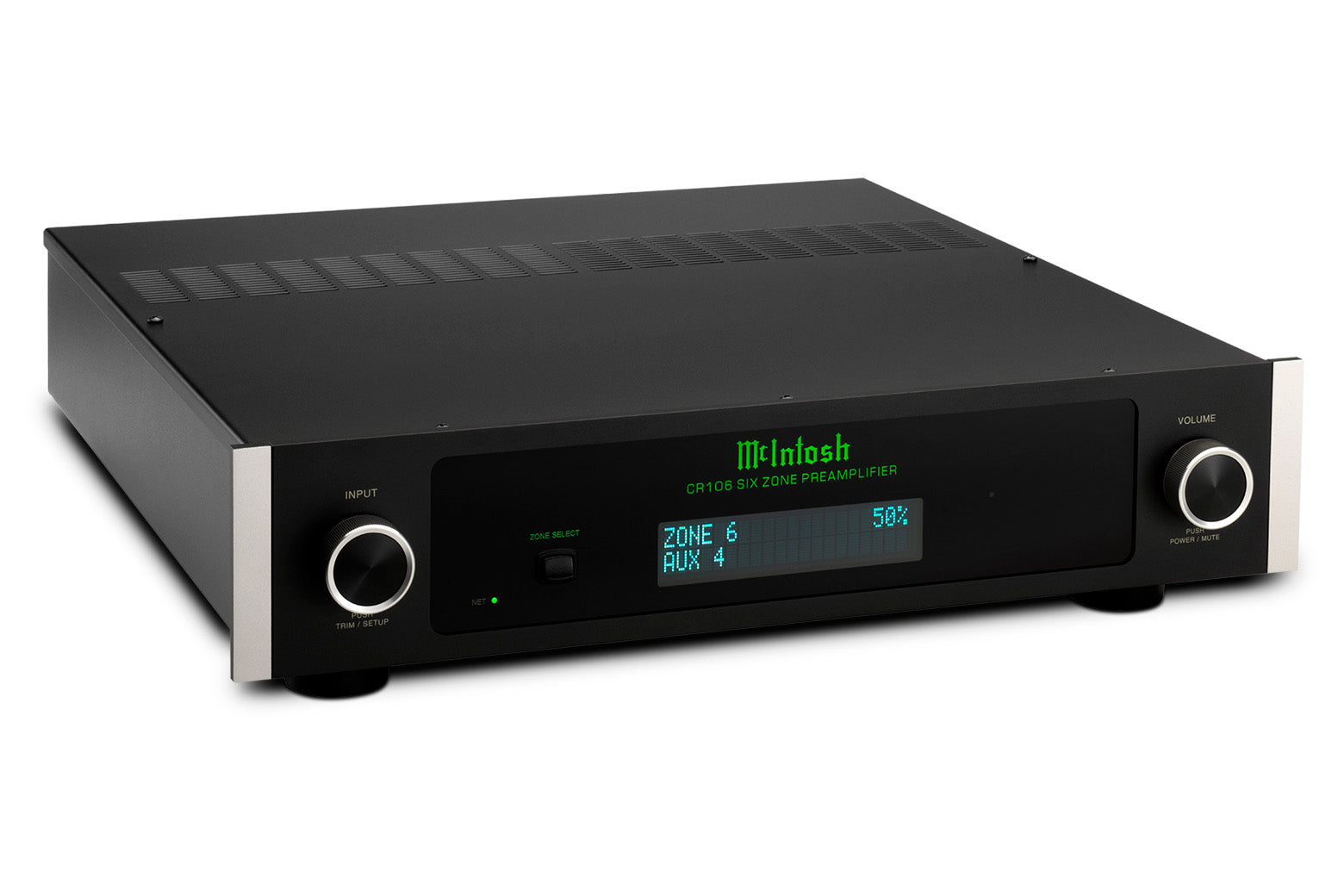

The McIntosh CR106 is a premium digital 2-channel, 6-zone preamplifier and audio matrix designed for high-performance distributed home audio and custom installation systems. It combines source management, zone control and audio distribution in a compact 2U rack-mountable chassis, making it ideal for multi-room residential and professional AV installations.

The CR106 can independently control up to six stereo audio zones, while up to five CR106 units can be connected through Dante® networking to create systems with up to 30 audio zones.

Key Features

• 2-Channel Digital Preamplifier / Audio Matrix

• 6 independent stereo audio zones

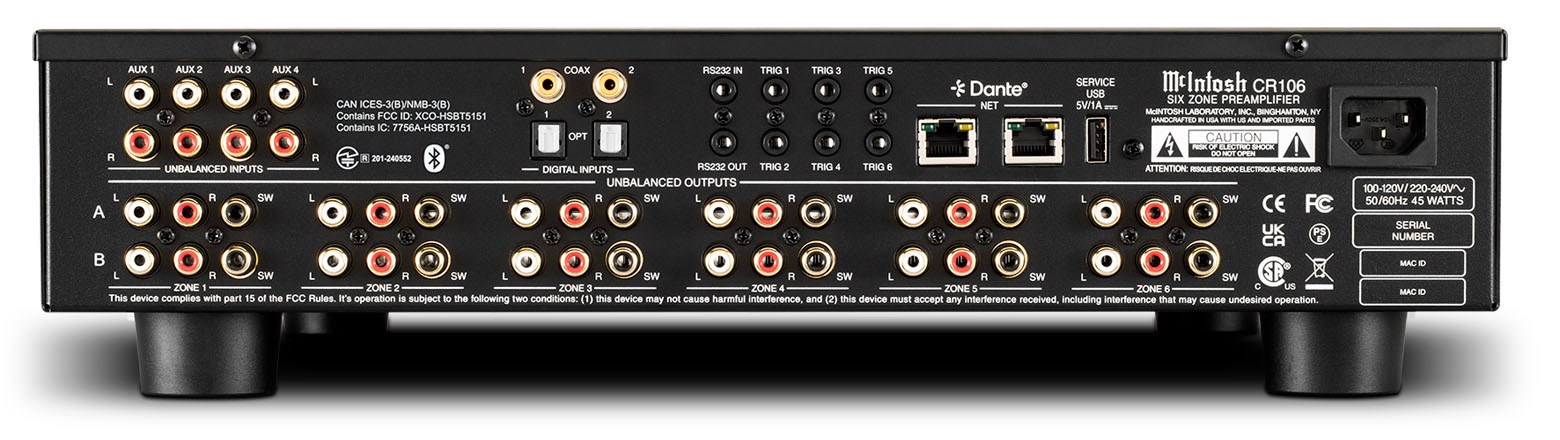

• 8 analog & digital inputs plus Bluetooth connectivity

• 4 × Unbalanced Analog Inputs

• 2 × Coaxial Digital Inputs

• 2 × Optical Digital Inputs

• Bluetooth with AAC, Qualcomm aptX HD and aptX Adaptive

• 2 sets of stereo outputs per zone

• Dedicated subwoofer outputs for every zone

• Up to 5 CR106 units can be linked via Dante®

• Supports up to 30 zones using multiple CR106 units

• McIntosh Connect App control

• Web interface and front-panel control

• Individual source selection for each zone

• Individual volume, bass and treble adjustment

• Zone grouping capability

• Six optional EQ Voicings per zone

• Six Power Control Outputs

• RS232 control

• 2 network connections

• Solid-state design

• 2U rack-mountable construction

Multi-Room & Zone Management

The CR106 is designed specifically for distributed audio applications. Each of its six zones can operate independently, allowing different music sources to be played in different areas of a home or installation.

Dante® Multi-Unit Expansion

For large distributed audio installations, up to five CR106 units can be networked using Dante®. This allows the system to expand to as many as 30 independent two-channel audio zones, making the CR106 suitable for large residences, luxury homes and sophisticated custom-install projects.

Specifications

• Type  Digital Preamplifier / Audio Matrix

• Channels 2 channels per zone

• Number of Zones 6 independent zones

• Frequency Response ±0.5 dB, 20 Hz–20 kHz

• THD 0.005% maximum, 20 Hz–20 kHz

• Signal-to-Noise Ratio 96 dB

• Maximum Output 7V RMS Unbalanced

• Rated Output Voltage 2.5V Unbalanced

• Output Impedance 330 Ohms

• Input Impedance 50 kΩ Unbalanced

• High-Level Sensitivity 450 mV

• High-Level Voltage Gain 4.5V Unbalanced

• Phono Input Not Available

• Design Solid State

• Construction Single Chassis

• Output Meters No

• Power Consumption 45W

• Rack Mounting 2U

• Warranty  -Year Limited Warranty

• Width 17-1/2" / 44.5 cm

• Width with Mounting Brackets  19" / 48.3 cm

• Height 4-3/8" / 11.1 cm

• Depth 18-5/32" / 46.1 cm

• Unit Weight 15 lbs / 6.8 kg

• Shipping Weight 37.5 lbs / 17 kg

Professional Summary

McIntosh CR106 is a high-performance 6-zone digital preamplifier and audio matrix engineered for sophisticated distributed audio installations. With six independently controllable stereo zones, dedicated subwoofer outputs, Bluetooth, analog and digital connectivity, Dante® expansion, RS232 control and McIntosh Connect App integration, the CR106 provides a centralized and scalable solution for premium whole-home audio systems.
