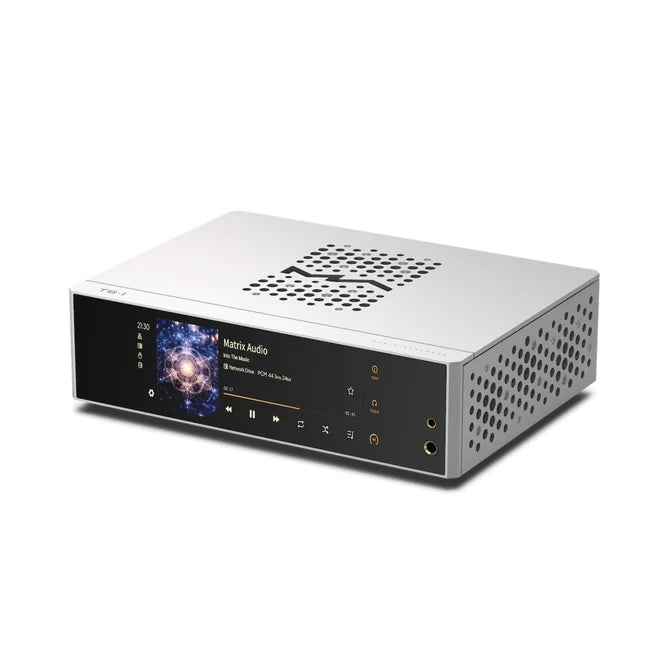

Matrix Audio TS-1 Music Streamer

Matrix Audio TS-1 Music Streamer

All-In-One Music Streamer, Dac & Headphone Amplifier For Modern Hi-Fi

The Matrix Audio TS-1 is a versatile all-in-one digital audio hub that combines a high-resolution music streamer, fully balanced DAC, headphone amplifier and analogue preamplifier into a single compact component. Designed for headphone listeners and active-speaker users, it provides a complete Hi-Fi system with minimal equipment while retaining the connectivity and performance expected from a serious audio component.

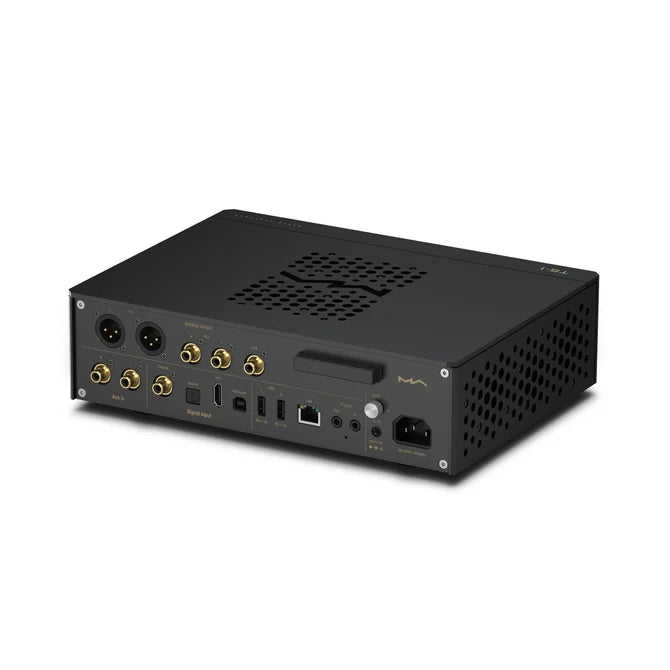

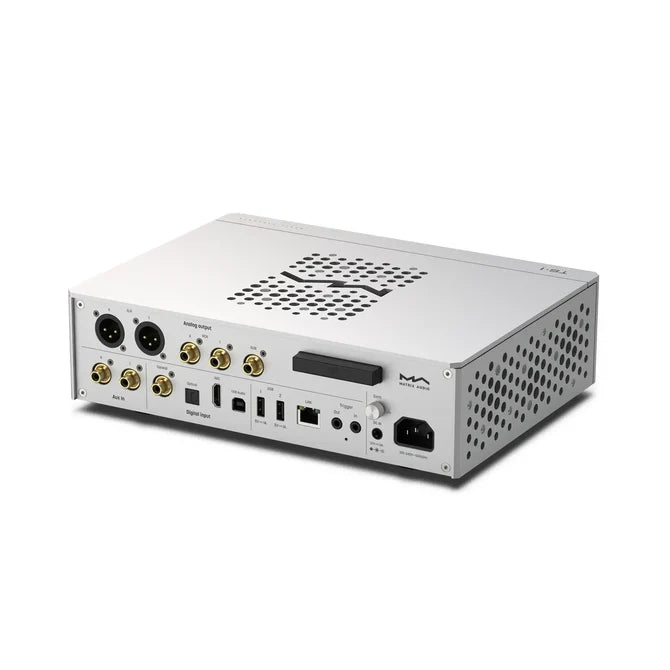

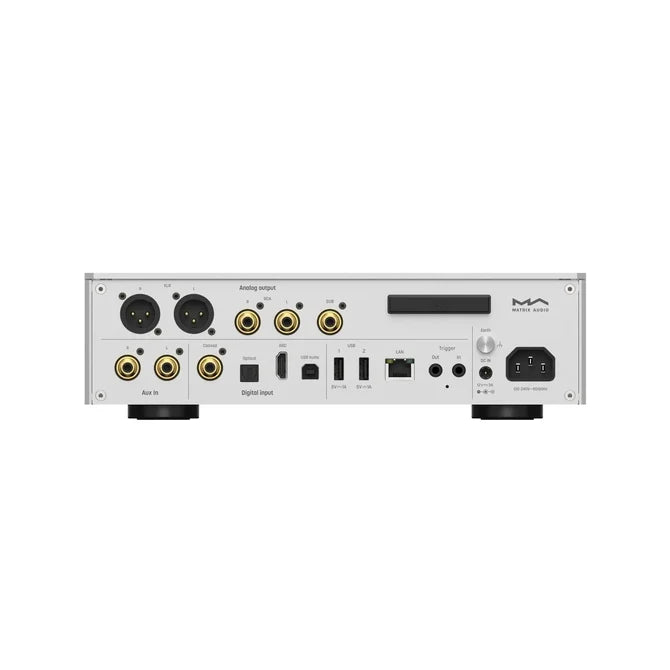

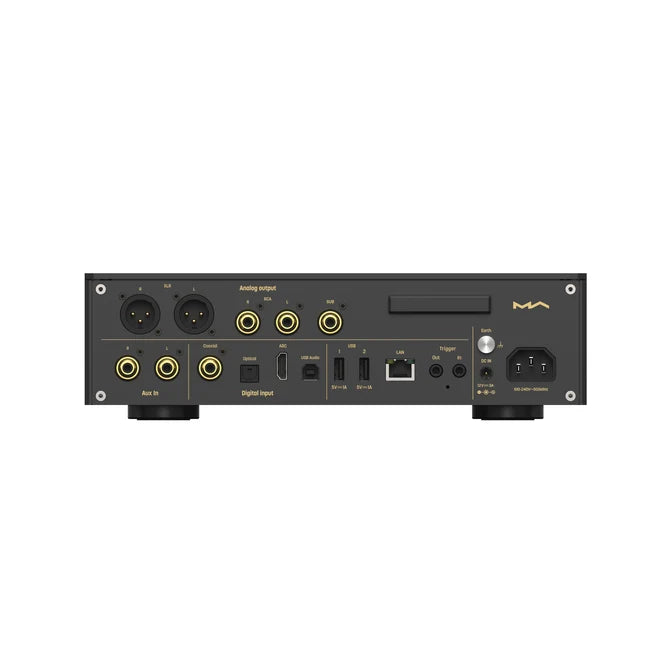

With network streaming, USB Audio, HDMI ARC, optical, coaxial and RCA inputs, balanced XLR and RCA outputs, dedicated subwoofer connectivity and both balanced and single-ended headphone outputs, the TS-1 can serve equally well on a desktop, in a dedicated headphone system or as the control centre for an active-speaker setup.

Key Features

• All-in-One Music Streamer, DAC & Headphone Amplifier – Combines the essential digital source and amplification stages into one compact component.

• Fully Balanced DAC Architecture – Uses dual AK4493SEQ DAC chips with independent power supplies for the left and right channels.

• High-Resolution Network Streaming – Supports local music libraries and major streaming platforms through Matrix Audio's MA Player platform.

• Roon Ready – Integrates directly into Roon-based high-resolution music systems.

• Qobuz Connect & TIDAL Connect – Provides direct control from supported streaming applications.

• Spotify Connect & AirPlay 2 – Convenient wireless music playback from compatible devices.

• Wi-Fi 6 & Gigabit Ethernet – Provides flexible and high-bandwidth network connectivity.

• Balanced 4.4mm Headphone Output – High-current headphone amplification provides up to 1,000mW output into 33Ω and 300Ω loads.

• 6.35mm Headphone Output – Provides up to 1,400mW into 33Ω for demanding headphones.

• Balanced XLR & RCA Line Outputs – Designed for direct connection to active loudspeakers or downstream amplification.

• Dedicated Subwoofer Output – Provides a 150Hz low-pass output with synchronised volume control.

• HDMI ARC – Allows television audio to become part of the same high-quality system.

• NVMe SSD Expansion – Internal M.2 NVMe storage can be added for local music libraries.

• CD Ripping Support – A compatible USB CD drive can be used with the MA Remote App to digitise CD collections.

Complete Streaming Platform

The TS-1 is powered by Matrix Audio's MA Player Hi-Fi streaming platform, combining network playback with an intuitive control environment through the MA Remote App.

It supports Roon Ready, Audirvana, TIDAL Connect, Qobuz Connect, Spotify Connect, AirPlay 2, QPlay and UPnP/DLNA, alongside access to services including TIDAL, Qobuz, HIGHRESAUDIO and internet radio.

The platform also supports local playback of a wide range of audio formats, making the TS-1 suitable for both streaming-focused listeners and users with extensive digital music collections.

Fully Balanced Dac Architecture

The TS-1 uses a fully balanced digital-to-analogue architecture with an AK4493SEQ DAC for each channel. The dual DAC configuration operates with independent power-supply sections, with each DAC receiving power through dedicated ultra-low-noise LDO regulation.

This architecture is designed to maintain channel separation and low-noise signal conversion while providing the resolution required for high-quality digital music playback.

Refined Headphone Amplification

The TS-1 incorporates a fully balanced, high-bias discrete headphone amplifier designed to drive a broad range of headphones and in-ear monitors.

The 4.4mm balanced output provides up to 1,000mW into 33Ω and 300Ω loads, while the 6.35mm single-ended output provides up to 1,400mW into 33Ω. The amplifier's low output impedance is designed to provide effective control across a wide range of headphone loads.

Two output-gain settings allow the TS-1 to accommodate both sensitive IEMs and higher-impedance full-size headphones.

Desktop To Living Room

The TS-1 is designed to adapt to different listening environments rather than being restricted to a conventional Hi-Fi rack.

Connect a pair of active speakers directly through the XLR or RCA outputs for a minimalist desktop system, or connect it to an active-speaker setup in the living room. HDMI ARC also allows television audio to be incorporated without requiring a separate DAC or preamplifier.

Dedicated Subwoofer Output

A dedicated subwoofer output makes the TS-1 particularly useful with compact active speakers.

The output is designed to handle frequencies below 150Hz, with volume synchronisation maintained with the main line outputs. This makes it possible to build a compact 2.1-channel system while extending the low-frequency performance of smaller active speakers.

Local Music, Nas & Internal Storage

The TS-1 can access music stored on network-attached storage and supports mounting NAS drives directly to the device.

Its internal M.2 NVMe PCIe SSD slot allows additional storage to be installed, while SMB connectivity allows computers on the same network to access and manage the stored music. The TS-1 can also operate as a network storage source for compatible streamers.

Two USB 3.0 ports provide additional storage connectivity and support FAT, FAT32, exFAT and NTFS file systems.

Optional Linear Power Supply

The TS-1 includes a dedicated DC power input that allows users to connect a compatible external linear power supply.

When external DC power and AC power are connected simultaneously, the system prioritises the external power input. Matrix Audio also incorporates power filtering and multiple low-noise LDO stages to provide independent power regulation for different circuit sections.

Features

• All-in-one music streamer, DAC and headphone amplifier.

• MA Player Hi-Fi Streaming OS.

• MA Remote App.

• Fully balanced DAC architecture.

• Dual AK4493SEQ DAC configuration.

• Roon Ready.

• Audirvana.

• Qobuz Connect.

• TIDAL Connect.

• Spotify Connect.

• AirPlay 2.

• QPlay.

• UPnP/DLNA.

• TIDAL, Qobuz and HIGHRESAUDIO.

• Internet radio.

• Wi-Fi 6 connectivity.

• Gigabit Ethernet.

• USB Audio input.

• HDMI ARC input.

• Coaxial digital input.

• Optical digital input.

• RCA analogue input.

• Balanced XLR line output.

• RCA line output.

• Dedicated subwoofer output.

• 4.4mm balanced headphone output.

• 6.35mm single-ended headphone output.

• Two USB 3.0 ports.

• M.2 NVMe PCIe SSD expansion.

• NAS and SMB music-library support.

• CD ripping through compatible USB CD drive.

• External DC power input.

• 12V trigger input and output.

• Titanium Silver and Obsidian Black finishes.

Specifications

• Model: TS-1

• Product Type: Music Streamer / DAC / Headphone Amplifier

• DAC: Dual AK4493SEQ, fully balanced architecture

• Digital Inputs: Coaxial, Optical, USB Audio, HDMI ARC

• Analogue Input: RCA

• Coaxial / Optical: PCM 16–24-bit / 44.1–192kHz; DSD 2.8MHz via DoP

• HDMI ARC: PCM 16–24-bit / 44.1–192kHz

• USB Audio: PCM up to 32-bit/768kHz; Native DSD up to 22.4MHz

• XLR Line Output: 4.5VRMS @ 0dB; adjustable 0–4.5VRMS

• RCA Line Output: 2.2VRMS @ 0dB; adjustable 0–2.2VRMS

• Subwoofer Output: 150Hz cutoff @ -3dB; 2.2VRMS @ 0dB

• 4.4mm Balanced Headphone Output: 1,000mW @ 33Ω; 1,000mW @ 300Ω; 500mW @ 600Ω

• 6.35mm Single-Ended Headphone Output: 1,400mW @ 33Ω; 250mW @ 300Ω; 130mW @ 600Ω

• Headphone Output Impedance: <2Ω balanced; <1Ω single-ended

• Network: 10/100/1000Mbps Ethernet; 2.4GHz / 5GHz Wi-Fi

• USB: 2 × USB 3.0

• Storage Expansion: M.2 2242 / 2260 / 2280 NVMe PCIe SSD

• SSD Interface: PCIe 3.0 / 4.0 / 5.0 compatible

• Trigger Input: DC 6–12V / <10mA

• Trigger Output: DC 12V / 50mA maximum

• AC Power: 100–240V, 50/60Hz

• DC Input: 12V ±10%; external power supply >36W

• Maximum Power Consumption: <35W

• Standby Power Consumption: <5W

• Dimensions: 280 × 210 × 82mm

• Weight: 2.89kg

In The Box

• Matrix Audio TS-1 Music Streamer

• Power Cable

• IR Remote Control

• Printed Materials
