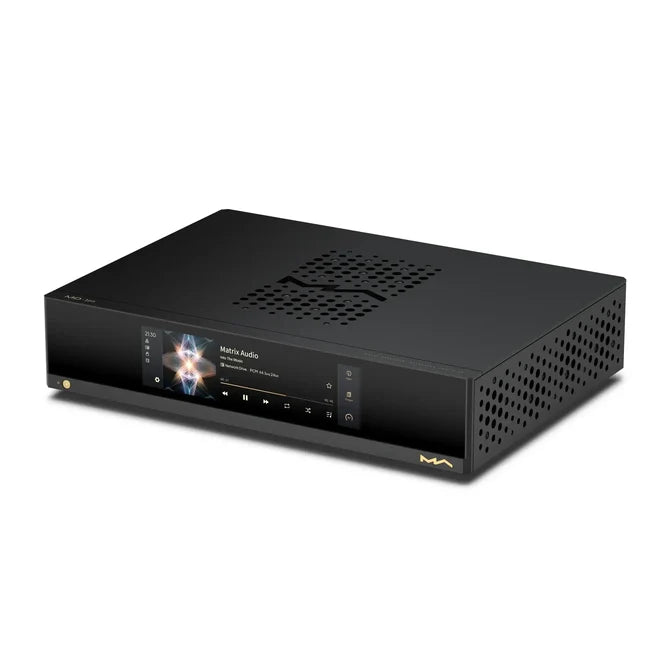

Matrix Audio MD-1P Streaming Integrated Amplifier

Matrix Audio MD-1P Streaming Integrated Amplifier

High-Power Music Streamer & Integrated Amplifier For Serious Hi-Fi Systems

The Matrix Audio MD-1P brings high-resolution music streaming, advanced digital processing and powerful amplification together in a single premium chassis. Designed for listeners who want a simplified Hi-Fi system without compromising performance, the MD-1P combines a comprehensive streaming platform with a high-output integrated amplifier capable of delivering 300W per channel into 8Ω.

With extensive digital and analogue connectivity, an integrated MM phono stage, dedicated subwoofer outputs, HDMI ARC, high-resolution Bluetooth and support for leading streaming platforms, the MD-1P can serve as the central component of a sophisticated two-channel music system.

Key Features

• 300W per Channel at 8Ω – High-output amplification provides the current and control required to drive a wide range of bookshelf and floorstanding loudspeakers.

• Integrated Music Streaming Platform – MA Player and MA Remote App provide access to local music libraries and network streaming services from a single system.

• AK4493SEQ DAC – Matrix Audio's digital architecture supports high-resolution PCM and DSD playback for detailed and accurate digital reproduction.

• Dual Femtosecond Clocks & FPGA Processing – Precision clocking and proprietary jitter-reduction processing are designed to maintain timing accuracy throughout the digital signal path.

• High-Resolution Bluetooth – Supports LDAC, aptX HD, aptX, AAC and SBC.

• HDMI ARC – Makes the MD-1P suitable for integration with a television while retaining a high-quality two-channel audio system.

• MM Phono Stage – Built-in RIAA phono amplification allows direct connection of a turntable with an MM cartridge.

• Dual Speaker Outputs – Two pairs of speaker terminals allow A/B speaker selection and convenient comparison between speaker pairs.

• Subwoofer Output – Dedicated SUB output with a 150Hz cutoff provides flexible integration with active subwoofers.

• NVMe SSD Expansion – Internal M.2 NVMe storage expansion allows users to build and manage a local music library.

• Extensive Streaming Support – Compatible with Roon Ready, Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay 2 and UPnP/DLNA.

Powerful Integrated Amplification

At the heart of the MD-1P is a high-efficiency amplification stage delivering 2 × 300W RMS at 8Ω. The amplifier is designed for strong control and stability, making it suitable for both compact bookshelf speakers and demanding floorstanding loudspeakers. The MD-1P supports speaker loads from 2–16Ω when using a single output pair, while simultaneous A+B operation supports 4–16Ω loads.

Its low output impedance of less than 3mΩ contributes to precise control of the connected loudspeaker, while the amplifier's 122dB A-weighted SNR helps maintain a clean and detailed presentation.

Precision Digital Audio Architecture

The MD-1P combines a high-performance DAC architecture with Matrix Audio's FPGA-based digital processing and dual femtosecond clock system.

The dual clocks provide dedicated reference signals for 44.1kHz, 48kHz and their multiples, while the FPGA performs clock division and jitter-reduction processing. This architecture is designed to preserve timing accuracy and minimise unwanted digital artefacts.

USB Audio supports PCM resolutions up to 32-bit/768kHz and native DSD playback up to DSD512, making the MD-1P suitable for high-resolution digital music libraries.

Complete Streaming Ecosystem

The MD-1P is more than a conventional integrated amplifier. Its MA Player platform provides a complete network music environment, allowing users to access streaming services, local music libraries and network storage from one device.

It supports Roon Ready, Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay 2 and UPnP/DLNA, along with internet radio services. Control is provided through the Matrix Audio MA Remote App.

The MD-1P also includes an M.2 NVMe SSD expansion slot, allowing internal music storage to be added and managed directly through the system.

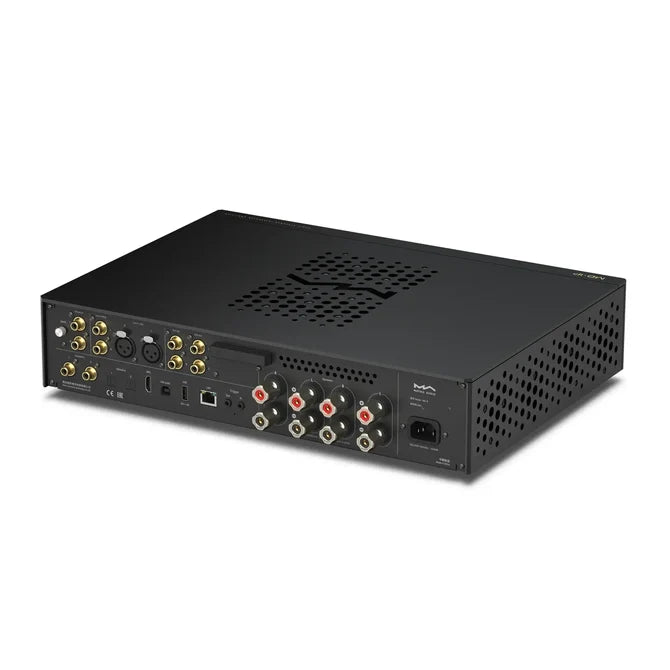

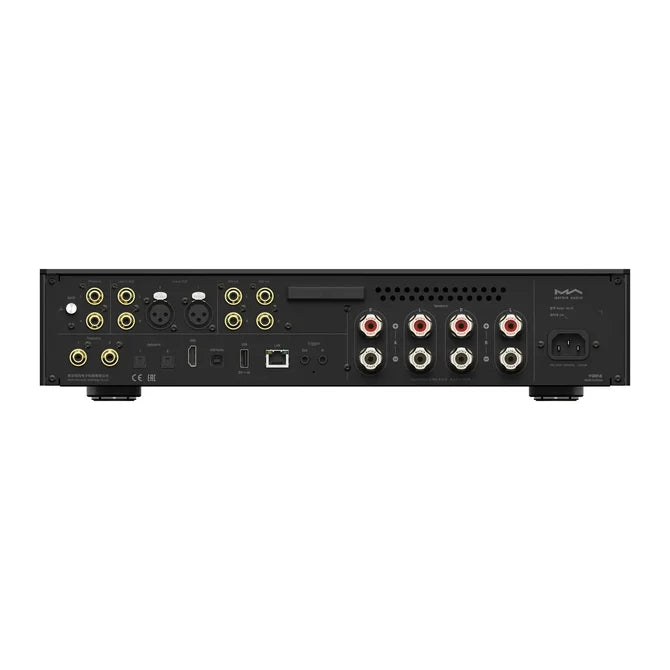

Flexible Digital & Analogue Connectivity

The MD-1P is designed to accommodate modern digital sources as well as traditional analogue components.

Digital connectivity includes coaxial, optical, USB Audio and HDMI ARC inputs. For wireless sources, high-resolution Bluetooth supports LDAC, aptX HD, aptX, AAC and SBC.

Analogue connectivity includes balanced XLR and RCA line inputs, while the integrated MM phono stage provides a convenient solution for vinyl playback without requiring a separate phono preamplifier.

The MD-1P also provides RCA pre-out and dedicated subwoofer output connections, allowing the system to be expanded with external amplification and active subwoofers.

Precision Volume Control

The MD-1P employs a 256-step digitally controlled analogue preamplifier volume system, providing precise volume adjustment from -80dB to +12dB in 0.5dB increments.

A 12-step channel-balance compensation system also allows fine adjustment for differences in speaker placement and room conditions.

Features

• 2 × 300W RMS output at 8Ω.

• High-efficiency Class-D amplification architecture.

• AK4493SEQ DAC architecture.

• Dual femtosecond clock system.

• FPGA-based jitter-reduction processing.

• PCM support up to 32-bit/768kHz via USB Audio.

• Native DSD support up to DSD512.

• Roon Ready.

• Qobuz Connect.

• TIDAL Connect.

• Spotify Connect.

• AirPlay 2.

• UPnP/DLNA.

• High-resolution Bluetooth with LDAC and aptX HD.

• HDMI ARC input.

• XLR and RCA analogue inputs.

• Integrated MM phono stage.

• RCA pre-out.

• Dedicated subwoofer output.

• Dual A/B speaker outputs.

• Gigabit Ethernet and dual-band Wi-Fi.

• M.2 NVMe SSD expansion.

• MA Remote App control.

• USB 3.0 connectivity.

• 12V trigger input and output.

Specifications

• Model: MD-1P

• Amplifier Output: 2 × 300W RMS @ 8Ω

• Output Impedance: <3mΩ

• Frequency Response: 20Hz–20kHz ±0.1dB; 45kHz @ -3dB

• SNR: 122dB A-weighted

• Crosstalk: -120dB

• Gain: +33dB

• Speaker Impedance: 2–16Ω (A or B); 4–16Ω (A+B)

• XLR Input Impedance: 47kΩ

• XLR Maximum Input Level: 8VRMS

• RCA Input Impedance: 47kΩ

• RCA Maximum Input Level: 4VRMS

• MM Phono Gain: +40dB

• Phono Input: 47kΩ / 100pF

• Phono Response: RIAA

• Pre-Out Impedance: <20Ω

• Subwoofer Cutoff: 150Hz

• Network: Gigabit Ethernet; 2.4GHz / 5GHz Wi-Fi

• Bluetooth: Bluetooth 5.0; LDAC, aptX, aptX HD, AAC, SBC

• Digital Inputs: Coaxial, Optical, HDMI ARC, USB Audio

• USB: USB 3.0

• Storage Expansion: M.2 NVMe PCIe SSD slot

• Power Supply: AC 100–240V, 50/60Hz

• Maximum Power Consumption: 1250W

• Idle Power Consumption: <45W

• Standby Power Consumption: <5W

• Dimensions: 430 × 331 × 96mm

• Weight: 7.6kg

 In The Box

• Matrix Audio MD-1P Streaming Integrated Amplifier

• Power Cable

• IR Remote Control

• Printed Materials
