Matrix Audio MD-1 Streaming Integrated Amplifier

Matrix Audio MD-1 Streaming Integrated Amplifier

High-Power Network Streaming Amplifier For A Complete Two-Channel System

The Matrix Audio MD-1 combines high-resolution network streaming, advanced digital audio processing and powerful integrated amplification in a single premium component. Designed for listeners who want a sophisticated two-channel system with fewer boxes, it brings streaming, digital conversion, analogue connectivity and high-output amplification together in one carefully engineered chassis.

With 300W per channel into 8Ω, extensive wired and wireless connectivity, an integrated MM phono stage, HDMI ARC, dedicated subwoofer output and support for leading streaming platforms, the MD-1 can serve as the central hub of a serious Hi-Fi music system.

Key Features

• 300W Per Channel at 8Ω – Delivers substantial power and control for a wide range of bookshelf and floorstanding loudspeakers.

• Integrated Network Streaming – Matrix Audio's MA Player platform provides access to streaming services, local music and network libraries.

• AK4493SEQ DAC – High-performance digital-to-analogue conversion supports high-resolution PCM and DSD playback.

• Dual Femtosecond Clock Architecture – Precision clocking and FPGA-based processing help maintain accurate digital timing.

• High-Resolution Bluetooth – Supports LDAC, aptX HD, aptX, AAC and SBC.

• HDMI ARC – Allows the MD-1 to become part of a high-quality two-channel system centred around a television.

• Integrated MM Phono Stage – Connect a turntable directly without requiring a separate phono preamplifier.

• Dual Speaker Outputs – Two pairs of speaker terminals provide A/B speaker selection.

• Dedicated Subwoofer Output – Allows straightforward integration of an active subwoofer.

• NVMe SSD Expansion – Internal M.2 NVMe storage can be added for local music-library playback.

• Extensive Streaming Support – Roon Ready, Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay 2 and UPnP/DLNA are supported.

Powerful Integrated Amplification

The MD-1 is designed to provide the power and control expected from a serious integrated amplifier, delivering 2 × 300W RMS into 8Ω.

Its high-output amplification stage provides the drive required for both compact bookshelf speakers and larger floorstanding designs, while the low output impedance helps maintain control over the connected loudspeaker.

With support for a broad range of speaker impedances, the MD-1 offers the flexibility required for different Hi-Fi system configurations.

Precision Digital Audio Architecture

The MD-1 combines a high-performance DAC section with FPGA-based digital processing and a dual femtosecond clock architecture.

The precision clock system provides dedicated references for different sampling-rate families, while the FPGA handles clock division and digital processing to maintain accurate timing throughout the signal path.

USB Audio supports high-resolution PCM up to 32-bit/768kHz and native DSD playback up to DSD512, making the MD-1 suitable for demanding high-resolution music libraries.

Complete Streaming Ecosystem

The MD-1 is built around Matrix Audio's MA Player platform, giving users access to a comprehensive network music environment from a single component.

It supports Roon Ready, Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay 2 and UPnP/DLNA, allowing music to be streamed from online services, computers, NAS devices and compatible mobile devices.

The MA Remote App provides convenient control of playback, music libraries, inputs and system functions.

Internal NVMe SSD expansion also allows users to build a local music library directly within the MD-1.

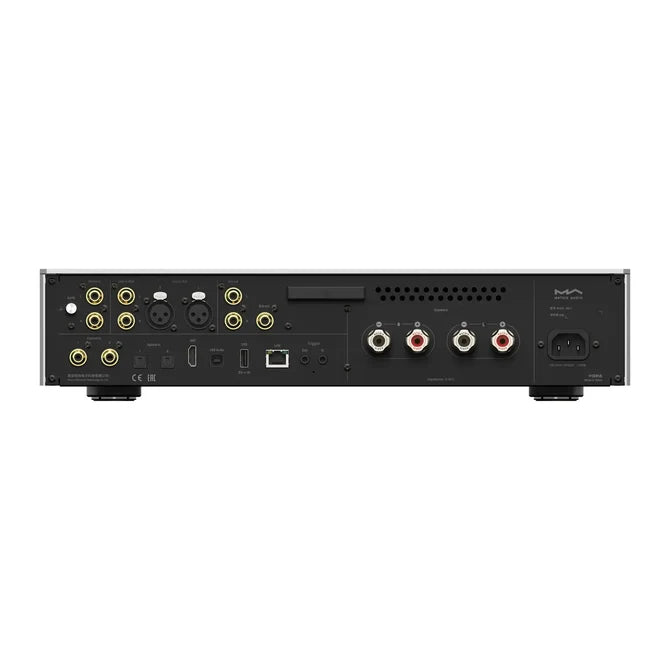

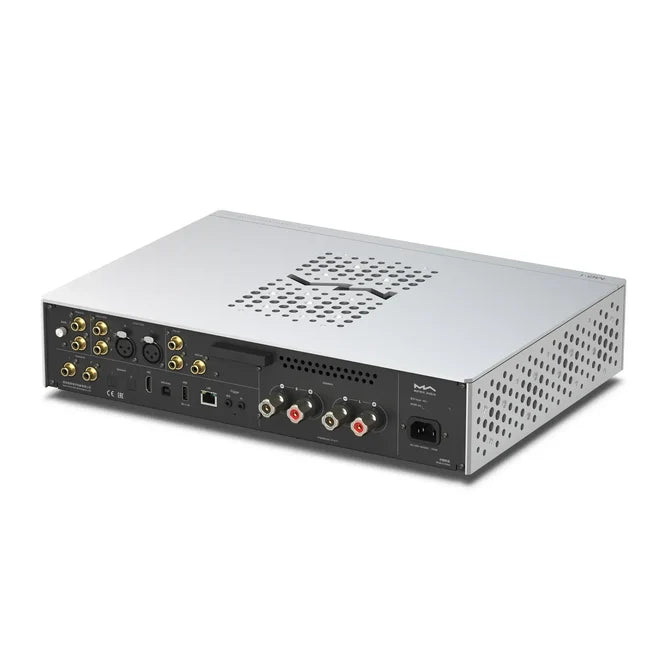

Flexible Digital & Analogue Connectivity

The MD-1 is designed to accommodate both modern digital sources and traditional analogue components.

Digital inputs include coaxial, optical, USB Audio and HDMI ARC, while Bluetooth provides convenient wireless playback with support for high-resolution codecs including LDAC and aptX HD.

For analogue sources, the MD-1 provides balanced XLR and RCA inputs together with an integrated MM phono stage. A dedicated pre-out and subwoofer output allow the system to be expanded as required.

Designed For System Flexibility

The MD-1 can function as the central component of a wide variety of two-channel systems.

Connect a television through HDMI ARC, a turntable through the integrated MM phono input, digital sources through USB or optical, and stream music directly over the network. Add an active subwoofer when additional low-frequency extension is required.

For listeners looking to simplify their system without sacrificing connectivity or amplifier power, the MD-1 offers a particularly versatile one-box solution.

Features

• 2 × 300W RMS output at 8Ω.

• High-efficiency Class-D amplification architecture.

• AK4493SEQ DAC.

• Dual femtosecond clock architecture.

• FPGA-based digital processing.

• PCM support up to 32-bit/768kHz.

• Native DSD support up to DSD512.

• Roon Ready.

• Qobuz Connect.

• TIDAL Connect.

• Spotify Connect.

• AirPlay 2.

• UPnP/DLNA.

• High-resolution Bluetooth.

• LDAC and aptX HD.

• HDMI ARC.

• XLR and RCA analogue inputs.

• Integrated MM phono stage.

• RCA pre-out.

• Dedicated subwoofer output.

• Dual A/B speaker outputs.

• Gigabit Ethernet.

• Dual-band Wi-Fi.

• M.2 NVMe SSD expansion.

• MA Remote App.

• USB 3.0.

• 12V trigger input and output.

Specifications

• Model: MD-1

• Amplifier Output: 2 × 300W RMS @ 8Ω

• Output Impedance: <3mΩ

• Frequency Response: 20Hz–20kHz ±0.1dB; 45kHz @ -3dB

• Signal-to-Noise Ratio: 122dB A-weighted

• Crosstalk: -120dB

• Gain: +33dB

• Speaker Impedance: 2–16Ω (A or B); 4–16Ω (A+B)

• XLR Input Impedance: 47kΩ

• XLR Maximum Input Level: 8VRMS

• RCA Input Impedance: 47kΩ

• RCA Maximum Input Level: 4VRMS

• MM Phono Gain: +40dB

• Phono Input: 47kΩ / 100pF

• Phono Response: RIAA

• Pre-Out Impedance: <20Ω

• Subwoofer Cutoff: 150Hz

• Network: Gigabit Ethernet; 2.4GHz / 5GHz Wi-Fi

• Bluetooth: Bluetooth 5.0; LDAC, aptX, aptX HD, AAC, SBC

• Digital Inputs: Coaxial, Optical, HDMI ARC, USB Audio

• USB: USB 3.0

• Storage Expansion: M.2 NVMe PCIe SSD slot

• Power Supply: AC 100–240V, 50/60Hz

• Maximum Power Consumption: 1250W

• Idle Power Consumption: <45W

• Standby Power Consumption: <5W

• Dimensions: 430 × 331 × 96mm

• Weight: 7.6kg

In The Box

• Matrix Audio MD-1 Streaming Integrated Amplifier

• Power Cable

• IR Remote Control

• Printed Materials
