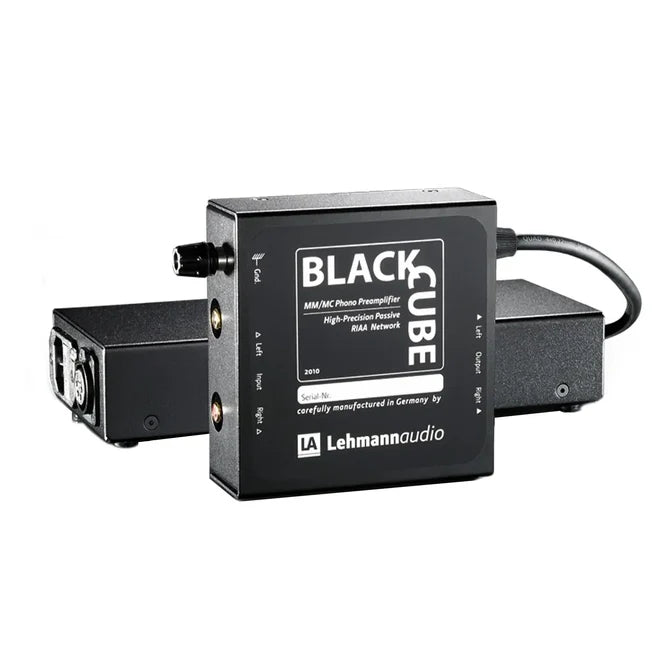

Lehmann Audio Black Cube Se Phono Preamplifier

Lehmann Audio Black Cube Se Phono Preamplifier

The Power-Enhanced Black Cube For Refined, Dynamic Vinyl Playback

The Lehmann Audio Black Cube SE is a high-performance MM/MC phono preamplifier designed for serious vinyl systems where greater authority, openness and musical refinement are required. Building on the proven Black Cube circuit, the SE version adds Lehmann Audio's more powerful PWX external power supply to deliver enhanced power reserves and a more effortless presentation.

Designed and engineered in Germany, the Black Cube SE combines precision passive RIAA equalisation, low-noise input stages and flexible cartridge matching with a dedicated high-capacity power supply. The result is a sophisticated phono stage designed to extract greater bass authority, relaxed midrange reproduction and enhanced openness from a high-quality vinyl system.

Key Features

• High-Performance MM/MC Phono Stage – Compatible with a wide range of Moving Magnet and Moving Coil cartridges.

• Powerful PWX External Power Supply – Provides enhanced power reserves for more effortless and dynamic musical reproduction.

• Four Selectable Gain Settings – 36dB, 46dB, 56dB and 66dB for flexible cartridge matching.

• Precision Passive RIAA Equalisation – Designed for accurate tonal balance and excellent transient response.

• Flexible Cartridge Loading – Includes 47kΩ, 1kΩ and 100Ω settings, custom-load capability and a hardwire slot.

• Low-Noise Circuit Design – Uses high-quality low-noise input stages designed to preserve delicate vinyl information.

• High Channel Separation – Greater than 85dB at 10kHz for precise stereo imaging.

• Non-Magnetic Aluminium Housings – Designed to help reduce unwanted interference and mechanical resonance.

• Shielded Power Connection – Uses gold-plated Neutrik XLR connectors between the audio section and PWX power supply.

• Compact Dual-Unit Design – Allows flexible placement close to the turntable while maintaining a discreet system footprint.

The Black Cube With Greater Power Reserves

The Black Cube SE retains the core circuit design of the classic Black Cube while adding the significantly more powerful PWX power supply. This upgrade is designed to provide greater power reserves for complex musical passages and demanding recordings.

The result is a phono stage designed to deliver greater bass authority, relaxed midrange reproduction and increased openness at the top end, helping the music sound more effortless and emotionally engaging.

Precision Analog Circuit Design

At the heart of the Black Cube SE is a carefully developed phono circuit with precision passive RIAA equalisation. The design is intended to maintain accurate tonal balance while preserving the transient information and low-level detail contained in the record groove.

Its low-noise input stages are designed to handle the delicate signals produced by both MM and MC cartridges, helping the system reveal fine detail, texture and spatial information from vinyl recordings.

Flexible Cartridge Matching

The Black Cube SE provides four gain settings from 36dB to 66dB, allowing it to be matched to a broad range of MM and MC cartridges.

Selectable input impedance settings of 47kΩ, 1kΩ and 100Ω provide further flexibility, while the custom-load option and hardwire slot allow more specialised cartridge configurations for demanding analog systems.

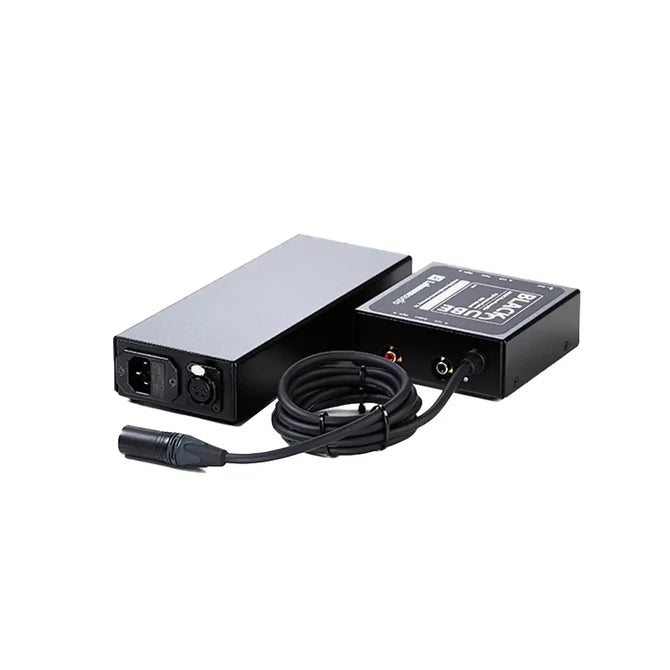

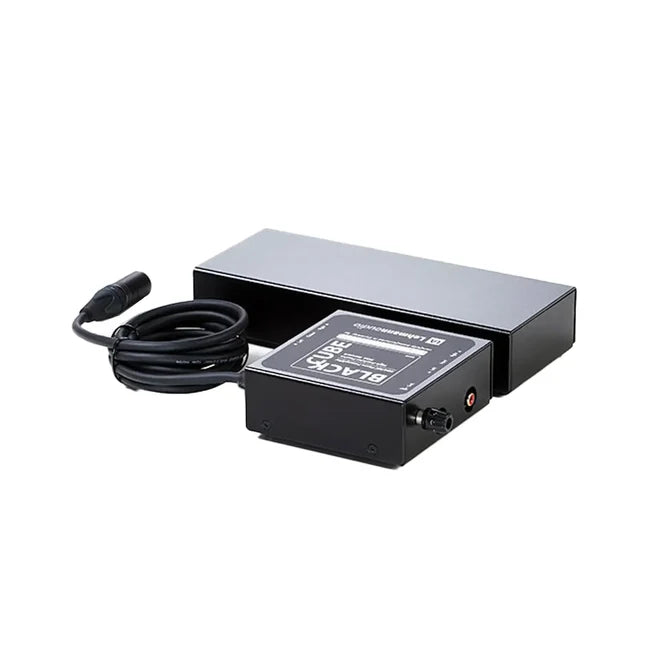

The Pwx Power Supply

The external PWX power supply is a defining feature of the Black Cube SE. Designed to provide significantly greater power reserves than the standard Black Cube power supply, it is intended to support a more powerful, relaxed and effortless presentation.

The PWX can be positioned close to the turntable drive, while the shielded connection between the power supply and audio section helps maintain a clean and carefully controlled signal environment. Gold-plated Neutrik XLR connectors provide a secure connection between the two units.

Features

• High-performance MM/MC phono preamplifier.

• PWX high-power external power supply.

• Precision passive RIAA equalisation network.

• Four gain settings: 36dB, 46dB, 56dB and 66dB.

• Selectable input impedance: 47kΩ, 1kΩ and 100Ω.

• Custom impedance load option.

• Additional hardwire slot.

• 100pF input capacitance.

• Greater than 85dB channel separation at 10kHz.

• 47Ω output impedance.

• 50Hz bass filter with 6dB/octave slope.

• Low-noise input stages.

• Gold-plated RCA signal connectors.

• Gold-plated Neutrik XLR power connectors.

• Shielded connection cable between audio and power sections.

• Non-magnetic aluminium housings.

• Mechanically damped top covers.

• German-engineered phono stage.

Specifications

• Product Type: Phono Preamplifier

• Cartridge Compatibility: MM / MC

• Gain: 36dB, 46dB, 56dB, 66dB

• Input Impedance: 47kΩ, 1kΩ, 100Ω, 1 × Custom Load

• Hardwired Load: 1 × Hardwire Slot

• Input Capacitance: 100pF

• Output Impedance: 47Ω

• Channel Separation: >85dB at 10kHz

• Channel Mismatch: Typically 0.5dB

• Signal-to-Noise Ratio – MM: 71dB

• Signal-to-Noise Ratio – MC: 63dB

• Maximum Input Level – MM: 45mV at 1kHz

• Maximum Input Level – MC: 4.5mV at 1kHz

• Bass Filter: 50Hz, 6dB/octave

• Power Consumption: <3W

• Audio Section Dimensions (W × D × H): 113 × 108 × 45mm

• PWX Power Supply Dimensions (W × D × H): 93 × 233 × 45mm

• Audio Section Weight: 0.4kg including cable to power supply

• PWX Power Supply Weight: 1.0kg

• Design: Separate audio section and external PWX power supply

• Construction: Non-magnetic aluminium housings

In The Box

• Lehmann Audio Black Cube SE Phono Preamplifier

• Lehmann Audio PWX External Power Supply

• Shielded Power Connection Cable

• Power Cable

• Manufacturer Documentation
