HiFi Rose RD 160 Digital to Analog Convertor

The RD160 elevates the details of your music to a new dimension. With its precise Digital Processing Core module, an Architecture that isolates digital and analog paths for transparent and precise conversion without distortion, a Fully balanced design that maintains the purity of the signal, three independent power supplies for each circuit that enhance clarity and dynamics, and noise filter that vividly convey even the most delicate nuances of the music, the RD160 embodies ROSE's meticulous engineering and innovative technology, guiding you into a purer, more authentic world of sound.

The RD160 embodies a perfect fusion of advanced technology and aesthetics. Its sleek metallic case combines luxury with durability, while the precisely crafted edges and smooth surfaces convey a sense of high-quality craftsmanship. The elegantly integrated hidden screen on the front panel offers an intuitive visual representation of the digital signal processing and status through various display modes, providing a user experience reminiscent of operating a futuristic device. The meticulously designed knobs and buttons interact with the hidden screen in real-time, delivering a precise and satisfying tactile response. More than just an audio device, the RD160 is the perfect choice to bring a touch of modern sophistication and technological elegance to your space.

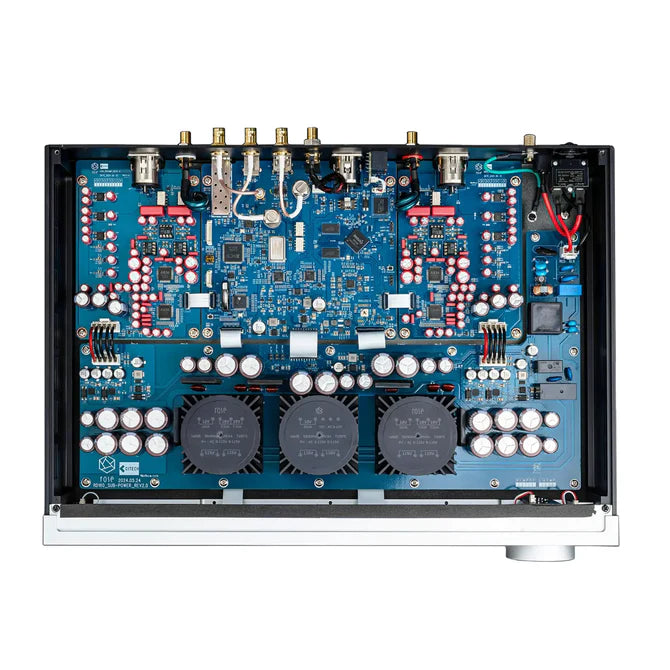

• 2-chip audiophile AKM DAC module

• AK4191 chip handles digital filtering and initial delta-sigma conversion stages

• AK4499EX chip performs digital-to-analog conversion

• three reference linear power supply units minimize interference between channels and prevent digital noise

• high-quality J-FET input dual op-amps developed in collaboration with MUSES provide wide dynamic range and super-low distortion

• Rose NRA™ filtering provides wide, consistent frequency response

• high-precision OCXO clock suppresses timing errors that can smear musical detail

• ROSE DPC™ module precisely synchronizes digital input signals with the OCXO clock for immediate, lifelike sound

• 4 upsampling and 6 filter options for flexibility in getting the best sound from a variety of recordings

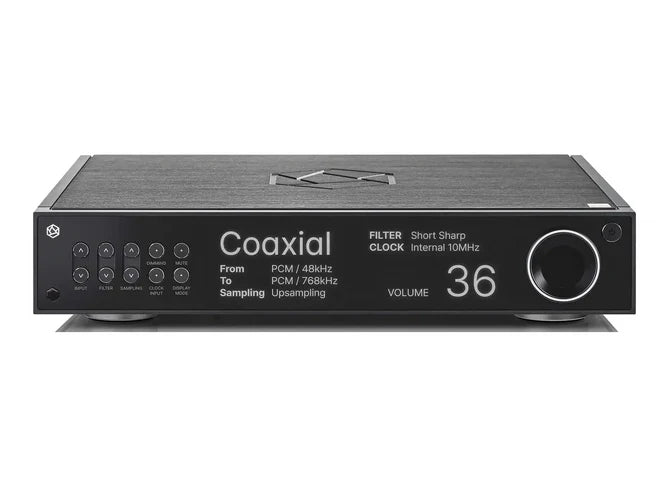

• large "hidden" display shows source, upsampling and filter selections, volume, and more in a circuit-like design

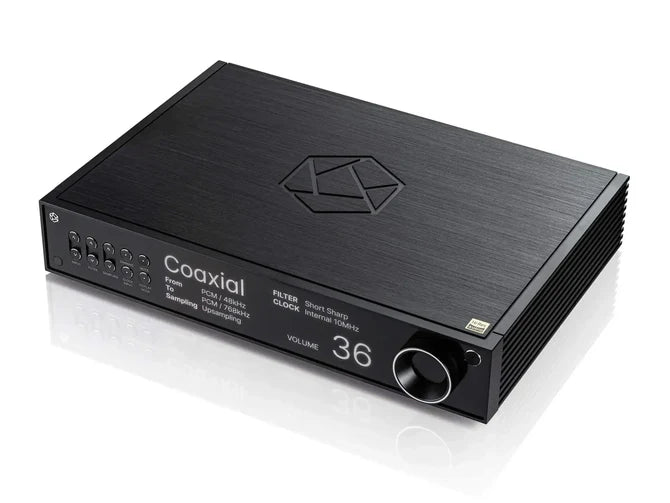

• chassis machined from a single piece of high-purity aluminum minimizes vibrations that could interfere with audio signal

• heat sink side panels keep operating temperature cool

• high-quality oxygen-free copper wiring in internal power and audio input/output sections ensures distortion-free signal transmission

Specifications

• Input Sensitivity -0dBF 1kHz

• Output Impedance -300Ω

• Output Level -4.5Vrms(RCA), 9Vrms(XLR)

• THD + N -0.005%(RCA), 0.005%(XLR) (1kHz 0dBF)

• Signal to Noise Ratio -124dB(RCA), 124dB(XLR)

• Residual Noise -0.3mV(RCA), 0.4mV(XLR)

• Stereo Crosstalk -124dB(RCA), -124dB(XLR) (1kHz 0dBF)

• Frequency Response -10Hz ~ 20kHz (-0.3dB), 10Hz ~ 50kHz (-1.5dB), 10Hz ~ 73kHz (-3.0dB)

• PCM Sampling Rate -8kHz~768kHz(8/16/24/32bit per Sample)

• RAM -DDR3 1866MHz 1GB

• FLASH -8GB eMMC

• Power Input Voltage -AC110V-120V~, 220V-240V~, 50/60Hz

• Standby Power -0.3W

• Playback Power -30W

• Dimension -430(W) × 330(D) × 88(H) mm

• Weight -10kg

In The Box

• HiFi Rose RD 160 Digital to Analog Convertor

• Limited 1-Year Manufacturer Warrant
