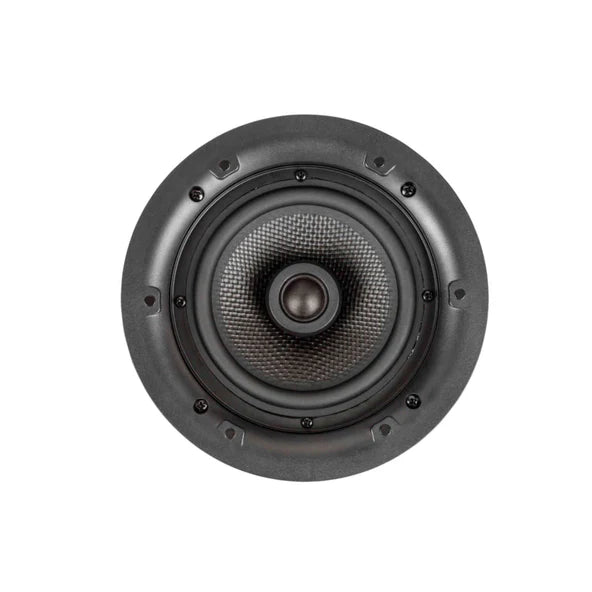

ELAC IC-1005 IN-CEILING SPEAKER (EACH)
DISCREET ARCHITECTURAL SPEAKER FOR WHOLE-HOME AUDIO & HOME THEATRE
The ELAC IC-1005 is designed for homeowners who want exceptional sound without compromising the aesthetics of their living spaces. Installed flush into the ceiling, it delivers balanced, natural audio while remaining virtually invisible, making it an excellent choice for modern homes, apartments and dedicated entertainment spaces.
Whether you're creating a whole-home music system, expanding an existing surround sound setup or adding Dolby Atmos height channels to your home theatre, the IC-1005 combines dependable acoustic performance with effortless integration and installation flexibility.
KEY FEATURES
-
Compact 2-Way Architectural Speaker – Delivers balanced sound reproduction while blending seamlessly into modern interiors.
-
Coaxial Driver Design – Aligns the tweeter and woofer on the same acoustic axis for improved imaging and consistent sound dispersion.
-
20 mm Fabric Dome Tweeter – Produces smooth, detailed high frequencies with natural vocal reproduction.
-
130 mm Fibreglass Reinforced Polypropylene Woofer – Offers controlled midrange performance and clean, articulate bass.
-
Magnetic Paintable Grille – Integrates discreetly into your ceiling and can be painted to match your décor.
-
Flexible Installation – Suitable for wall or ceiling installations up to 35 mm thick.
DESIGNED FOR MODERN LIVING
Architectural speakers allow you to enjoy high-quality sound without introducing additional speakers into your living space. The IC-1005 disappears into the ceiling while providing room-filling audio, making it ideal for living rooms, bedrooms, kitchens, dining areas and open-plan spaces where aesthetics are just as important as performance.
BALANCED ACOUSTIC PERFORMANCE
The IC-1005's coaxial driver configuration delivers a coherent and natural soundstage by allowing high and low frequencies to originate from a single acoustic point. This results in improved vocal clarity, consistent tonal balance and wide sound dispersion, ensuring an enjoyable listening experience throughout the room rather than from a single seating position.
Whether used for background music, distributed audio or immersive surround sound, the IC-1005 delivers reliable performance with excellent clarity and detail.
SIMPLE & FLEXIBLE INSTALLATION
Designed with both installers and homeowners in mind, the IC-1005 features a robust mounting system and a tool-free magnetic grille that can be removed or reinstalled with ease. Its compact dimensions make installation straightforward while maintaining a premium finished appearance once fitted into the ceiling.
FEATURES
- 70W in-ceiling loudspeaker.
- 6 Ohm nominal impedance.
- Suitable for wall or ceiling installations up to 35 mm thick.
- 20 mm fabric dome tweeter.
- 130 mm fibreglass reinforced polypropylene woofer.
- Tool-free removable magnetic grille.
SPECIFICATIONS
- Frequency Response: 40 – 25,000 Hz
- Nominal Impedance: 6 Ω (minimum 6.3 Ω @ 1900 Hz)
- Sensitivity: 87 dB (2.83 V/m)
- Crossover Frequency: 2,200 Hz
- Recommended Amplifier Power: 20 – 120 W
- Power Handling: 50 W Nominal / 70 W Peak
- Dimensions: 205 × 84 mm
- Weight: 1 kg
IN THE BOX
- ELAC IC-1005 In-Ceiling Speaker
- Limited Manufacturer Warranty
