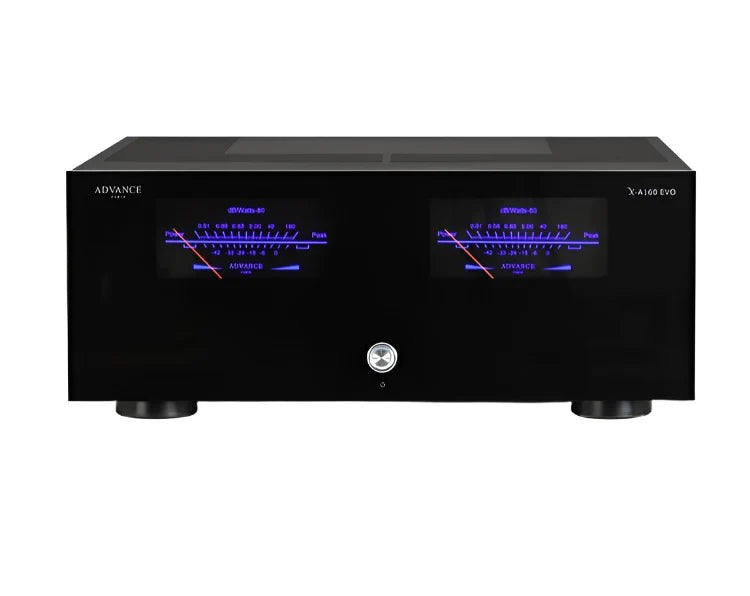

Advance Paris X-A160 EVO Stereo Power Amplifier

X-A160 EVO

New schematics, power transistors identical to the MAA 1000, new power supply, more power, more music, more modern presentation - that's the X-A160EVO.

New schematics, power transistors identical to the MAA 1000, new power supply, more power, more music, more modern presentation - that's the X-A160EVO.

The X-A160EVO amplifier features an ultra-rigid, compartmentalized chassis for effective shielding, eliminating any risk of radiation between the device's various circuits.

The use of "Audiophile" components guarantees the reproduction of your favorite music with finesse and subtlety.

The MAA 1000's high-power supply, combined with "very high current" power transistors (NJW0281G - NJW0302G), delivers the most demanding dynamics.

The X-A160EVO delivers 160 W per channel in class AB*, and a switch on the rear of the unit enables the X-A160EVO to deliver the first Watts in class A*. Above this power level, it switches automatically to class AB**.

Specifications

·         Output power 8Ω -2 x 160 W RMS

·         Output power 4Ω -2 x 240 W RMS

·         Bandwidth -10 Hz - 80 kHz

·         Distortion -< 0.07%

·         Signal-to-noise ratio -> 120 dB

·         Channel separation -> 80 dB

·         Input impedance Unbalanced  - 20 KΩ

·         Input impedance Balanced -38 KΩ

·         Mains voltage  - 115-230V

·         Standby power consumption -< 0,5W

·         Max. power consumption -500W

·         Transformer power - 700W

·         Transformer -Toroidal

·         Height - 160 mm

·         Width -440 mm

·         Depth  - 430 mm

·         Net weight -19 kg

·         Product type -Power block

·         VU-Meter -Yes

In The Box

·         Advance Paris X-A160 EVO Stereo Power Amplifier

·         Limited 1-Year Manufacturer Warranty
