Signature 503
· 3-way shelf-top model for entry into the Signature world
· Hi-Res certified dual tweeter module with two fmax domes
· Three-way speaker with bass reflex technology
· Klippel-optimized bass-midrange unit
· Ventilated voice-coil unit for maximum resilience and dynamics

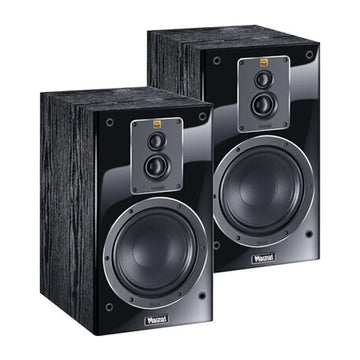

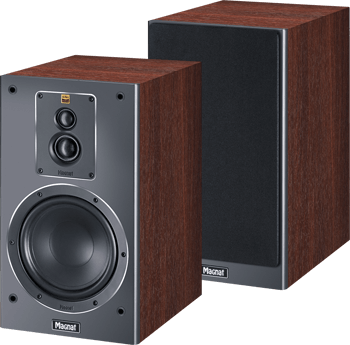

The Signature 503 is, as a shelf-top speaker, the most compact representative of the new 500 range. As a three-way system, it combines the hi-res dual tweeter module with a 17 cm bass-midrange unit. It unites all this in a footprint smaller than an A4 sheet of paper and a height of 365 mm. The sturdy MDF housing is available in two elegant finishes: black ash or mocca. It is just as practical as a
compact stereo solution as it is when using it as a surround sound speaker in a home cinema set-up. Thanks to identical components like the front panel systems, it delivers an absolutely homogeneous soundscape. The Signature 503 is the best proof that perfect sound does not necessarily require huge speakers.
Tweeter & Super-Tweeter
· 30 mm dome tweeter with coupling volume, long-excursion drive and particularly wide surround for especially deep mid-tone coupling
· Front panel with dedicated sound guidance for optimum dispersion properties
· 1.2" dome tweeter with extra-thick surround for low frequency coupling to the midrange
· Additional 20 mm super dome tweeter for ideal omnidirectional sound distribution and extended reproduction up to 50 kHz
· Newly developed high-res tweeter module with two fmax dome tweeters
· Powerful neodymium ring magnet systems for best dynamics
Woofer-midrange
· FE-Dynamics woofer-midrange
· coated paper cone
· Ventilated voice-coil unit for maximum capacity
· Solid metal basket with generous ventilation openings
· Solid decorative rings, fixed by six screws
· Klippel® optimised construction
Cabinet
· Airflex port with rounded reflex opening to minimize annoying resonances
· Removable cloth grille
· Solid low-resonance cabinet construction using E1-MDF panels
· Resonance-damping rubber feet included
· High-gloss lacquered baffle (black version) or satin lacquered baffle (mocca version)
Specifications
· Principle -3 way bass reflex
· Drivers -1.2" dome-tweeter 0.75" super-tweeter 6.5“ woofer-midrange
· Power Handling (RMS/Max.) -100 / 170 watts
· Sensitivity (2.8V/1m) -91 dB
· Impedance -4 – 8 Ohms
· Frequency Response -32 - 53000 Hz 32 - 53000 Hz
· Crossover Frequencies -2800 Hz / 17500 Hz
· Recommended Amplifier Output -> 20 Watts
· Dimensions (WxHxD) -205 x 365 x 282 mm
IN THE BOX
· Magnat Signature 503 - 3 Way Bookshelf Speaker (Pair)
· Limited 1-Year Manufacturer Warranty
